With Right Hand Slide Door Auto Closure System
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

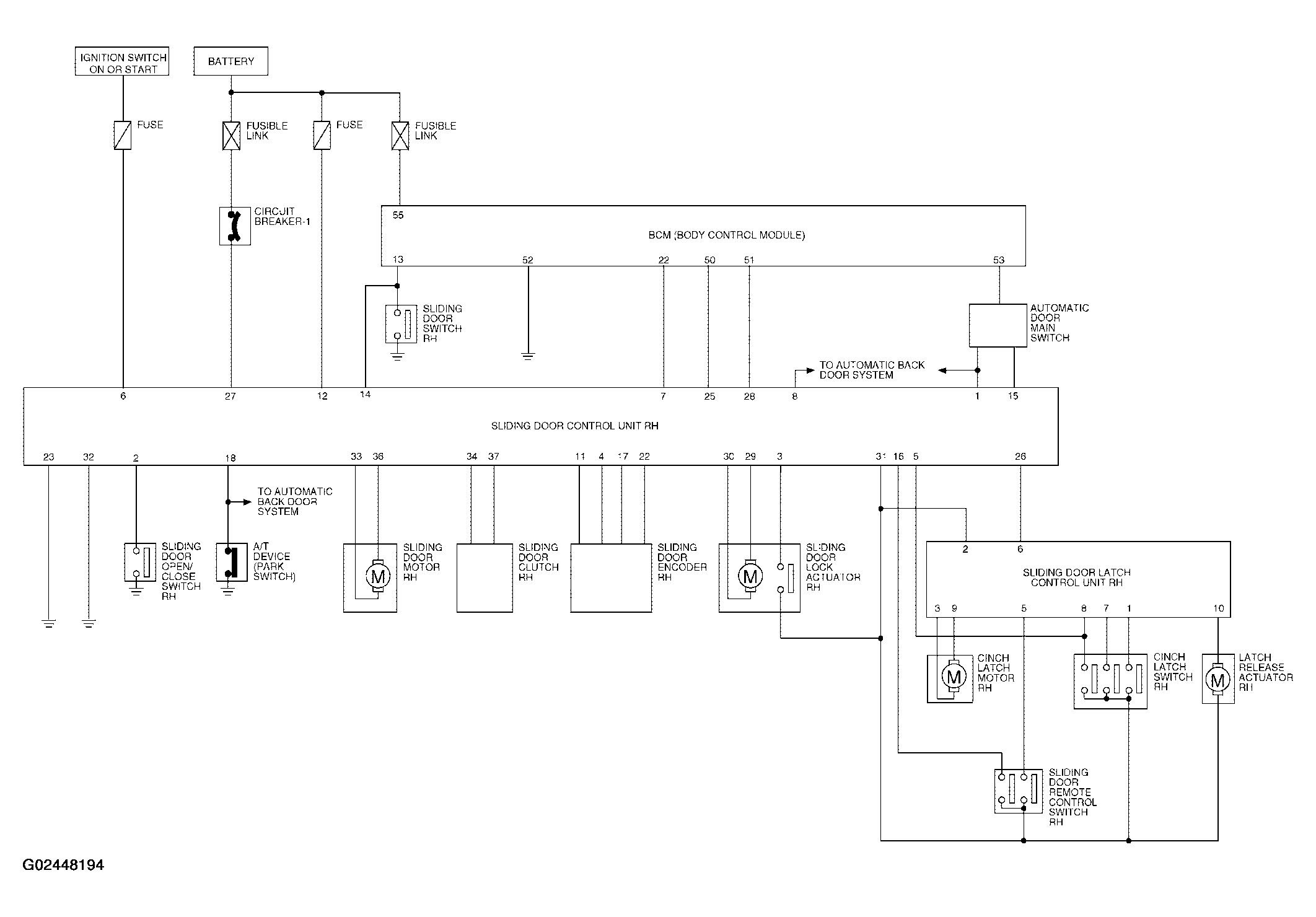

Fig 1: Schematic Diagram - Automatic Sliding Door System With Right Hand
