Heater Control Assembly: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) (See  REMOVAL  )
  3. REMOVE CONSOLE PANEL UPPER FRONT (See  REMOVAL  )
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. Detach the 9 claws.
      NOTE: If the heater control is removed with the cover open, it may be broken. Be sure the cover is closed when removing it.
    2. Disconnect the connector, then remove the heater control.

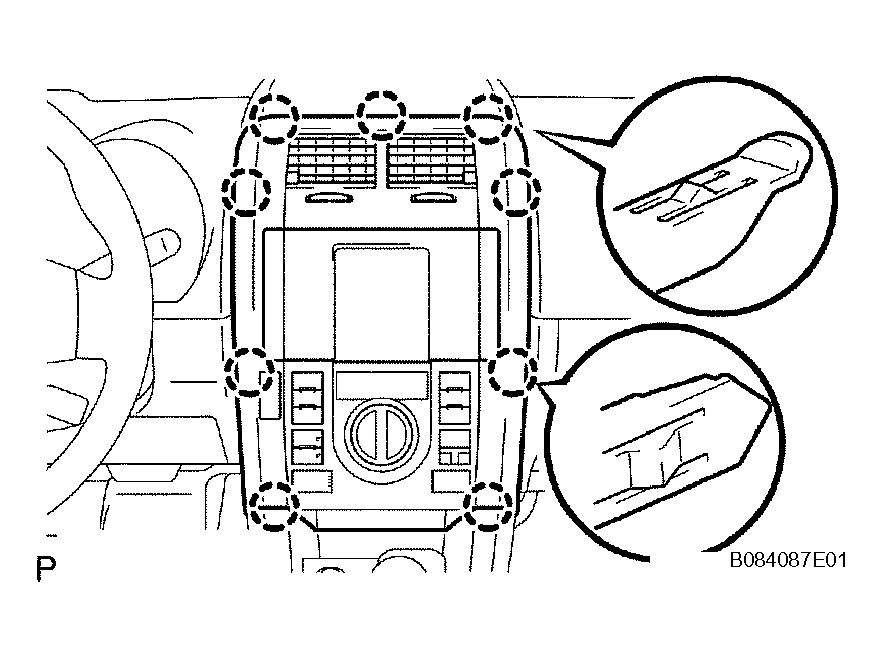

    Fig 1: Detaching Claws
    G04223638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
