Drive Side Power Window Motor Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector and ground.

  Fig 1: Power Window Main Switch Connector And Ground Voltage Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

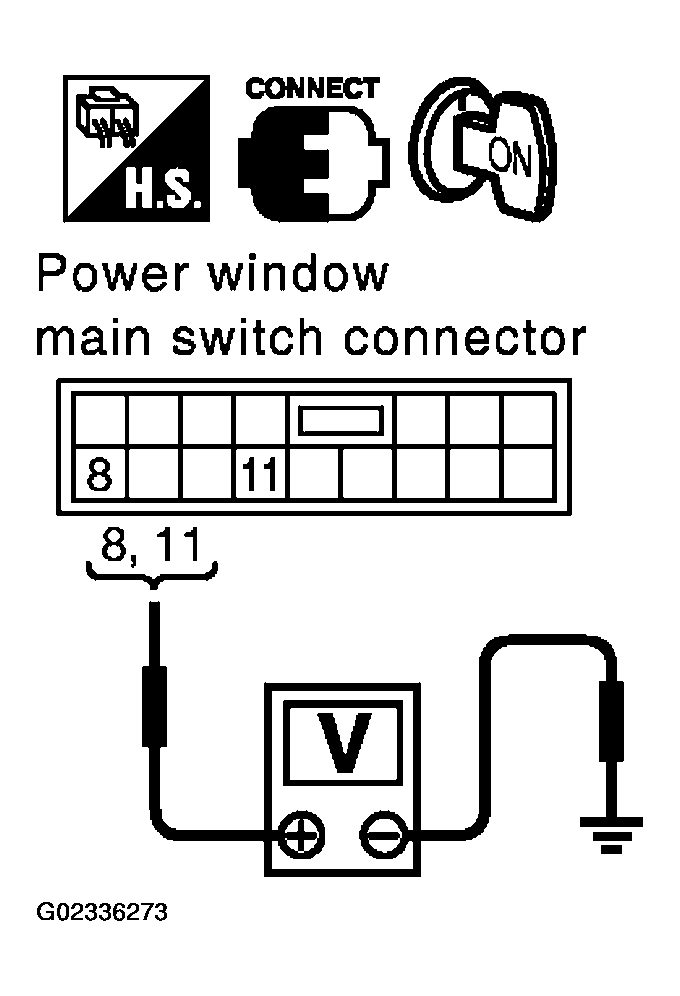

Fig 2: Checking Voltage Between Power Window Main Switch Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
1. OK: GO TO 2.
2. NG: Replace power window main switch.
CHECK POWER WINDOW MOTOR (DRIVER SIDE) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch and driver side power window motor connector.
3. Check continuity between power window main switch connector D7 terminals 8, 11 and driver side power window motor connector D9 terminals 1, 2.
  8 (L) - 2 (L): Continuity should exist.

  11 (G) - 1 (G): Continuity should exist.
OK or NG
1. OK: Replace driver side power window motor.
2. NG: Repair or replace harness.
Fig 3: Checking Continuity Between Power Window Main Switch Connector D7 Terminals And Driver Side Power Window Motor Connector D9 Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
