Removal And Installation Of GPS Antenna: Removal

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trunk front finisher, and disconnect GPS antenna harness connector. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER ".
  2. Remove rear parcel shelf finisher. Refer to "REAR PARCEL SHELF FINISHER ".
  3. Remove screws (2), and remove GPS antenna.

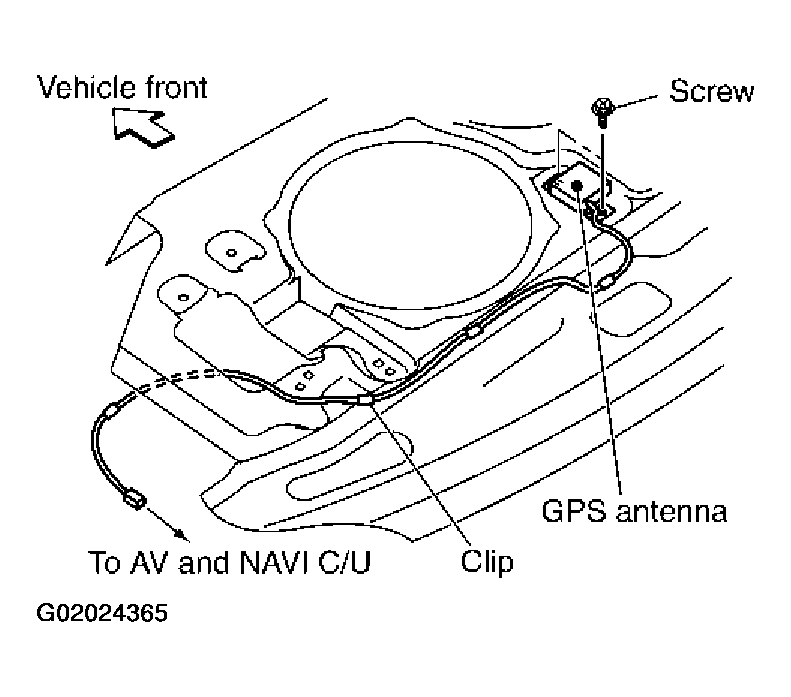

    Fig 1: Removing GPS Antenna
    G02024365Courtesy of NISSAN MOTOR CO., U.S.A.
