Component Description

The intake air temperature sensor is built into mass air flow sensor. The sensor detects intake air temperature and transmits a signal to the ECM.

The temperature sensing unit uses a thermistor which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response to the temperature rise.

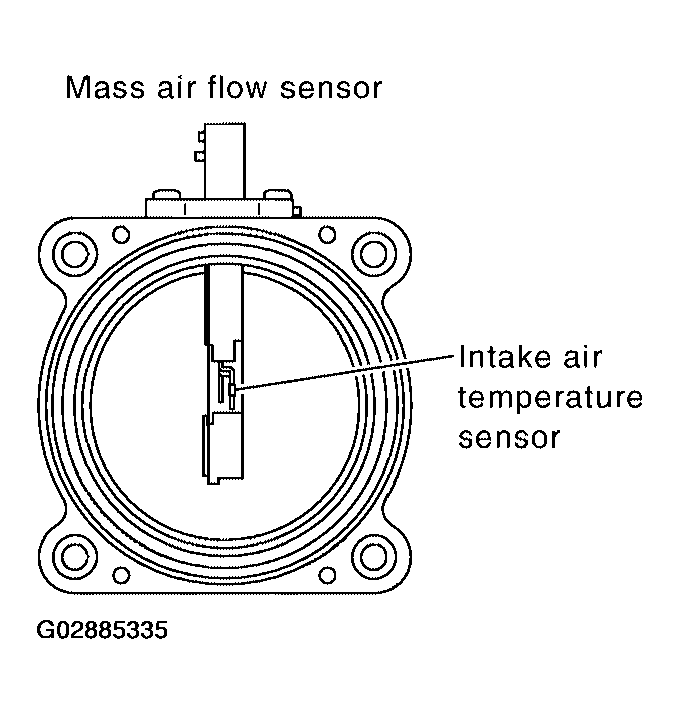

Fig 1: Identifying Mass Air Flow Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

REFERENCE DATA

Intake air temperature °C (°F)

Voltage⁽¹⁾ V

Resistance kΩ

25 (77)

3.32

1.94 - 2.06

80 (176)

1.23

0.295 - 0.349

⁽¹⁾	These data are reference values and are measured between ECM terminal 66 (Intake air temperature sensor) and ground.

Fig 2: Temperature And Resistance Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
