Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two engine ground screws. Refer to "GROUND INSPECTION ".
OK or NG
1. OK : GO TO 2.
2. NG : Repair or replace ground connections.

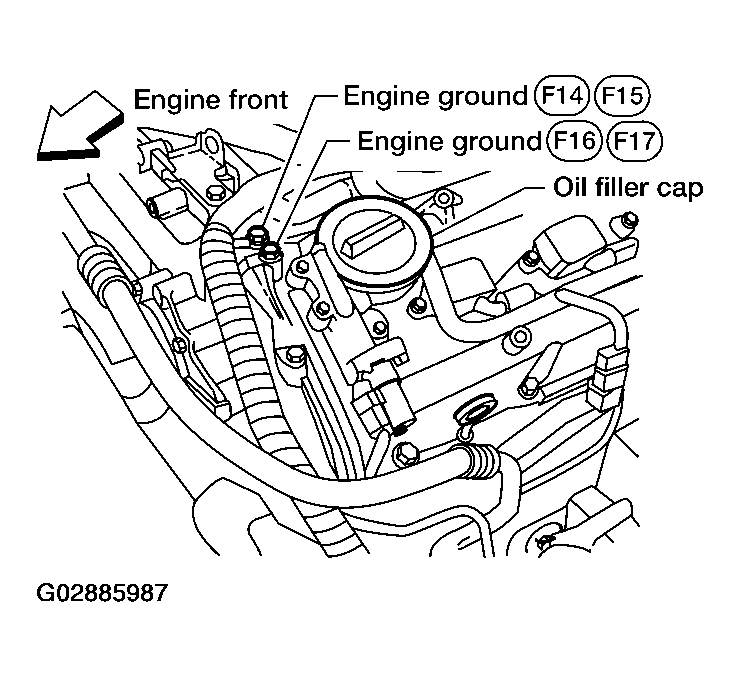

  Fig 1: Checking Engine Ground Connections
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.

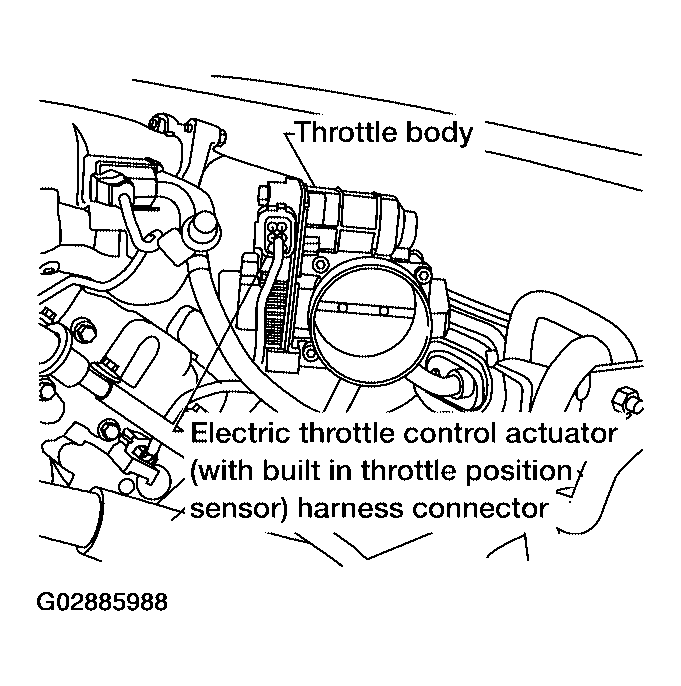

  Fig 2: Disconnecting Electric Throttle Control Actuator Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-II or tester.
  Voltage: Approximately 5V
OK or NG
1. OK : GO TO 3.
2. NG : Repair open circuit or short to ground or short to power in harness or connectors.

  Fig 3: Checking Voltage Between Electric Throttle Control Actuator Terminal 1 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 58, electric throttle control actuator terminal 5 and TCM terminal 42. Refer to Wiring Diagram .
  Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
1. OK : GO TO 5.
2. NG : GO TO 4.
DETECT MALFUNCTIONING PART
Check the following.
- Harness for open or short between electric throttle control actuator and ECM
- Harness for open or short between electric throttle control actuator and TCM
1. : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 83 and electric throttle control actuator terminal 4, ECM terminal 84 and electric throttle control actuator terminal 2.
  Refer to Wiring Diagram .

  Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG
1. OK : GO TO 6.
2. NG : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK THROTTLE POSITION SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK : GO TO 8.
2. NG : GO TO 7.
REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
3. Perform "IDLE AIR VOLUME LEARNING ".
1. : INSPECTION END
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
1. : INSPECTION END
