Data Link Connector: Wiring Diagram

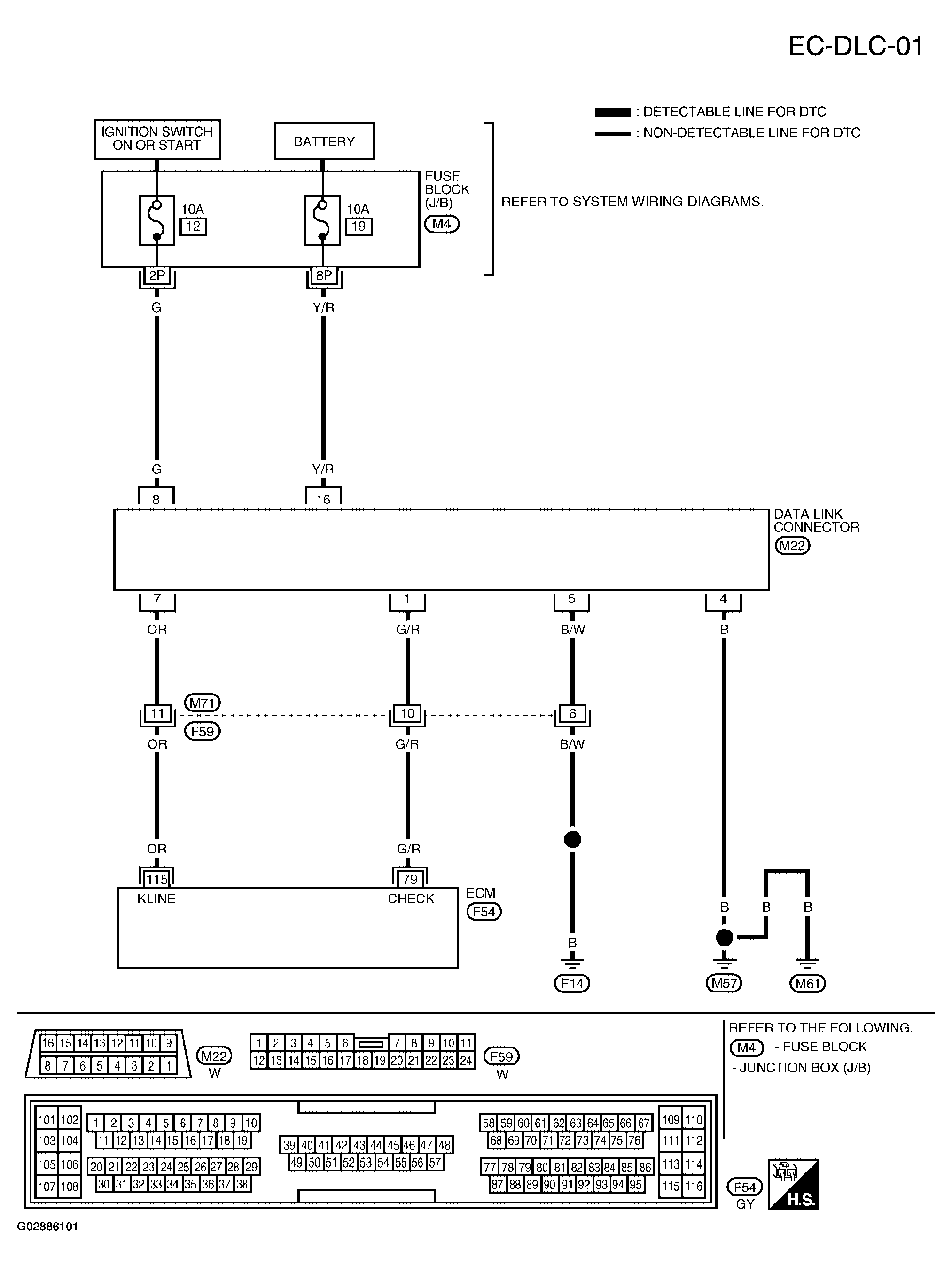

Fig 1: Wiring Diagram - EC-DLC-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
