2-Wheel Drive

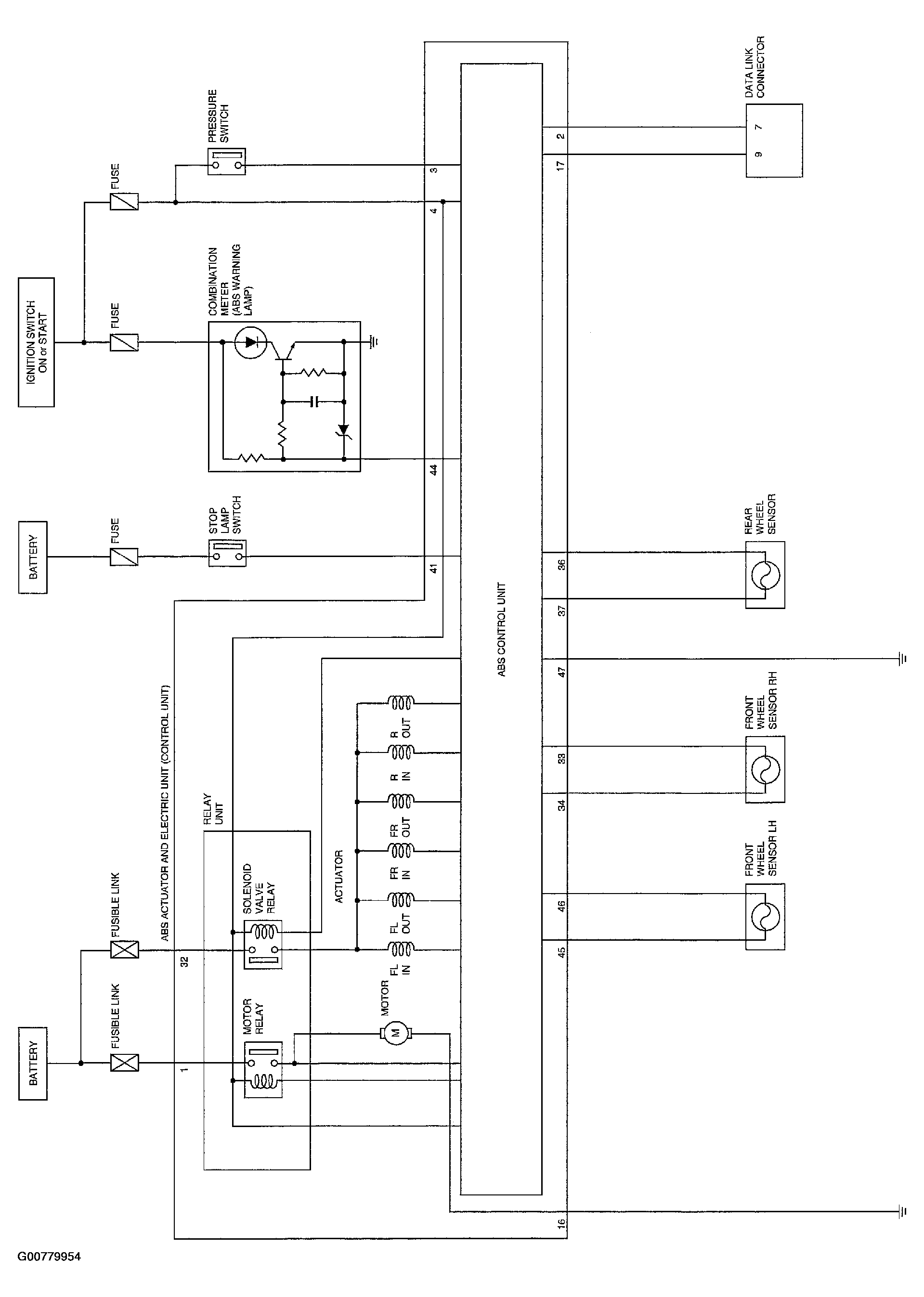

Fig 1: 2-Wheel Drive Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
