Fuel Pressure Check

WARNING: This page is about a different variant/trim than selected.

Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.

NOTE:

Use Fuel Pressure Gauge Kit J-44321 to check fuel pressure.
Do not perform fuel pressure check with electrical system operating (i.e. lights, A/C etc.). Fuel pressure gauge may indicate false readings due to varying engine loads and changes in manifold vacuum.

Release fuel pressure to zero.
Install the inline fuel quick disconnect fitting between the connection of the fuel feed hose (from tank) and the fuel hose (to engine).
Connect the fuel pressure test gauge (quick connect adapter hose) to the quick disconnect fitting.
Turn ignition switch ON and check for fuel leakage.
Start engine and check for fuel leakage.
Read the indication of fuel pressure gauge.
1. At idling:
2. With vacuum hose connected Approximately 235 kPa (2.4 kg/cm ², 34 psi)
3. With vacuum hose disconnected Approximately 294 kPa (3.0 kg/cm ², 43 psi)

If results are unsatisfactory, perform Fuel Pressure Regulator Check.

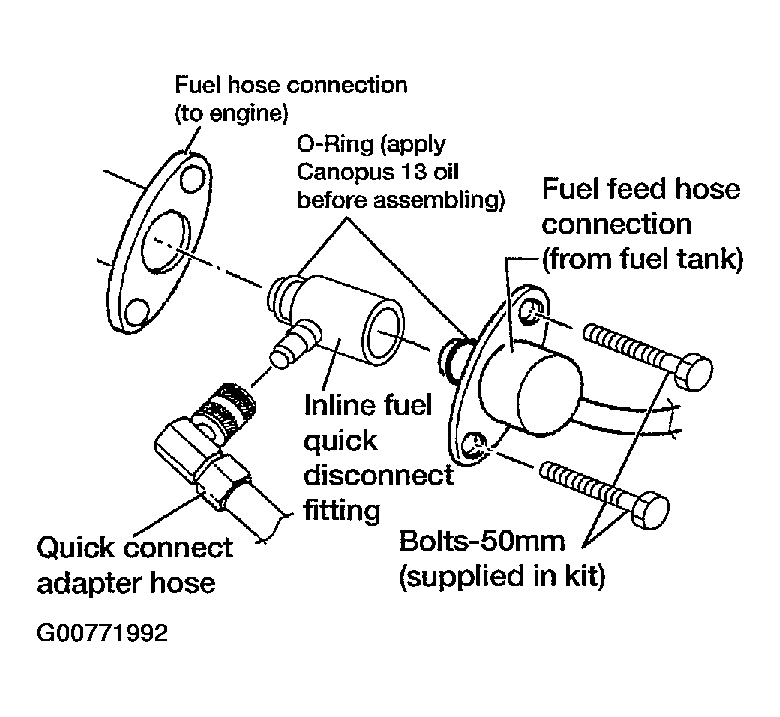

Fig 1: Identifying Fuel Hose Connection

Courtesy of NISSAN MOTOR CO., U.S.A.
