With CONSULT-II

  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Shift selector lever to D position (A/T) or 1st position (M/T), and wait at least 3 seconds.
  4. Shift selector lever to P position (A/T) or Neutral position (M/T).
  5. Turn ignition switch OFF and wait at least 10 seconds.
  6. Turn ignition switch ON and wait at least 1 second.
  7. Shift selector lever to D position (A/T) or 1st position (M/T), and wait at least 3 seconds.

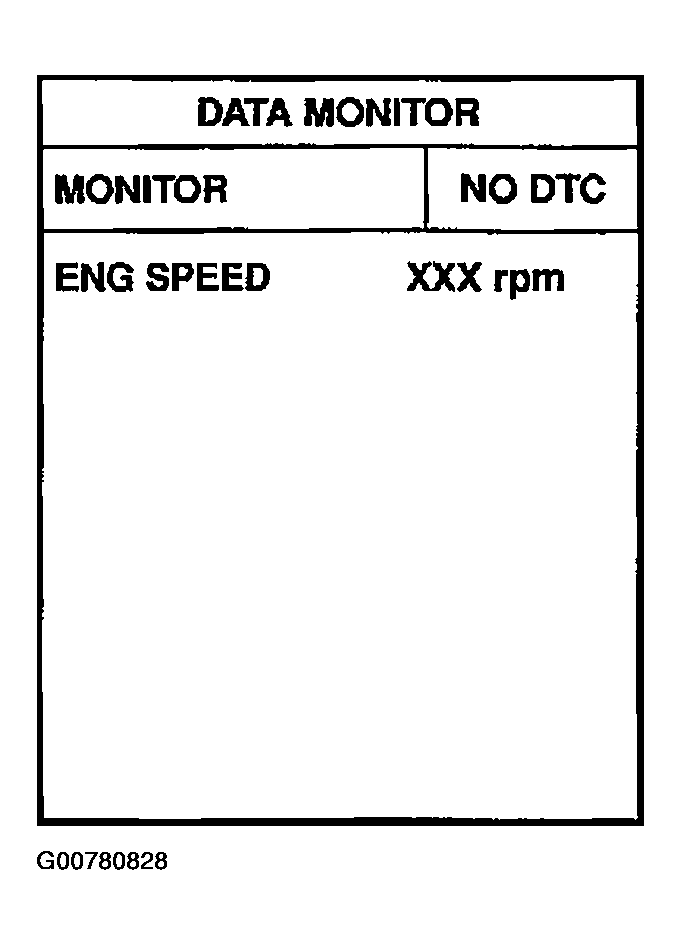

    Fig 1: Data Monitor Display
    G00780828Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Shift selector lever to P position (A/T) or Neutral position (M/T).
  9. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
  10. If DTC is detected, GO TO "DIAGNOSTIC PROCEDURE  " .
