Fail-Safe Mode

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

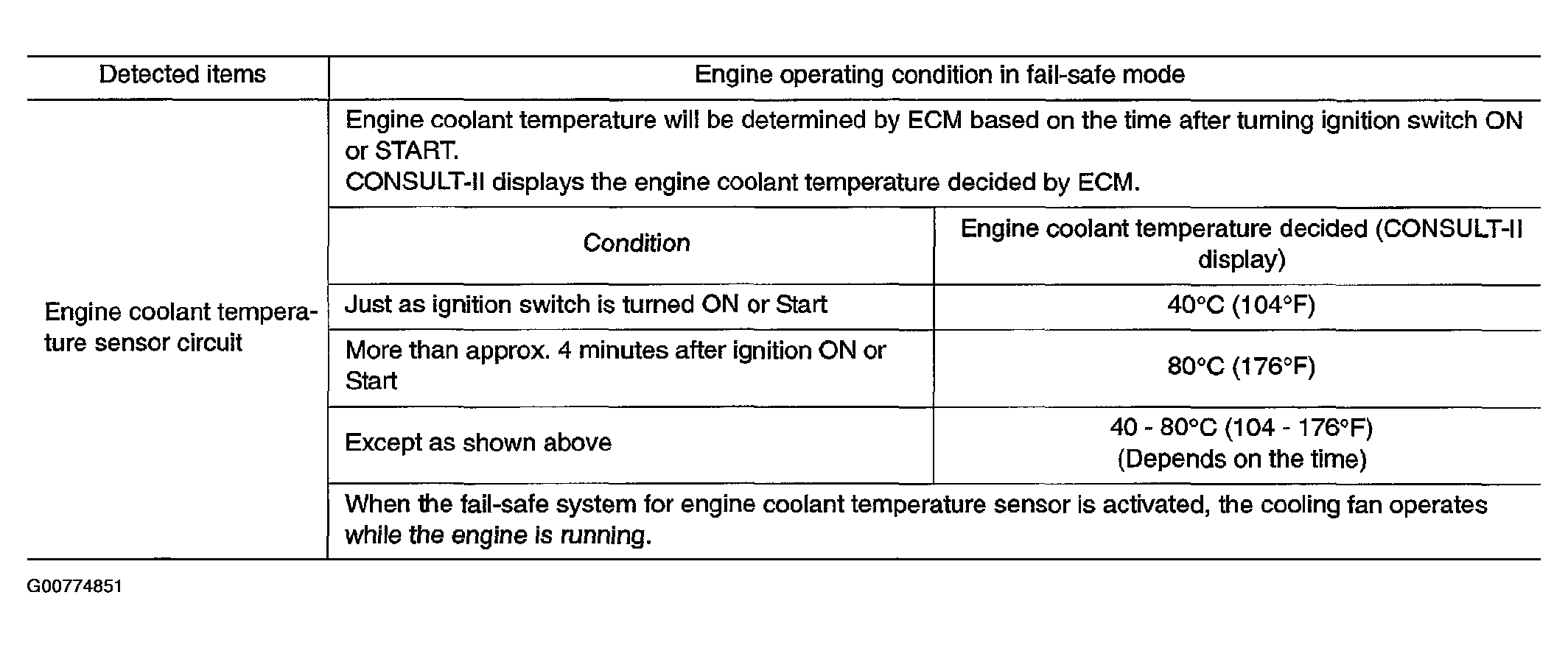

Fig 1: Fail-Safe Mode Chart
G00774851Courtesy of NISSAN MOTOR CO., U.S.A.
