Smart Entrance Control Unit Terminals And Reference Value Measured Between Each Terminal And Ground

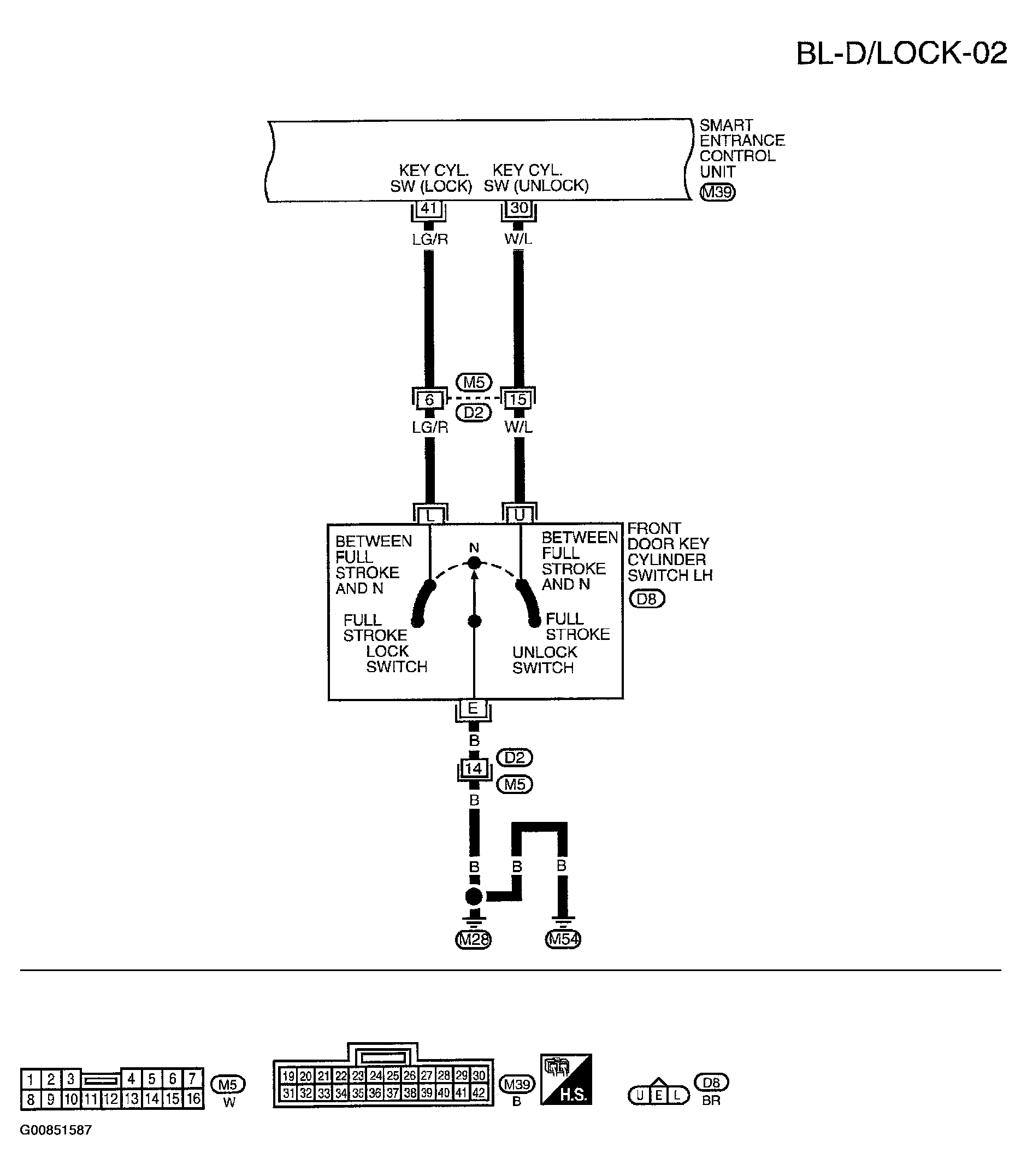

Fig 1: Wiring Diagram - BL-D/LOCK-02

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Wiring Color Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

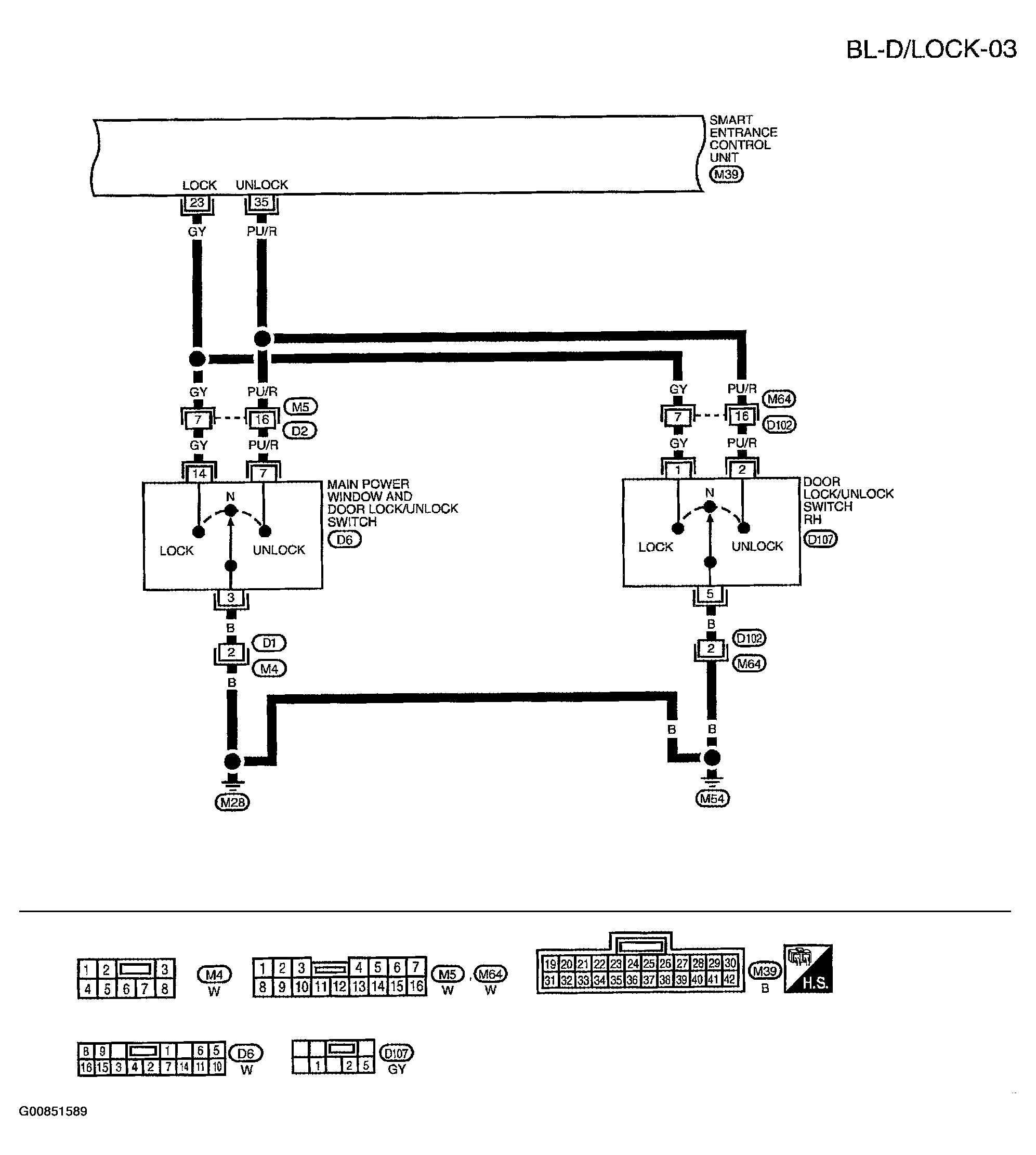

Fig 1: Wiring Diagram - BL-D/LOCK-03

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Wiring Color Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 1: Wiring Diagram - BL-D/LOCK-04

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Wiring Color Condition

Courtesy of NISSAN MOTOR CO., U.S.A.

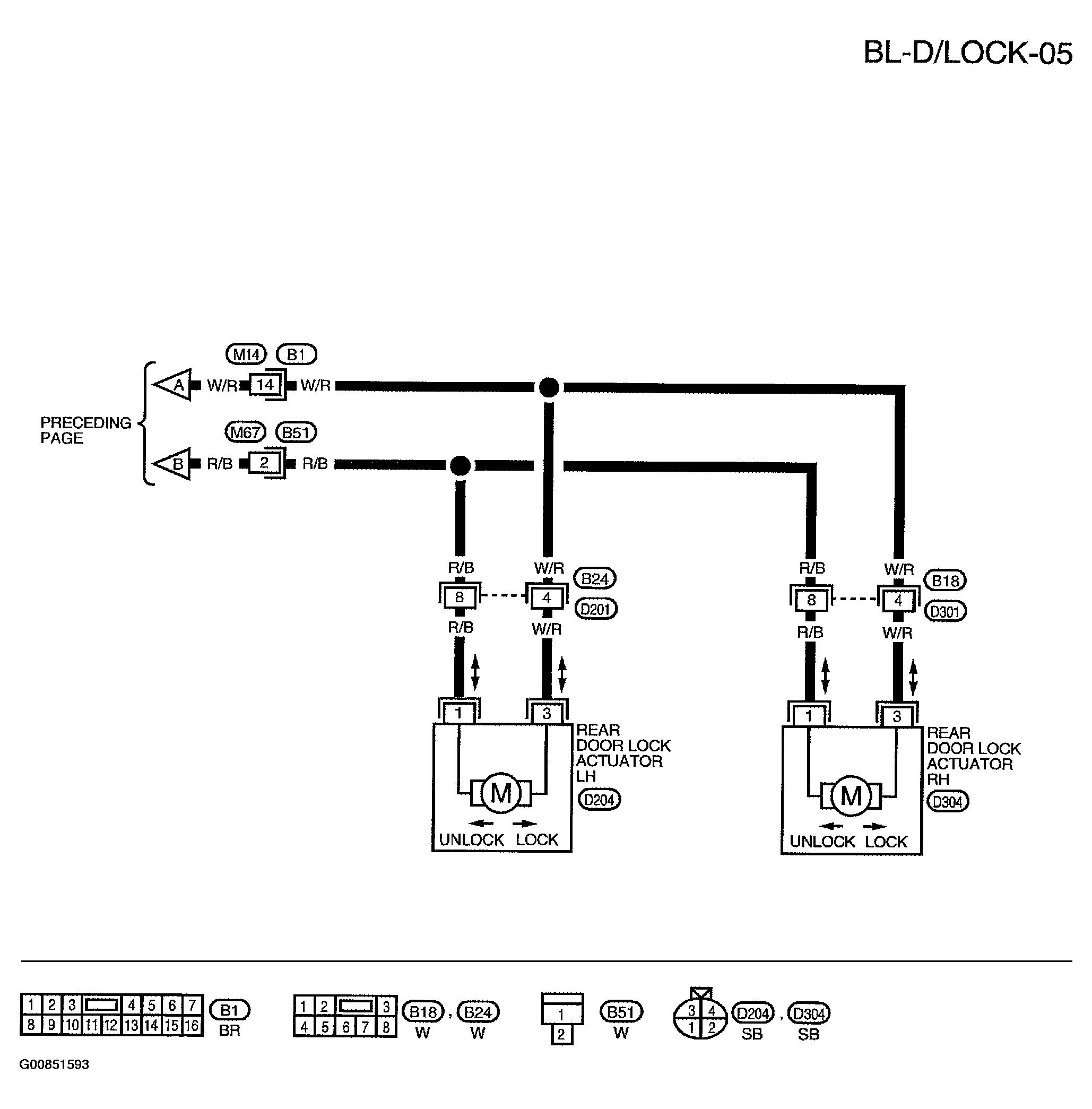

Fig 1: Wiring Diagram - BL-D/LOCK-05

Courtesy of NISSAN MOTOR CO., U.S.A.
