Removal and Installation for AV Switch

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".

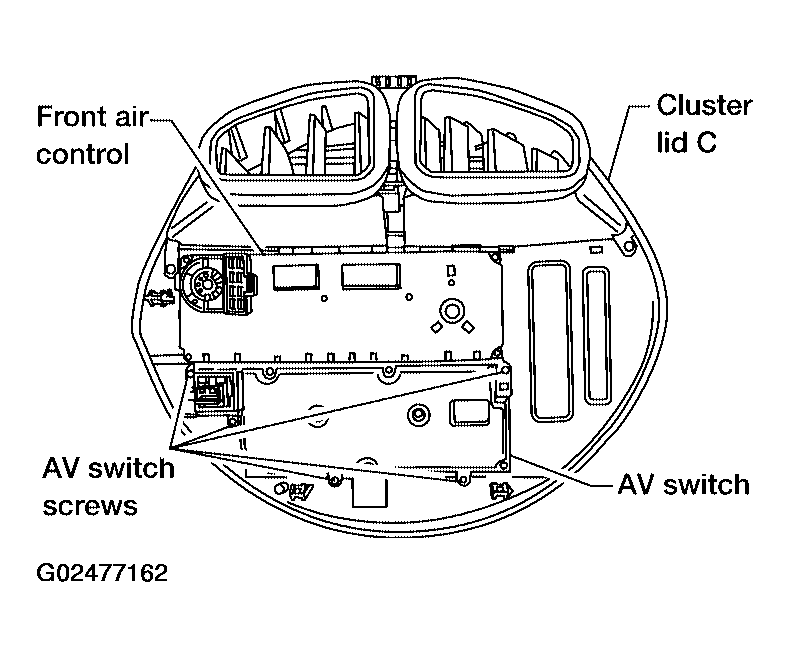

    Fig 1: Removing Cluster Lid C
    G02477162Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the five AV switch screws.
  3. Carefully remove the AV switch.
  4. Installation is in the reverse order of removal.
