Smart Entrance Control Unit And Reference Value Measured Between Each Terminal And Ground

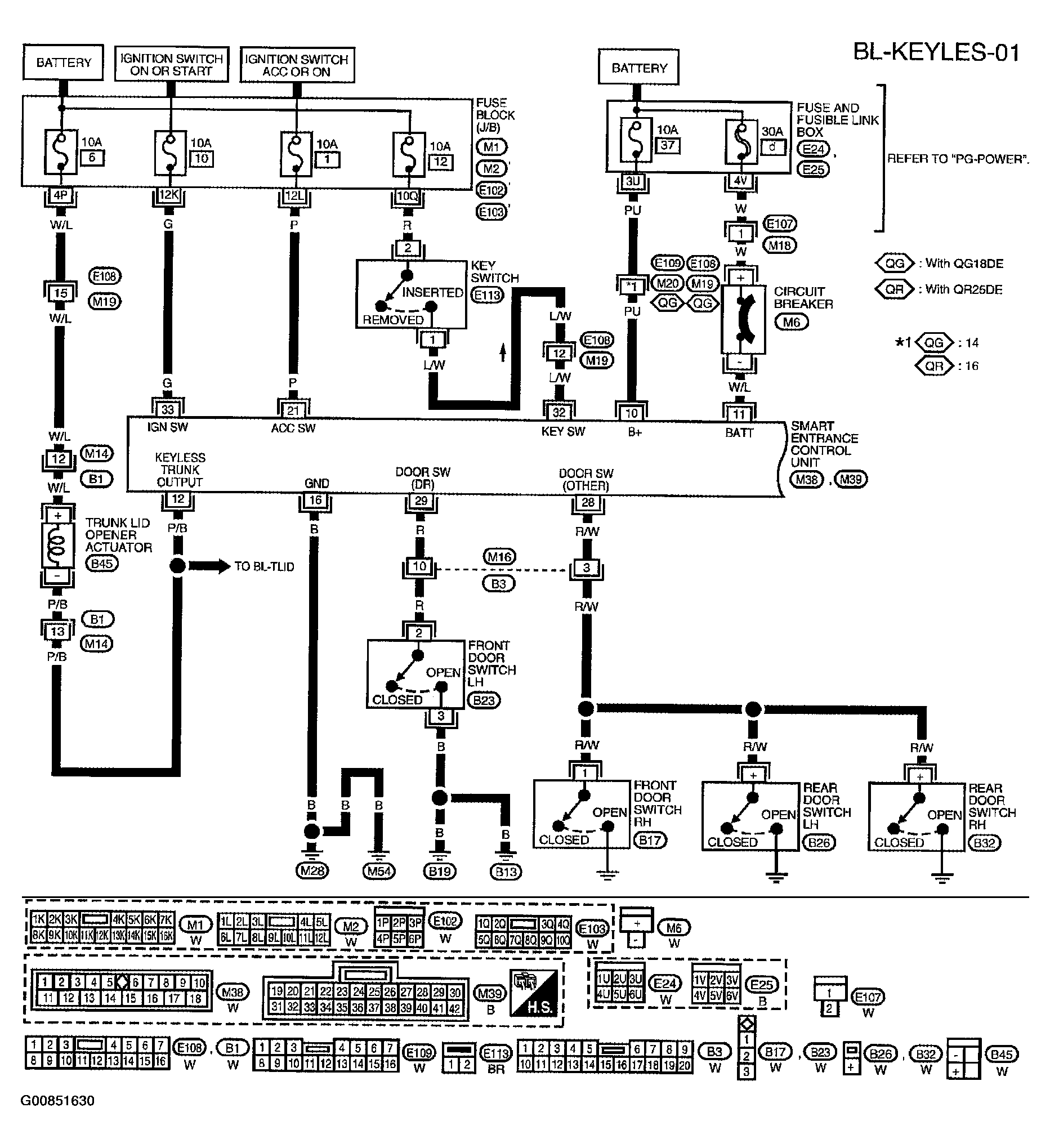

Fig 1: Wiring Diagram - BL-KEYLES-01

Courtesy of NISSAN MOTOR CO., U.S.A.

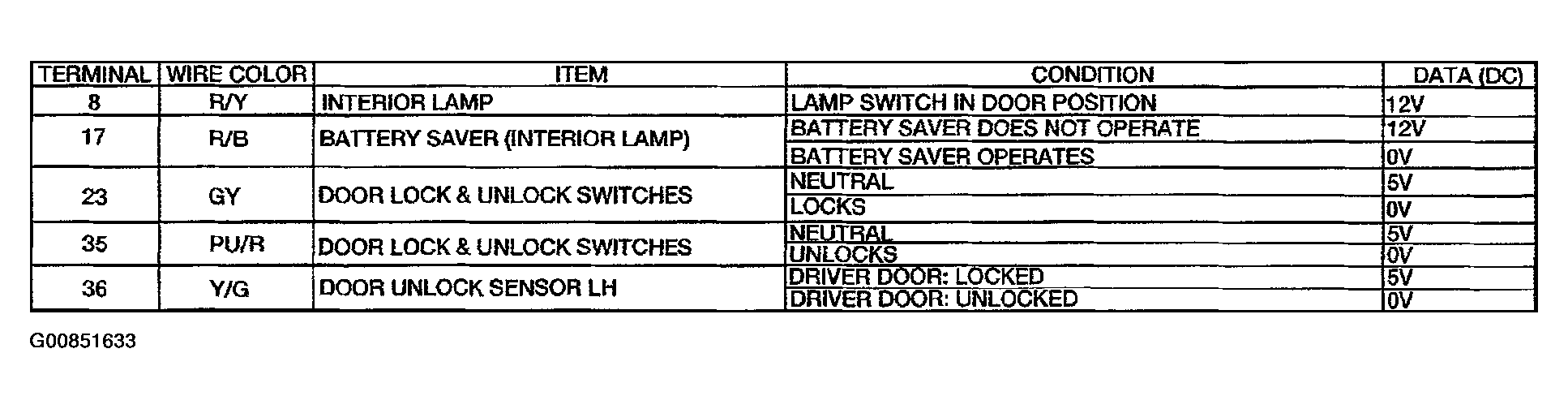

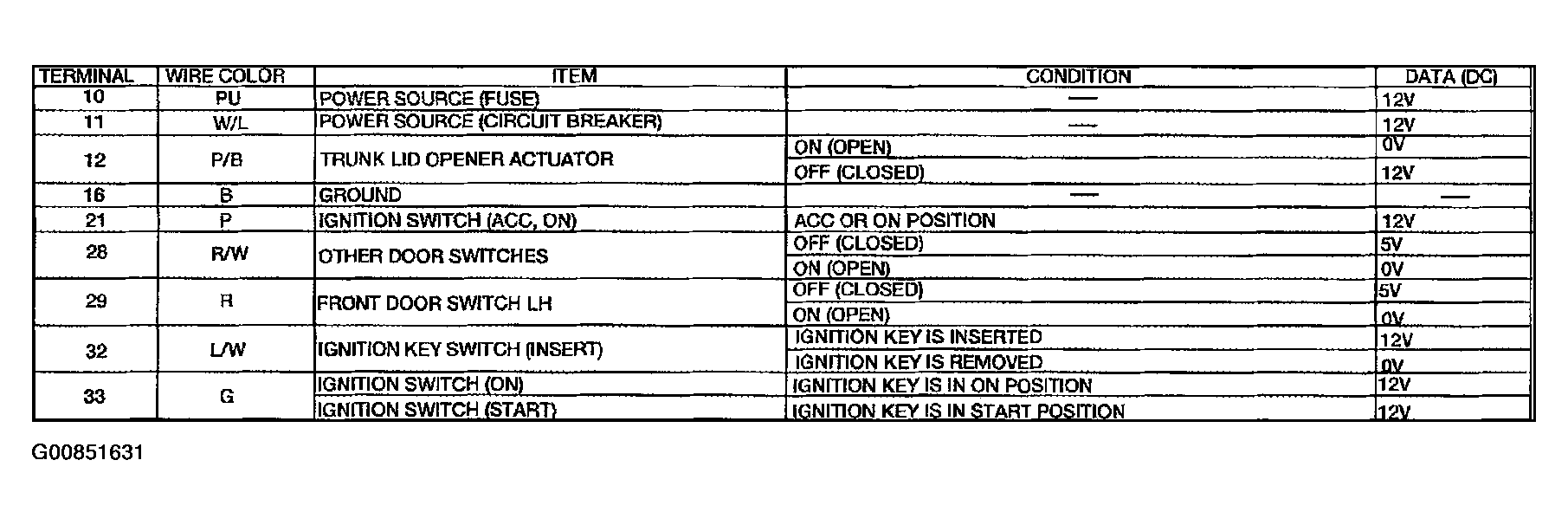

Fig 2: Wiring Color Condition - BL-KEYLES-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Wiring Diagram - BL-KEYLES-02

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Wiring Color Condition - BL-KEYLES-02

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Wiring Diagram - BL-KEYLES-03

Courtesy of NISSAN MOTOR CO., U.S.A.

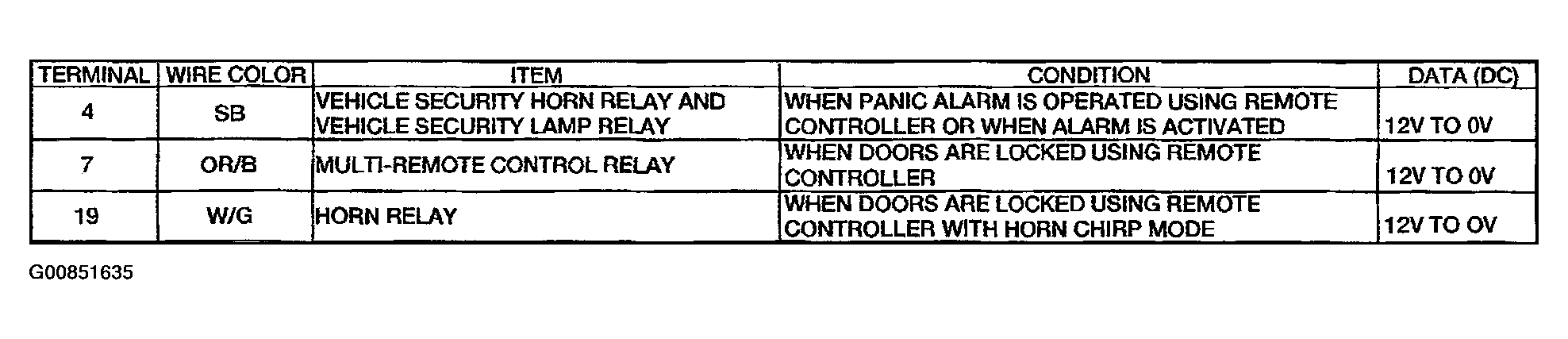

Fig 6: Wiring Color Condition - BL-KEYLES-03

Courtesy of NISSAN MOTOR CO., U.S.A.
