Malfunction Code/Symptom Chart

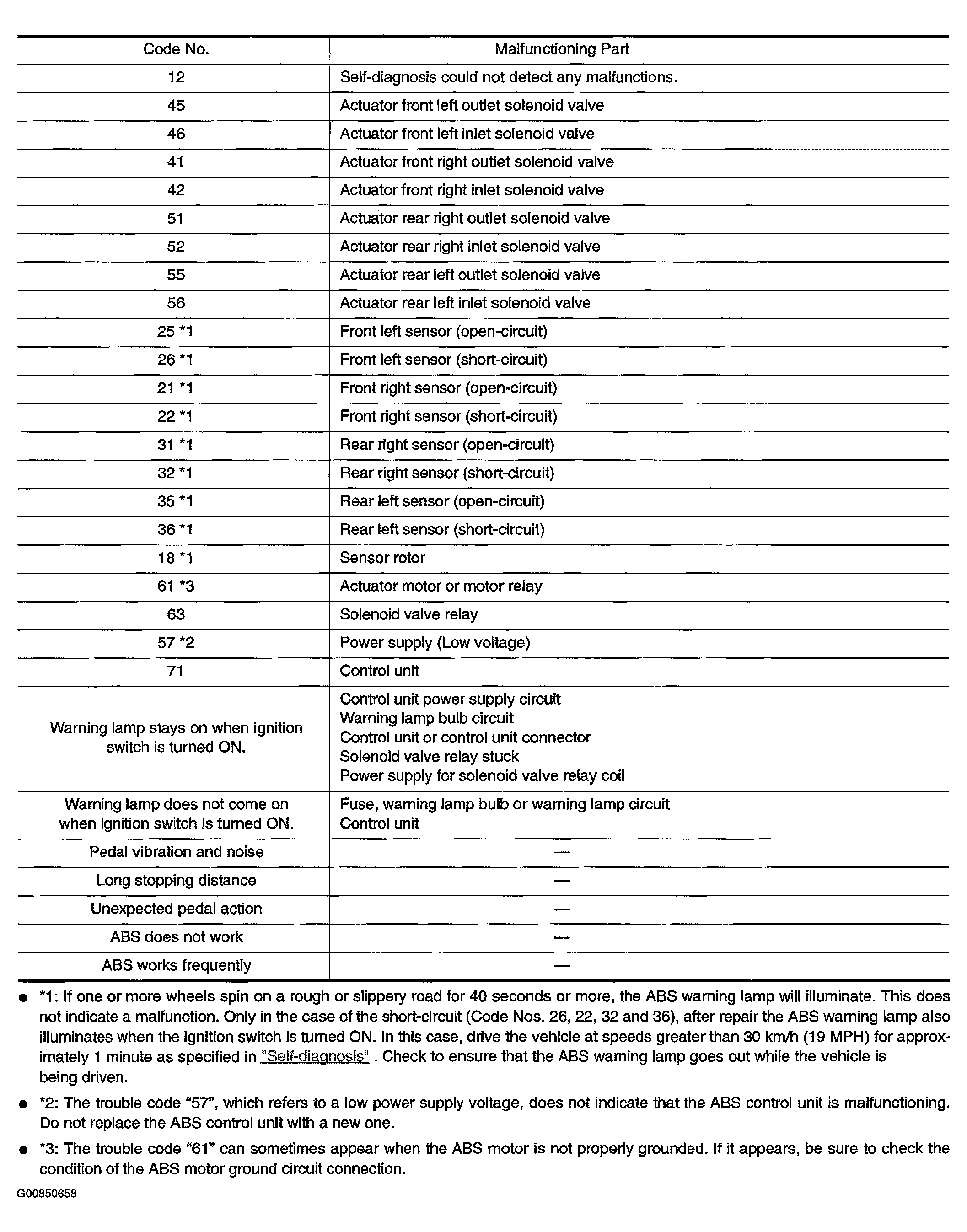

Fig 1: Identifying Malfunction Code/Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
