Circuit Check Between BCM & Abs Actuator & Electric Unit (Control Unit With TCS)

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS .

For circuit check between BCM and ABS actuator and electric unit (control unit with TCS), see Fig 1 -Fig 4 .

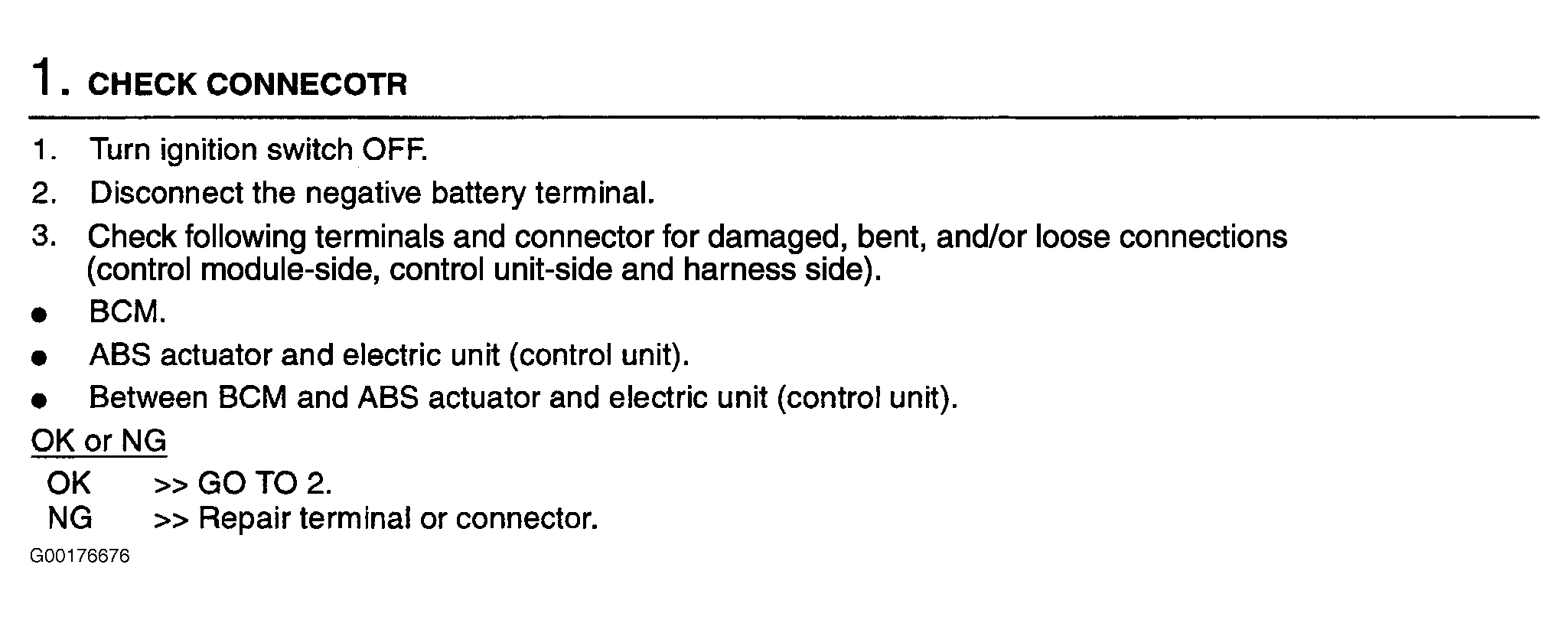

Fig 1: Identifying Circuit Check Between BCM & ABS Actuator & Electric Unit (Control Unit), Step 1 (With TCS)

Courtesy of NISSAN MOTOR CO., U.S.A.

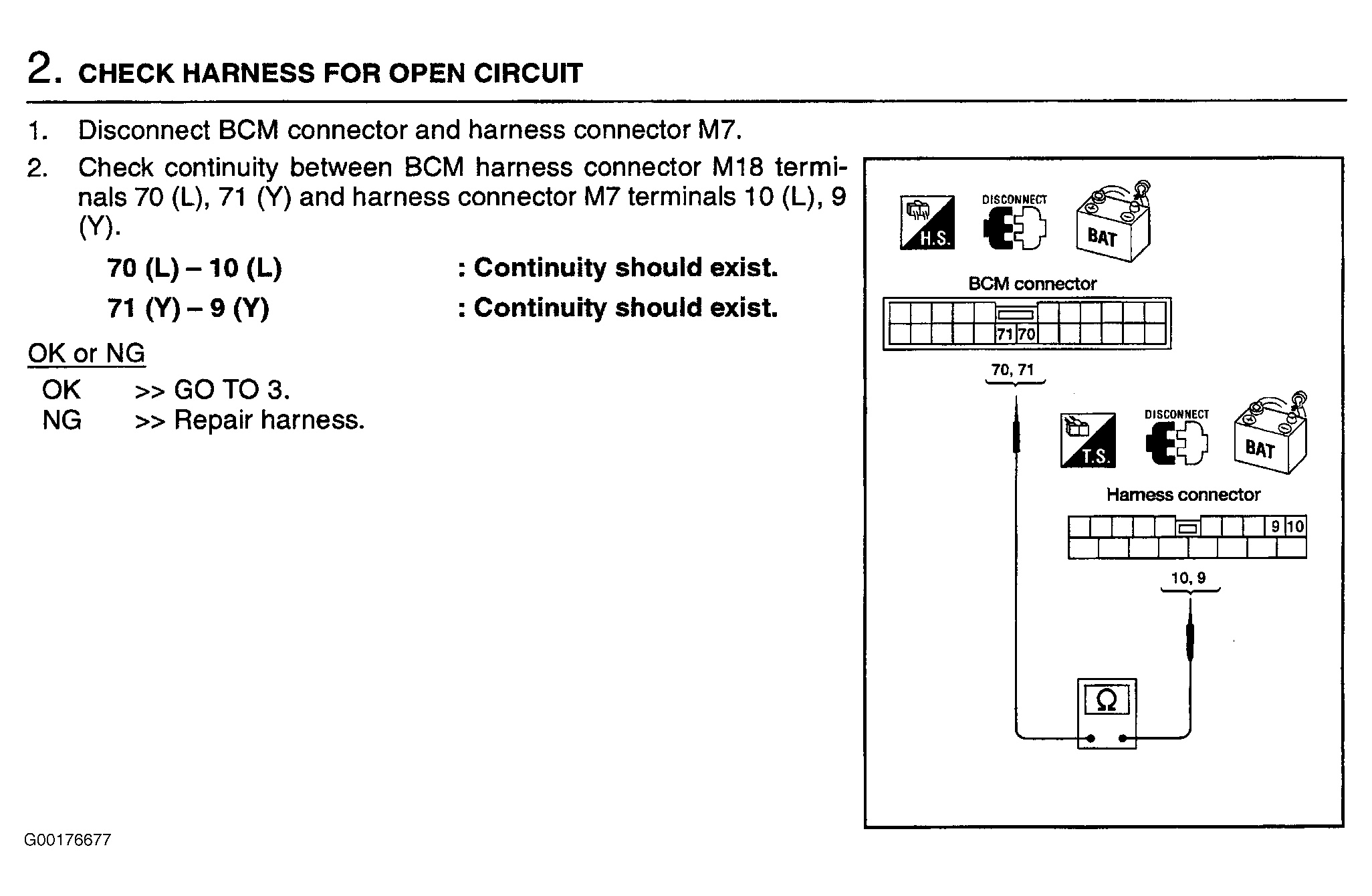

Fig 2: Identifying Circuit Check Between BCM & ABS Actuator & Electric Unit (Control Unit), Step 2 (With TCS)

Courtesy of NISSAN MOTOR CO., U.S.A.

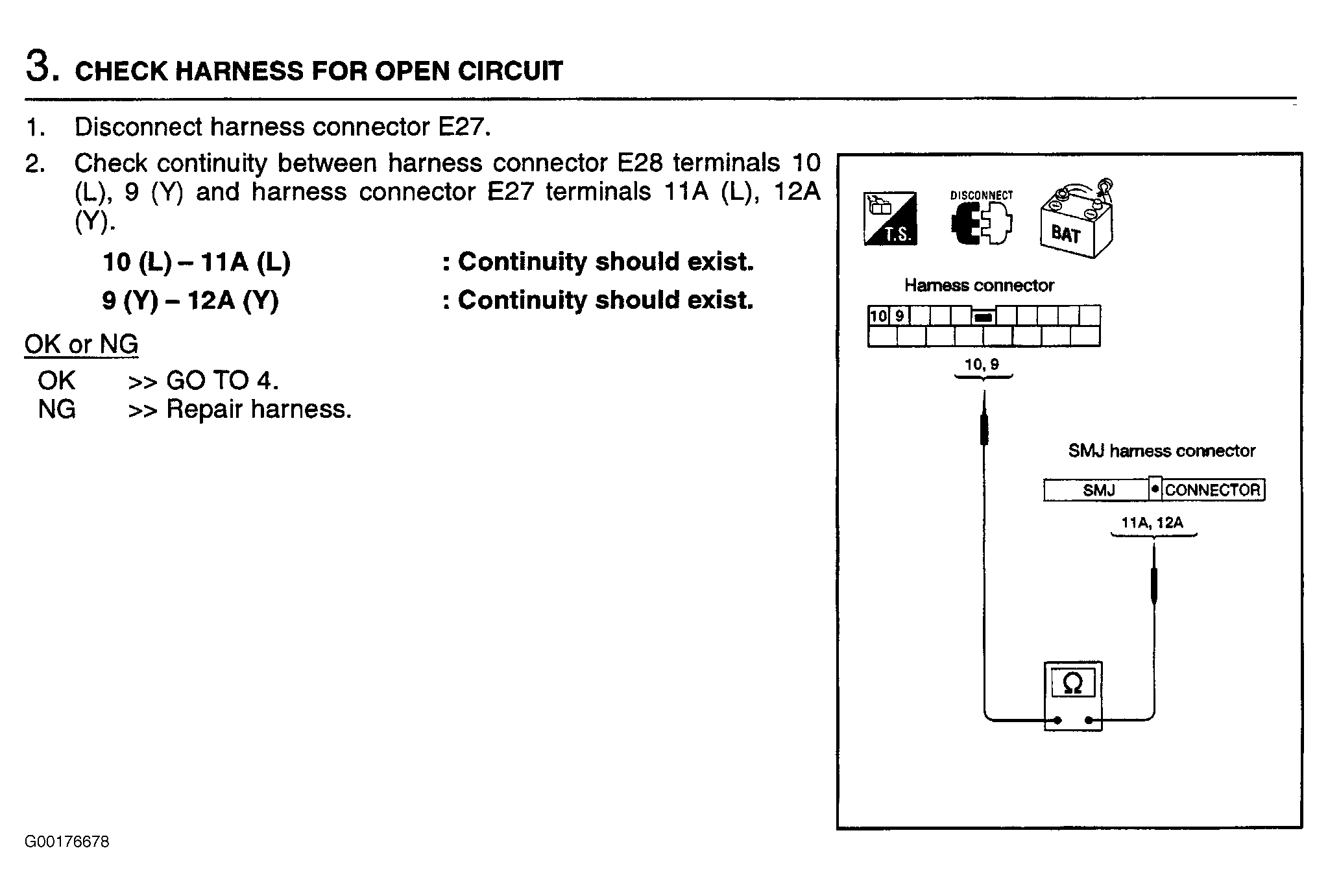

Fig 3: Identifying Circuit Check Between BCM & ABS Actuator & Electric Unit (Control Unit), Step 3 (With TCS)

Courtesy of NISSAN MOTOR CO., U.S.A.

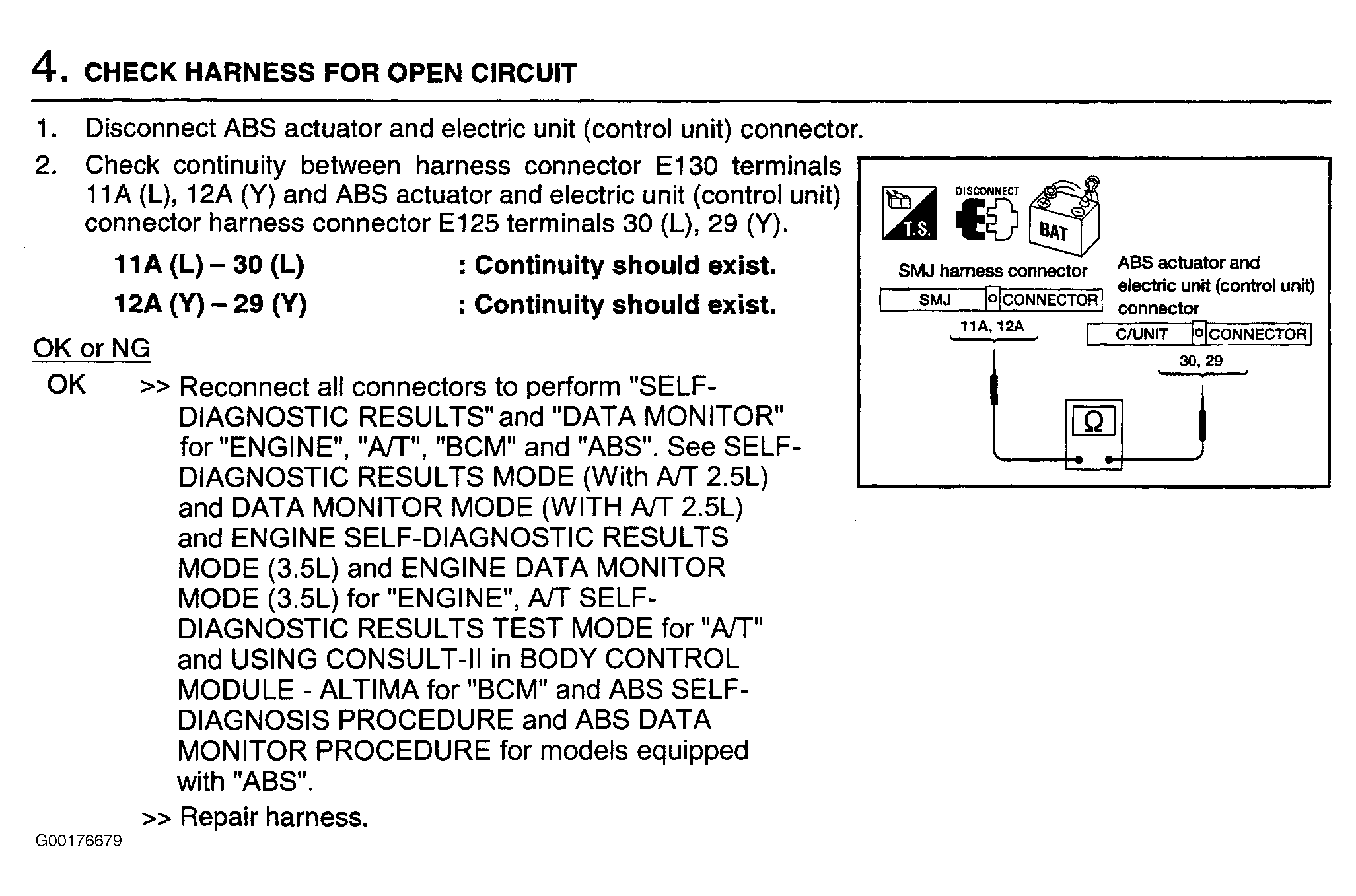

Fig 4: Identifying Circuit Check Between BCM & ABS Actuator & Electric Unit (Control Unit), Step 4 (With TCS)

Courtesy of NISSAN MOTOR CO., U.S.A.
