Operation Mode

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Normal status
    • When BCM is not in sleep status, OUTPUT terminals (1-5) send out ON signal every 10 ms.
  2. Sleep status
    • When BCM is in sleep status, transistors of OUTPUT 1 and 5 stop the output, and BCM enters low power mode. Meanwhile OUTPUT 2, 3, and 4 send out ON signal every 60 ms, and accept only input from light switch system.

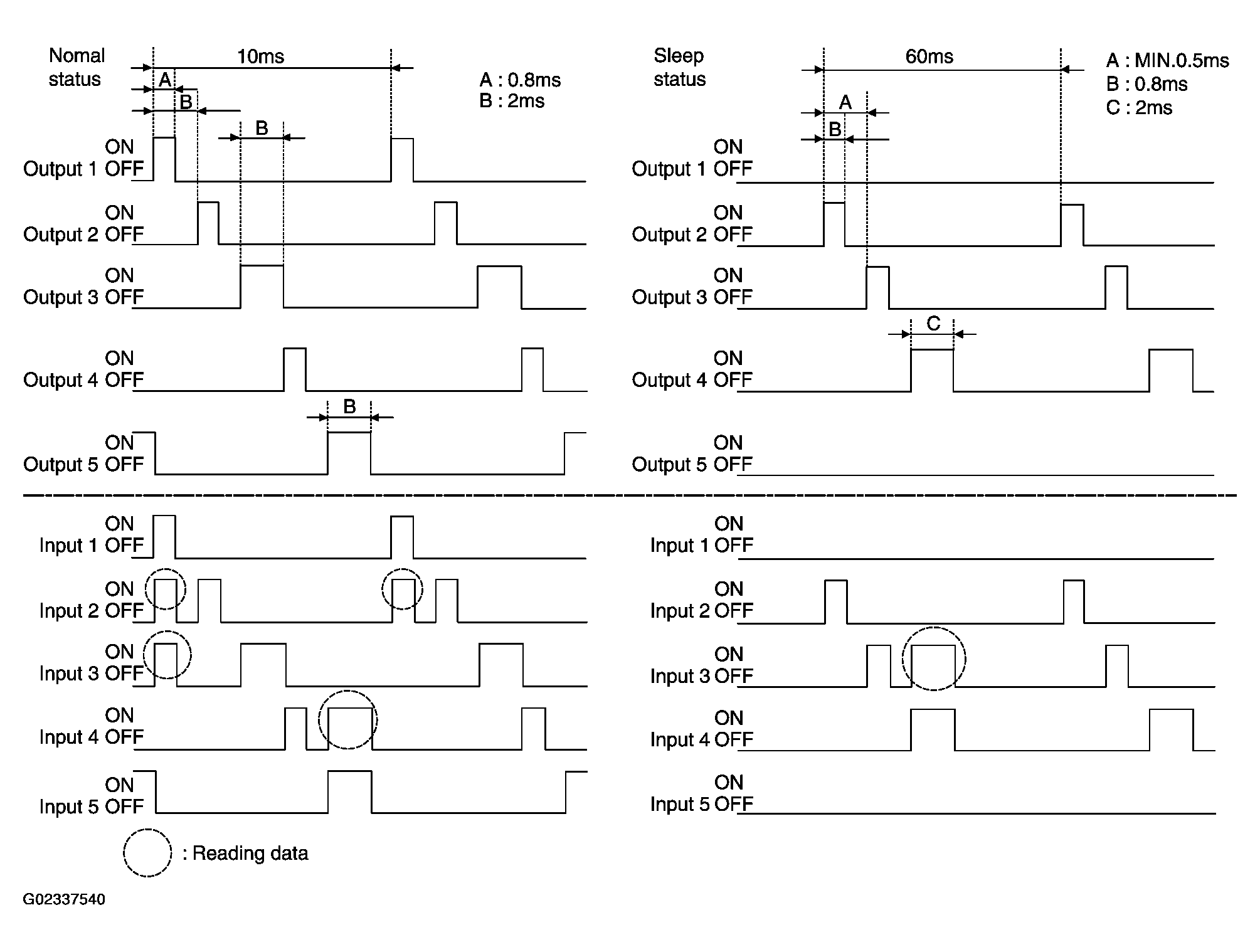

    Fig 1: Identifying BCM Low Power Mode Operation
    G02337540Courtesy of NISSAN MOTOR CO., U.S.A.
