Section 790 (Engine Cooling System - 2.5L)
>>
Overheating Cause Analysis
>>
Troubleshooting Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Troubleshooting Chart
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

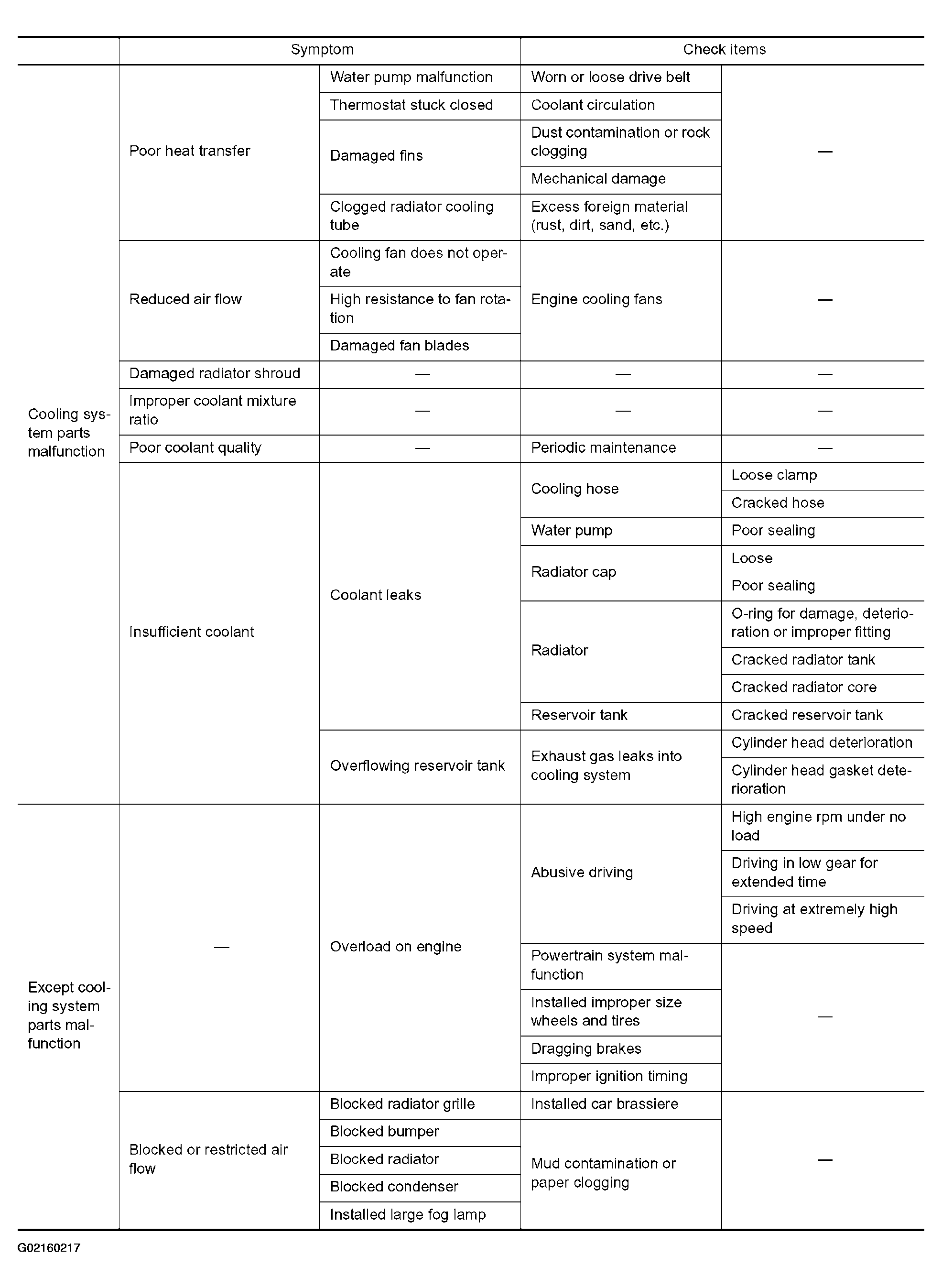

Fig 1: Overheating Cause Analysis Troubleshooting Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
