Shift Fork

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.

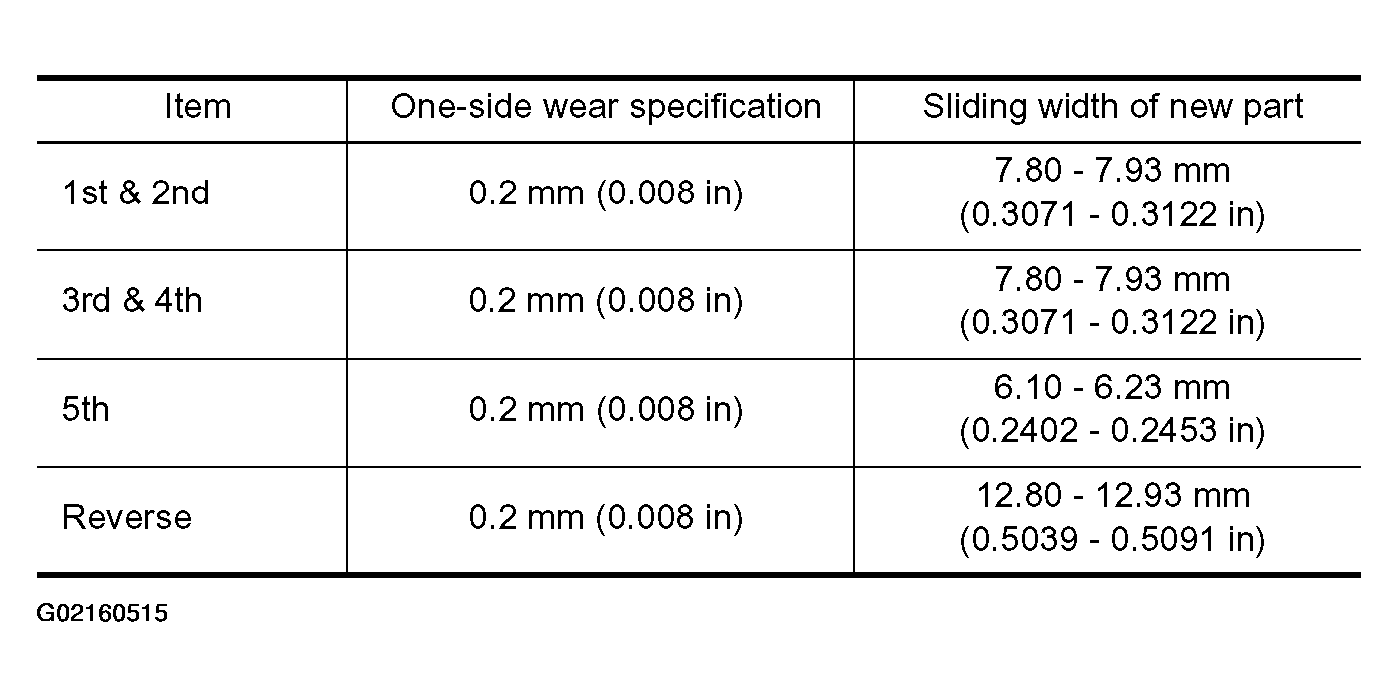

Fig 1: Shift Fork Allowable Width Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Shift Fork Allowable Width Dimension
Courtesy of NISSAN MOTOR CO., U.S.A.
