DTC P0705: Park/Neutral Position Switch: Description
The park/neutral position (PNP) switch includes a transmission range switch.
The transmission range switch detects the selector lever position and sends a signal to the TCM.

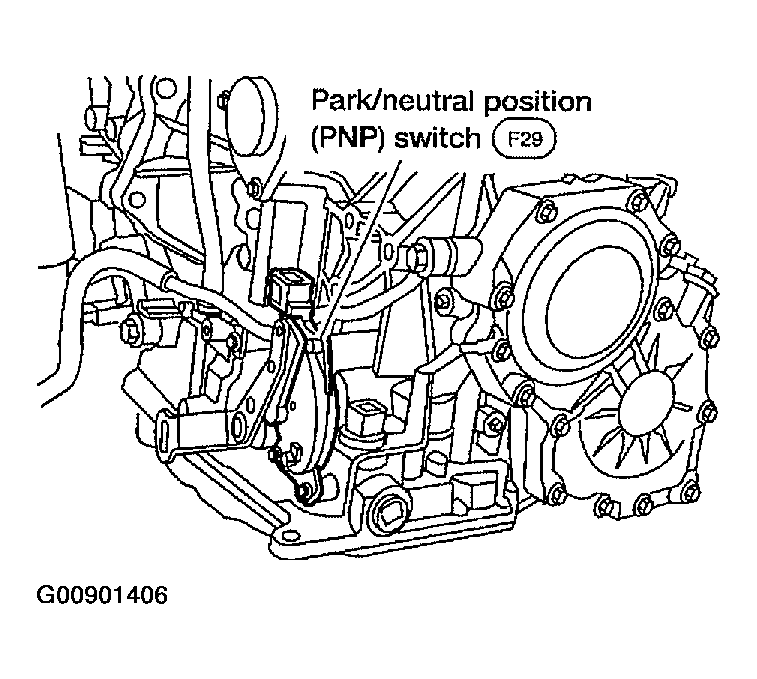

Fig 1: Identifying Location Of PNP Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
