Oil Pump: Components

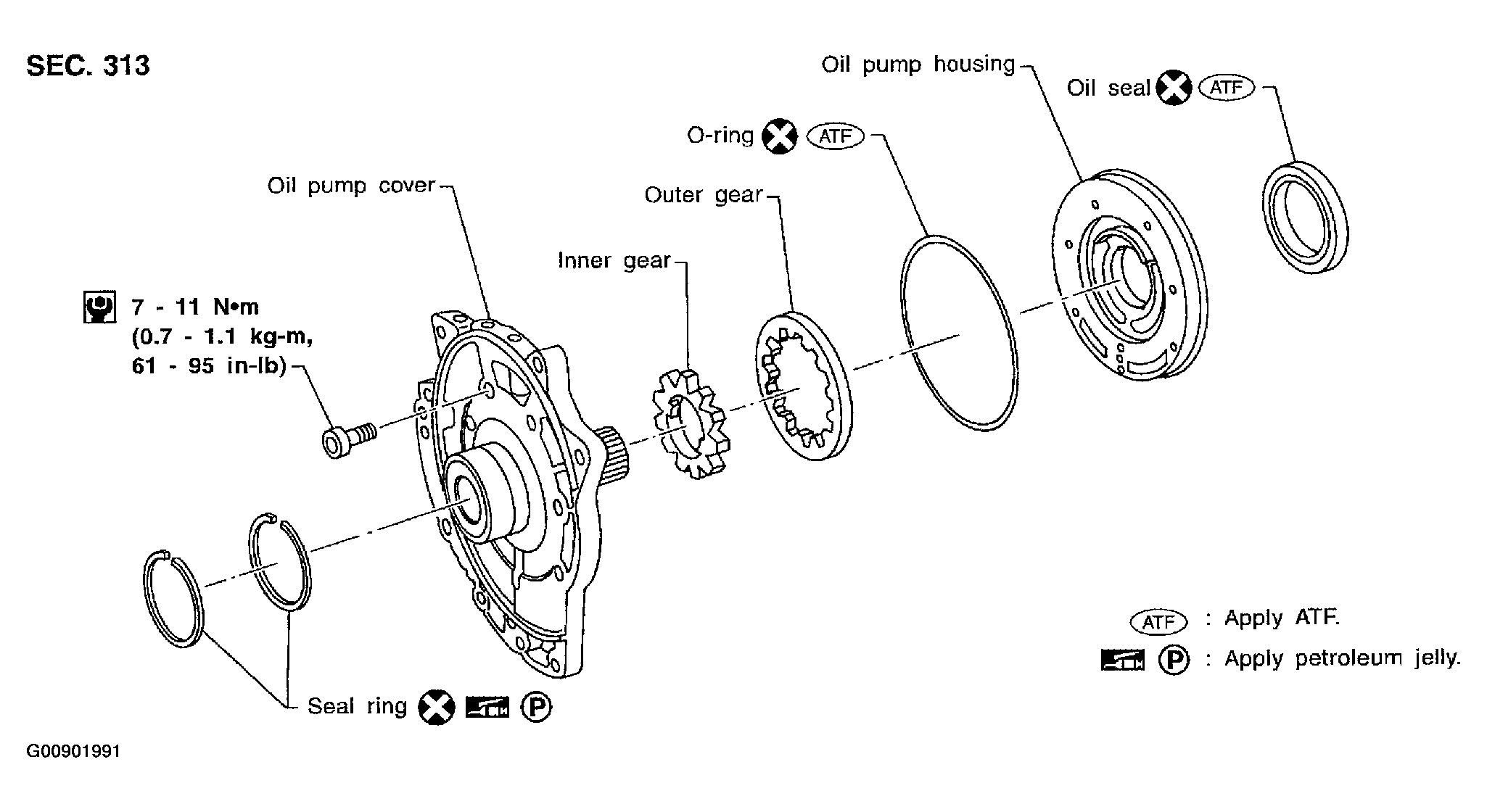

Fig 1: Identifying Oil Pump Components And Tightening Torques
Courtesy of NISSAN MOTOR CO., U.S.A.
