Armada LE, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
Engine Control System
>>
System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
System Diagram

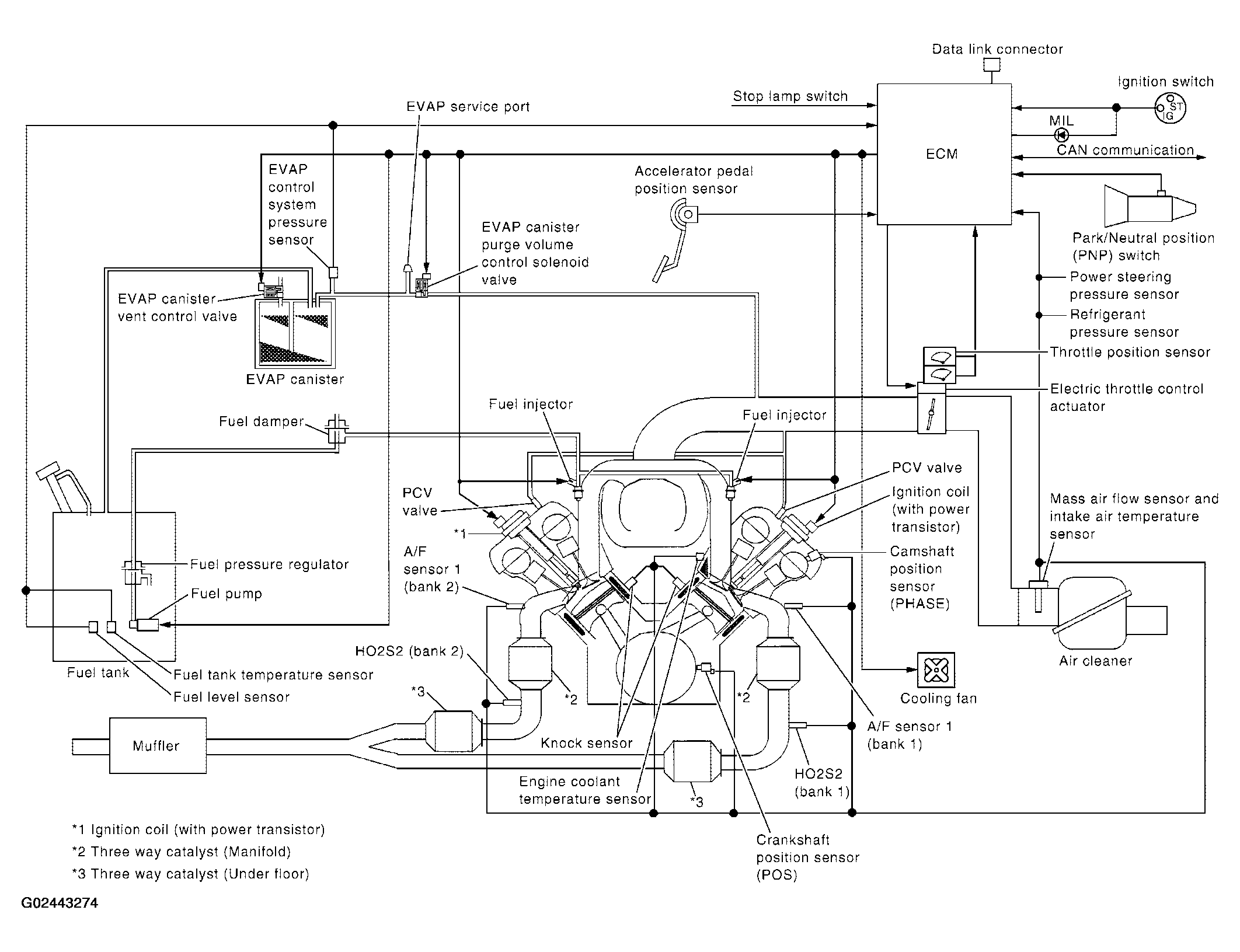

Fig 1: Engine Control System - Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
