Circuit Diagram

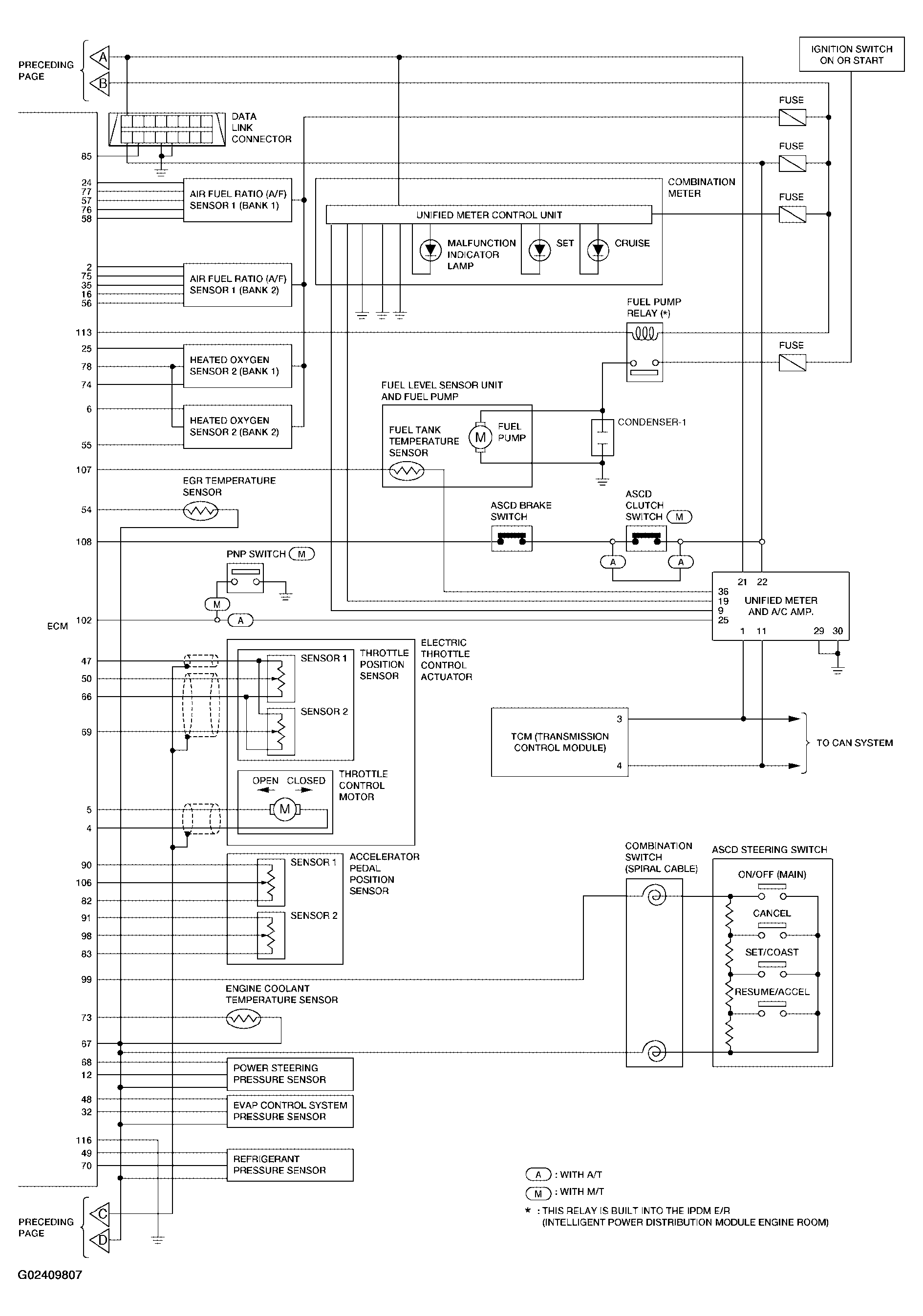

Fig 1: Engine Control Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Engine Control Circuit Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
