With CONSULT-II
- Reconnect harness connectors disconnected.
- Turn ignition switch ON.

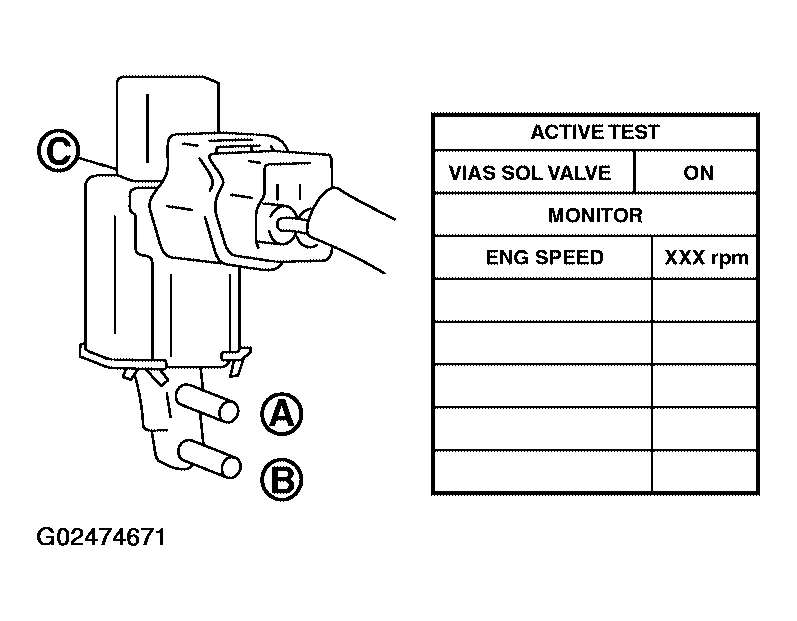

- Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Check air passage continuity and operation delay time under the following conditions.
AIR PASSAGE CONTINUITY TABLE
| Condition VIAS SOL VALVE |
Air passage continuity between A and B |
Air passage continuity between A and C |
| ON |
Yes |
No |
| OFF |
No |
Yes |
- Operation takes less than 1 second.
