< Reference data >

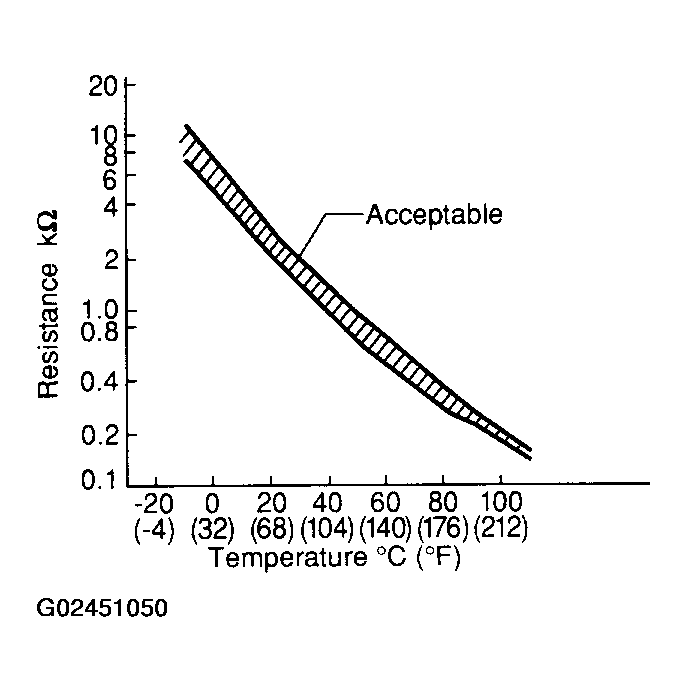

Fig 1: Fuel Tank Temperature Sensor - Temperature Versus Resistance Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

FUEL TANK TEMPERATURE SENSOR VOLTAGE VERSUS RESISTANCE SPECIFICATIONS

Fluid temperature °C(°F)

Voltage⁽¹⁾V

Resistance kΩ

20 (68)

3.5

2.3 - 2.7

50 (122)

2.2

0.79 - 0.90

⁽¹⁾	This data is reference value and is measured between ECM terminal 107 (Fuel tank temperature sensor) and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the ECM's transistor. Use ground other than ECM, such as ground.
