A/T Models ULEV And M/T Models
Driving pattern (Drive Cycle)
NOTE:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.

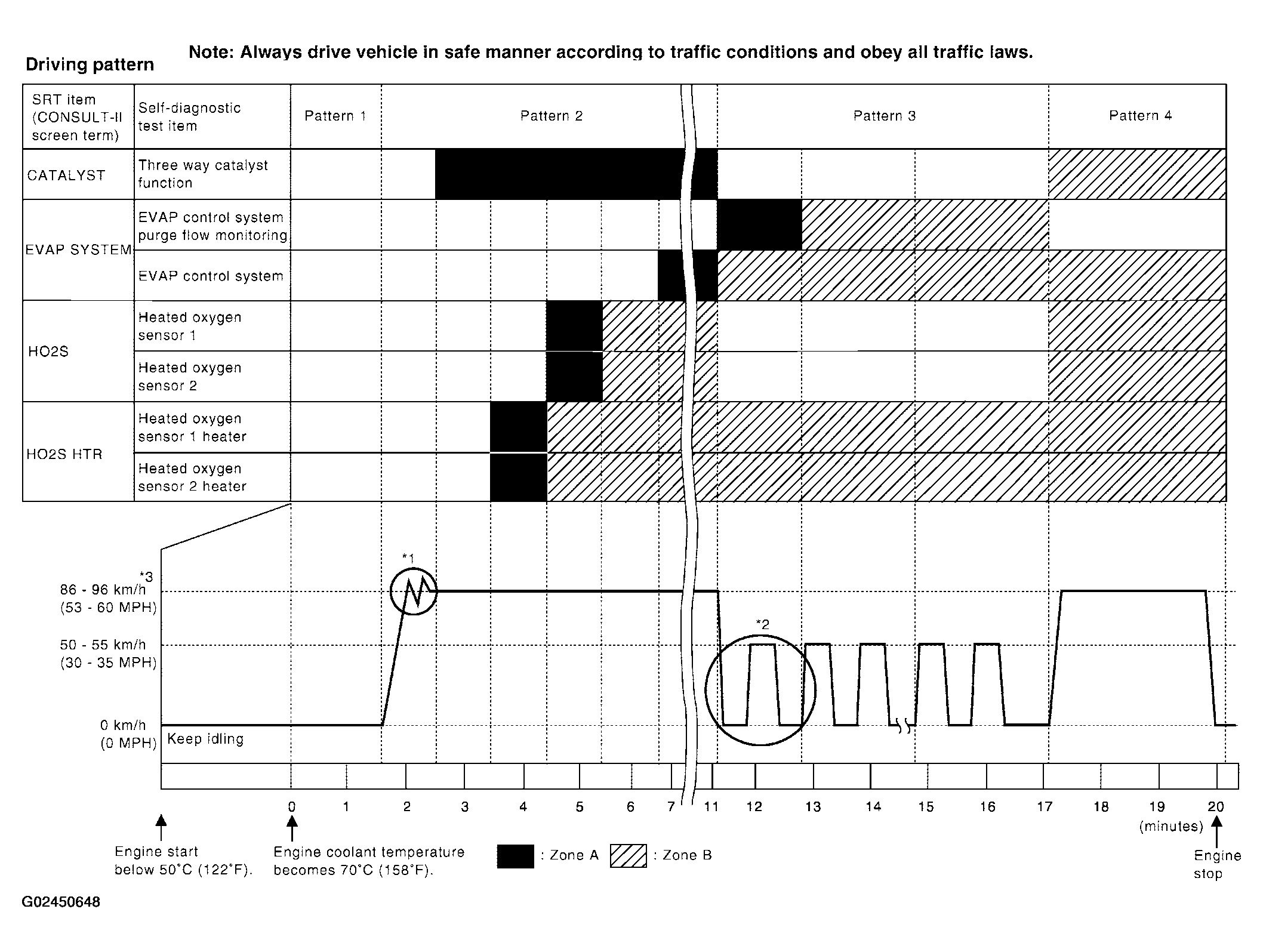

Fig 1: Driving Pattern (Drive Cycle) - A/T Models ULEV And M/T Models
Courtesy of NISSAN MOTOR CO., U.S.A.
