Engine Compartment Junction & Relay Blocks

NOTE: For engine compartment electrical unit locations, see Fig 1.

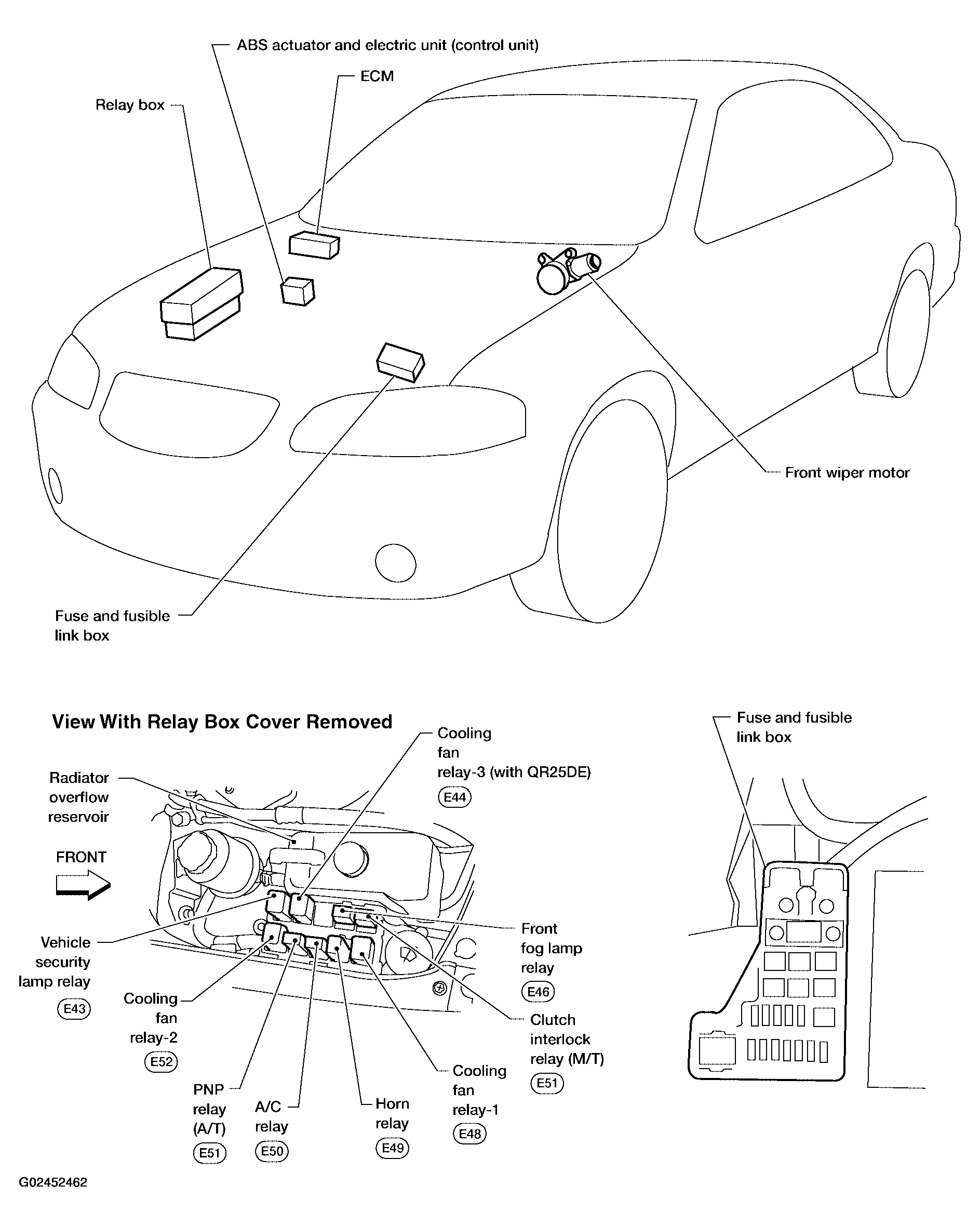

Fig 1: Locating Electrical Units In Engine Compartment
G02452462Courtesy of NISSAN MOTOR CO., U.S.A.

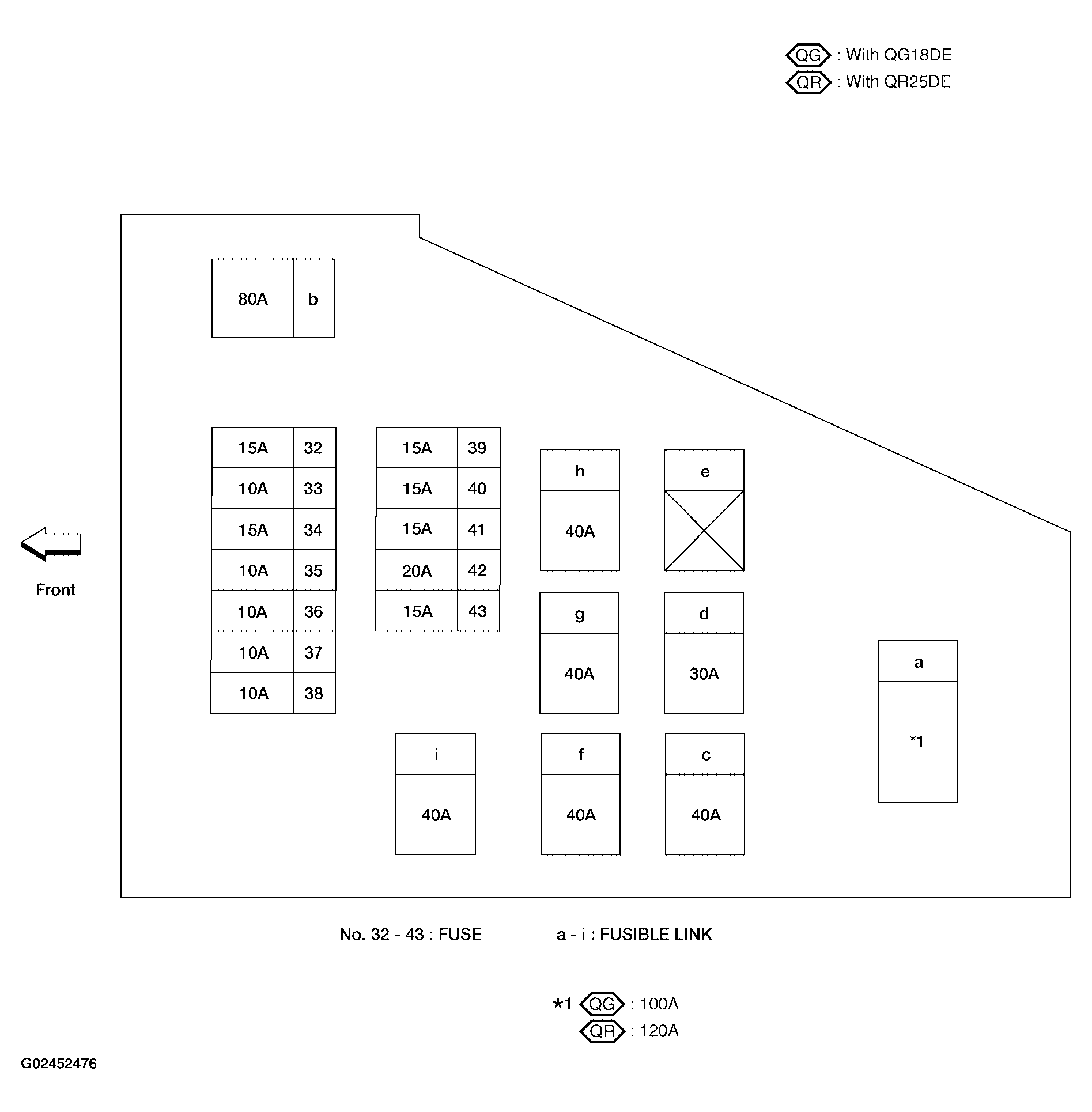

Fig 2: Identifying Fuse & Fusible Link Block Components
G02452476Courtesy of NISSAN MOTOR CO., U.S.A.
