Vehicle Speed When Performing And Releasing Lock-Up

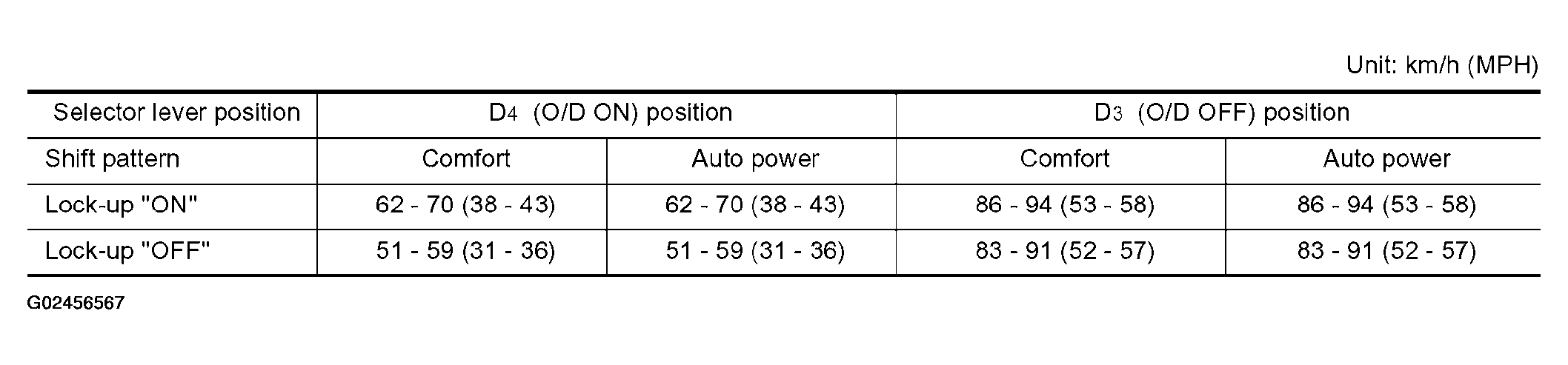

Fig 1: Vehicle Speed When Performing & Releasing Lock-Up Specifications Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Lock-up vehicle speed indicates the speed in D₄ (O/D ON) position.
Perform lock-up inspection after warming up engine.
Lock-up vehicle speed may vary depending on the driving conditions and circumstances.
