Overrun Clutch Operating Conditions

WARNING: This page is about a different variant/trim than selected.

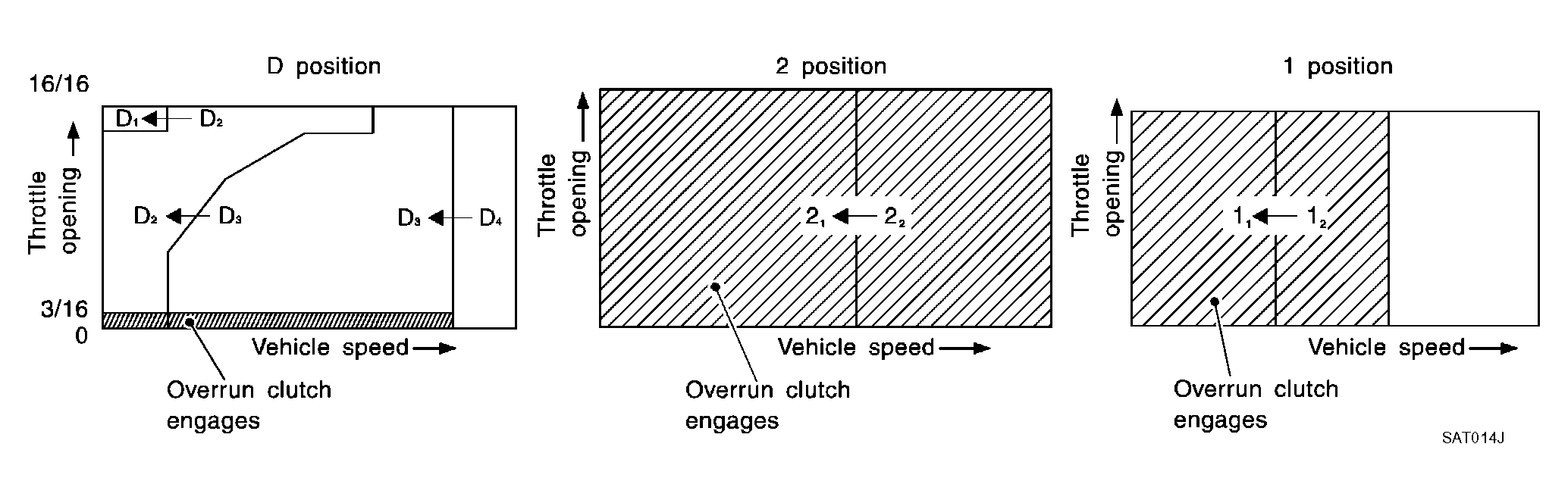

Fig 1: Overrun Clutch Operating Conditions
G04192830Courtesy of NISSAN MOTOR CO., U.S.A.
OVERRUN CLUTCH OPERATING CONDITIONS

Selector lever position Gear position Throttle opening
"D" position D1, D2, D3 gear position Less than 3/16
"2" position 21, 22 gear position
"1" position 11, 12 gear position At any position
