Work Flow Chart

WARNING: This page is about a different variant/trim than selected.

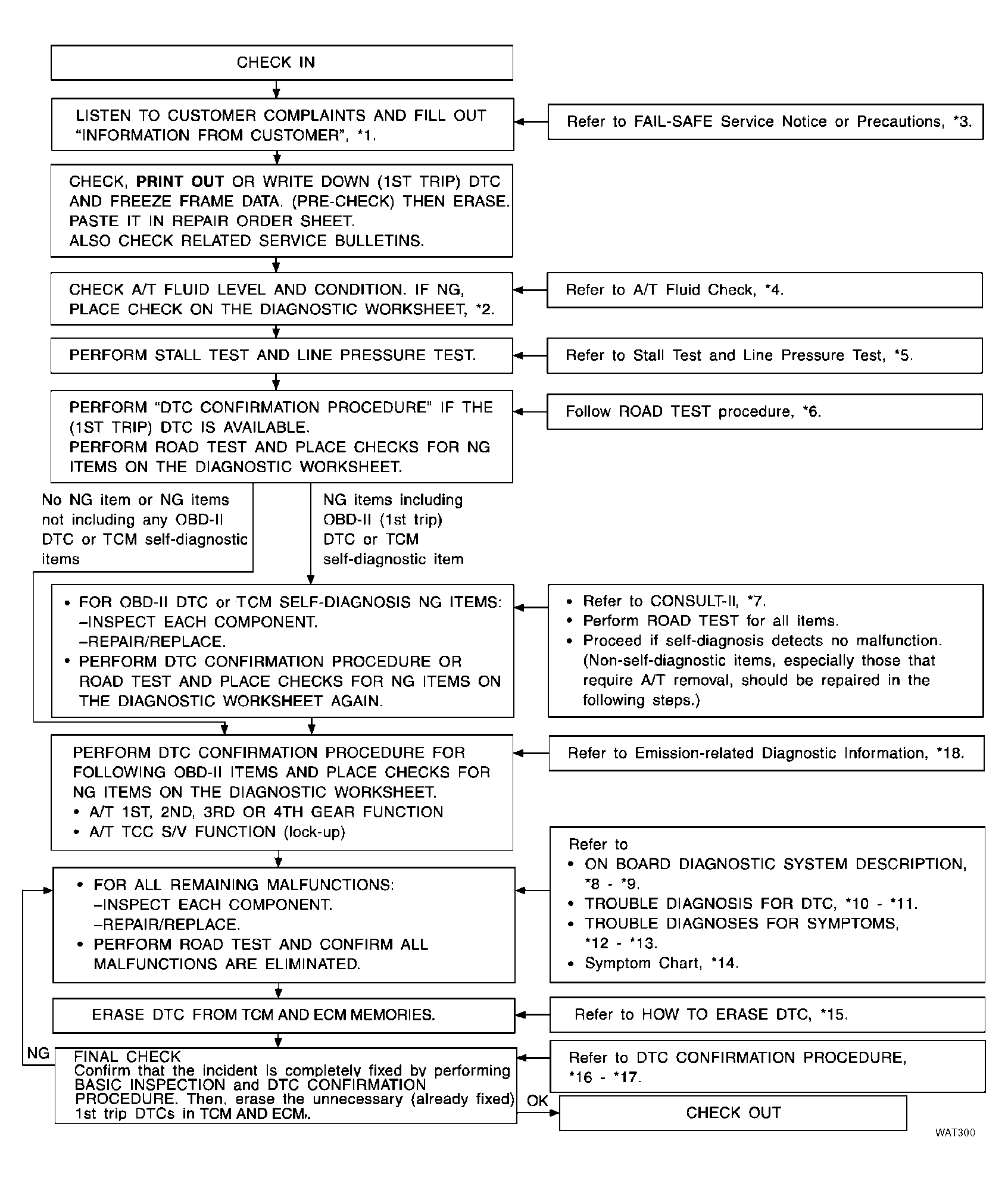

Fig 1: Work Flow Chart

G04192885

Courtesy of NISSAN MOTOR CO., U.S.A.

WORK FLOW CHART REFERENCES

*1. INFORMATION FROM CUSTOMER

*2. DIAGNOSTIC WORKSHEET

*4. A/T Fluid Check

*5. Stall Test , Line Pressure Test

*8. Introduction

*9. Judgement of Self-diagnosis Code

*10. Description

*11. Description

*12. 1. O/D OFF Indicator Lamp Does Not Come On

*13. 21. TCM Self-diagnosis Does Not Activate {Park/neutral Position (PNP), Overdrive Control and Throttle Position Sensor [Accelerator Pedal Position (APP) Sensor] Switches Circuit Checks}

*14. Symptom Chart

*15. HOW TO ERASE DTC

*16. DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

*17. DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

*18. EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
