Evaporative Emission Line Drawing

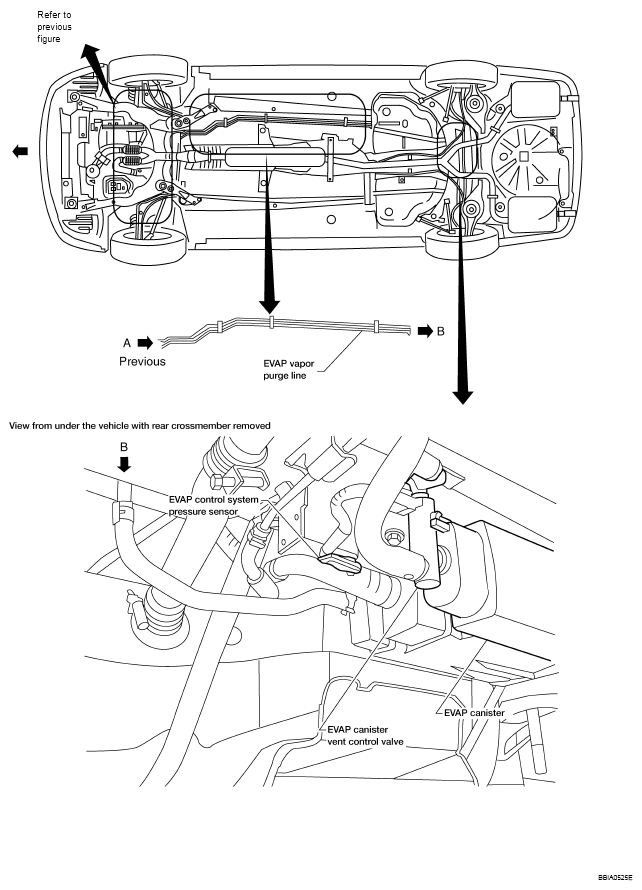

Fig 1: Evaporative Emission Line Drawing (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

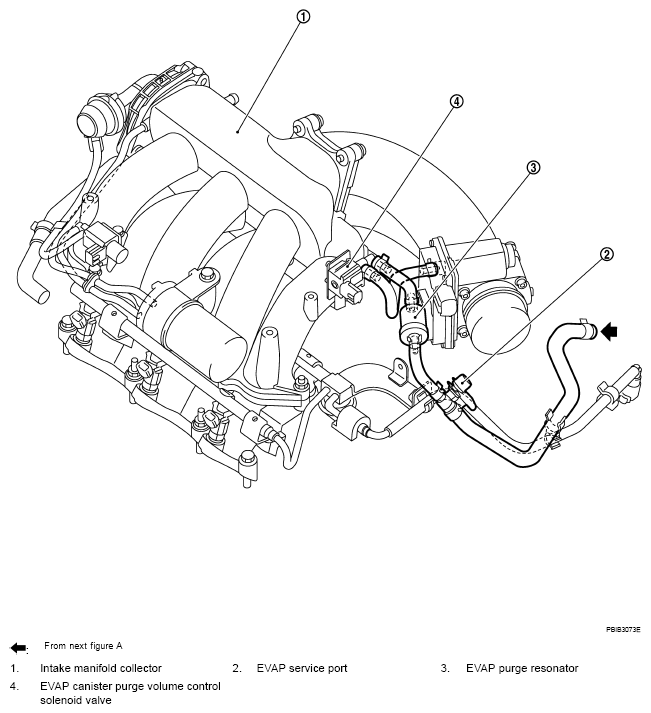

Fig 2: Evaporative Emission Line Drawing (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
