Engine Control System Components

Engine Control Component Parts Location:

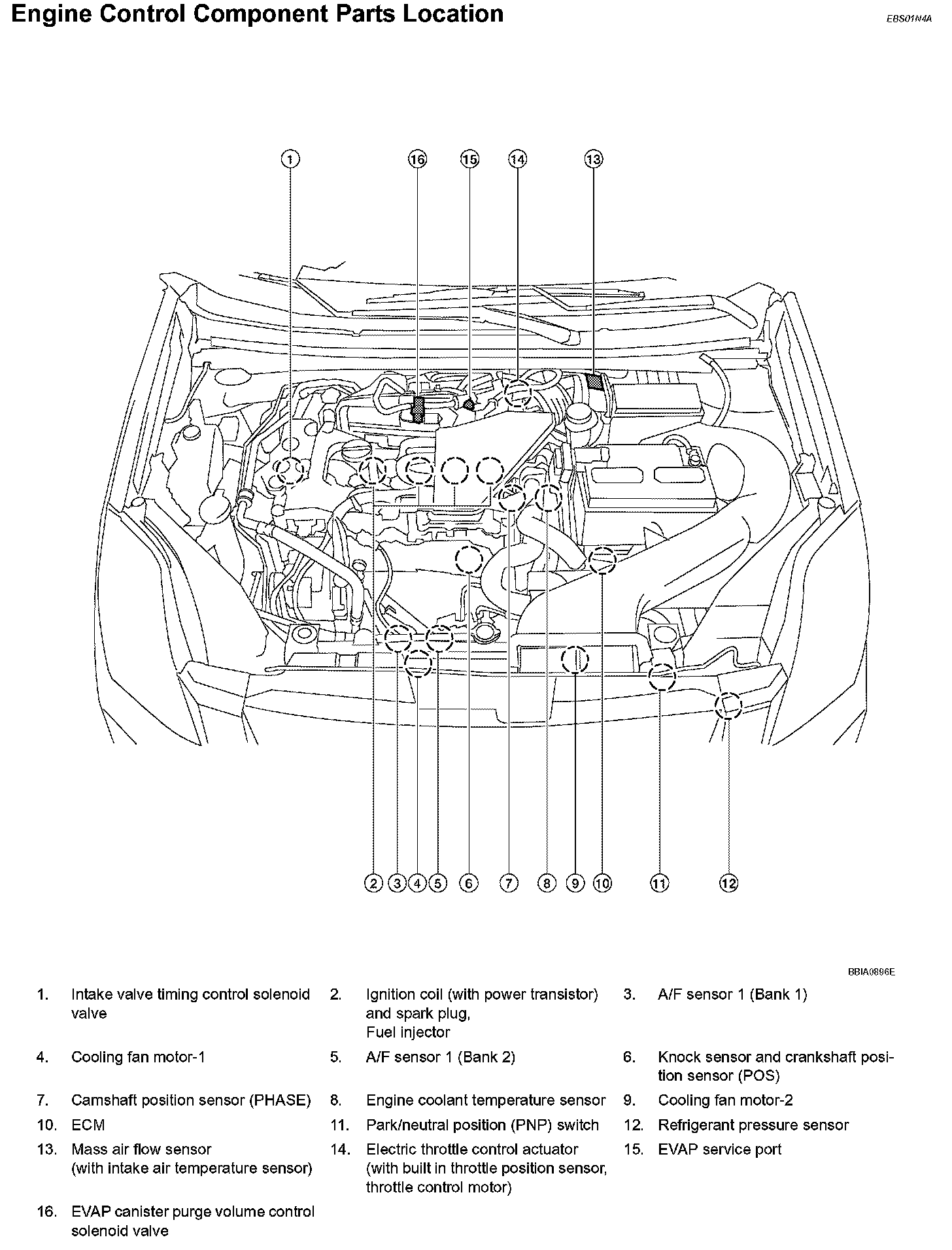

Engine Control Component Parts Location:
