Component Tests and General Diagnostics

POWER SUPPLY AND GROUND CIRCUIT

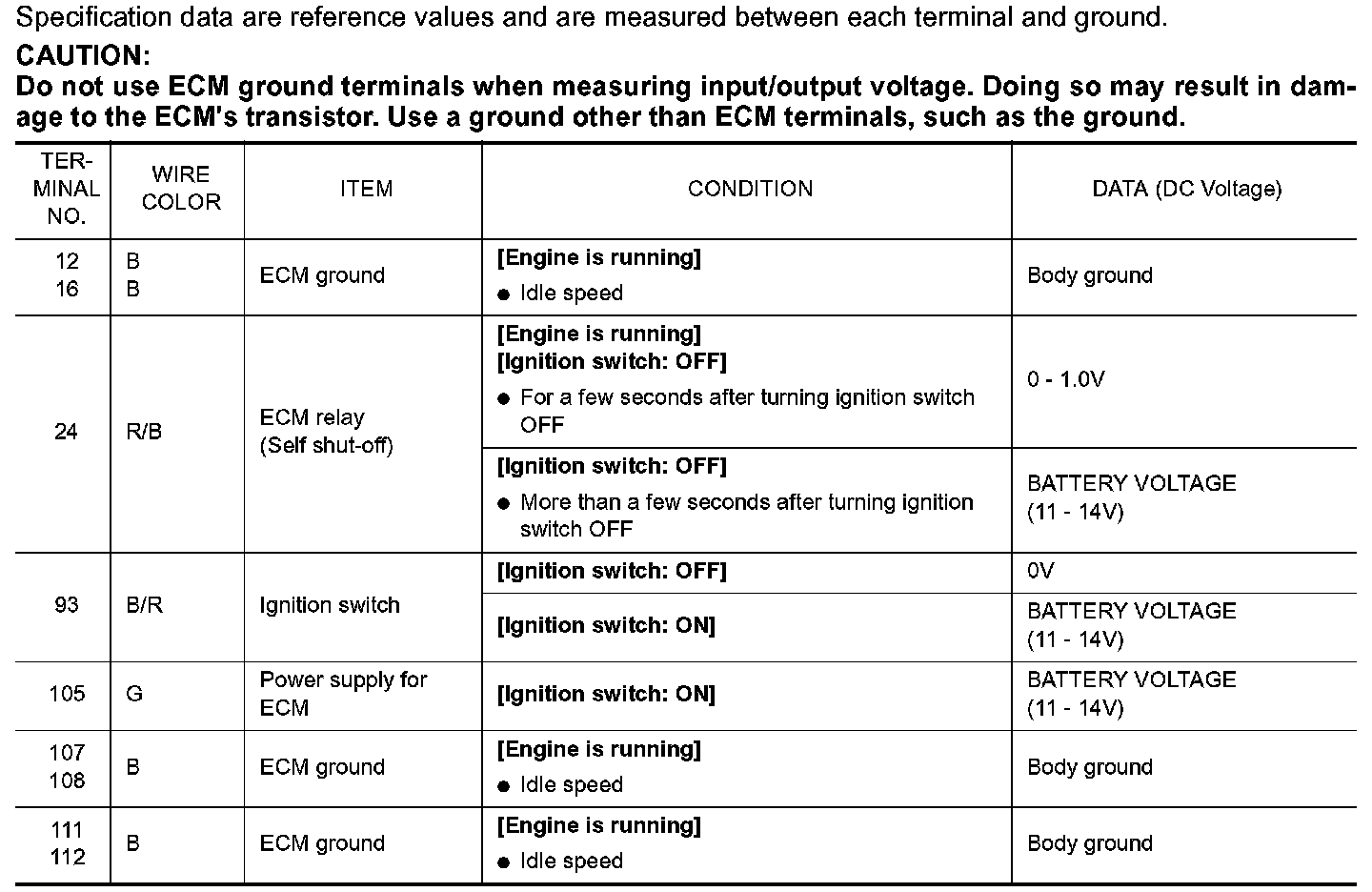

EC-MAIN-01:

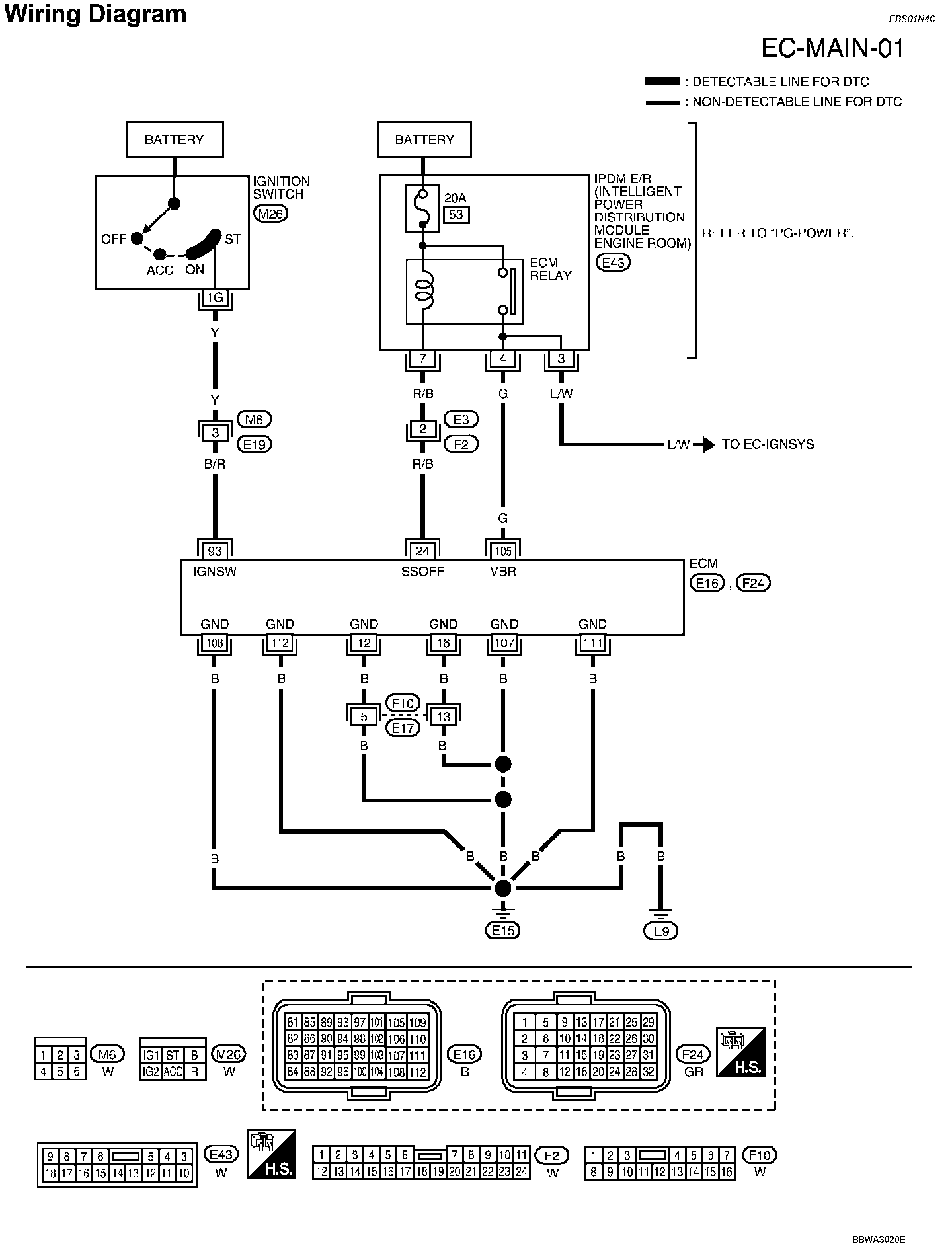

Wiring Diagram

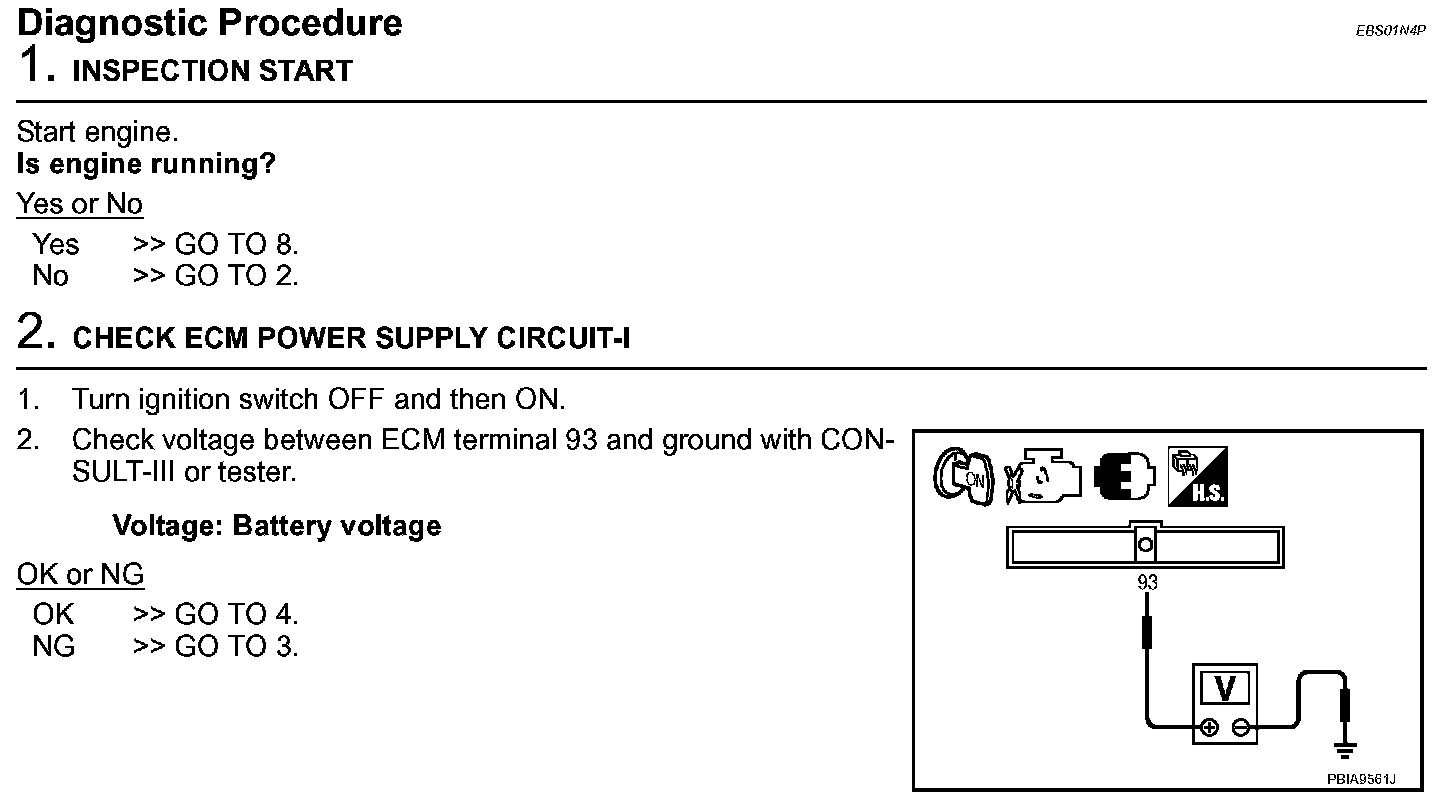

Step 1-2:

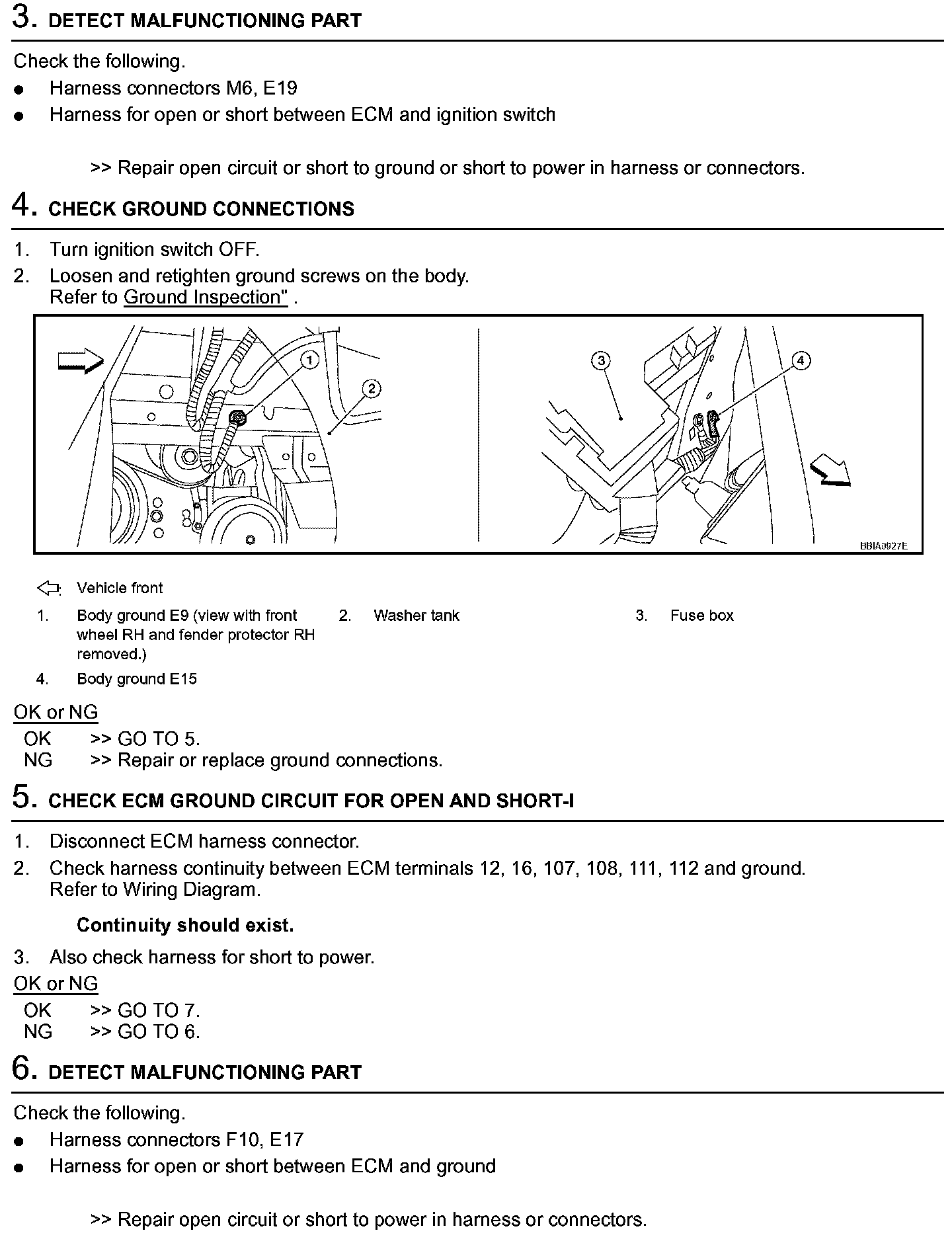

Step 3-6:

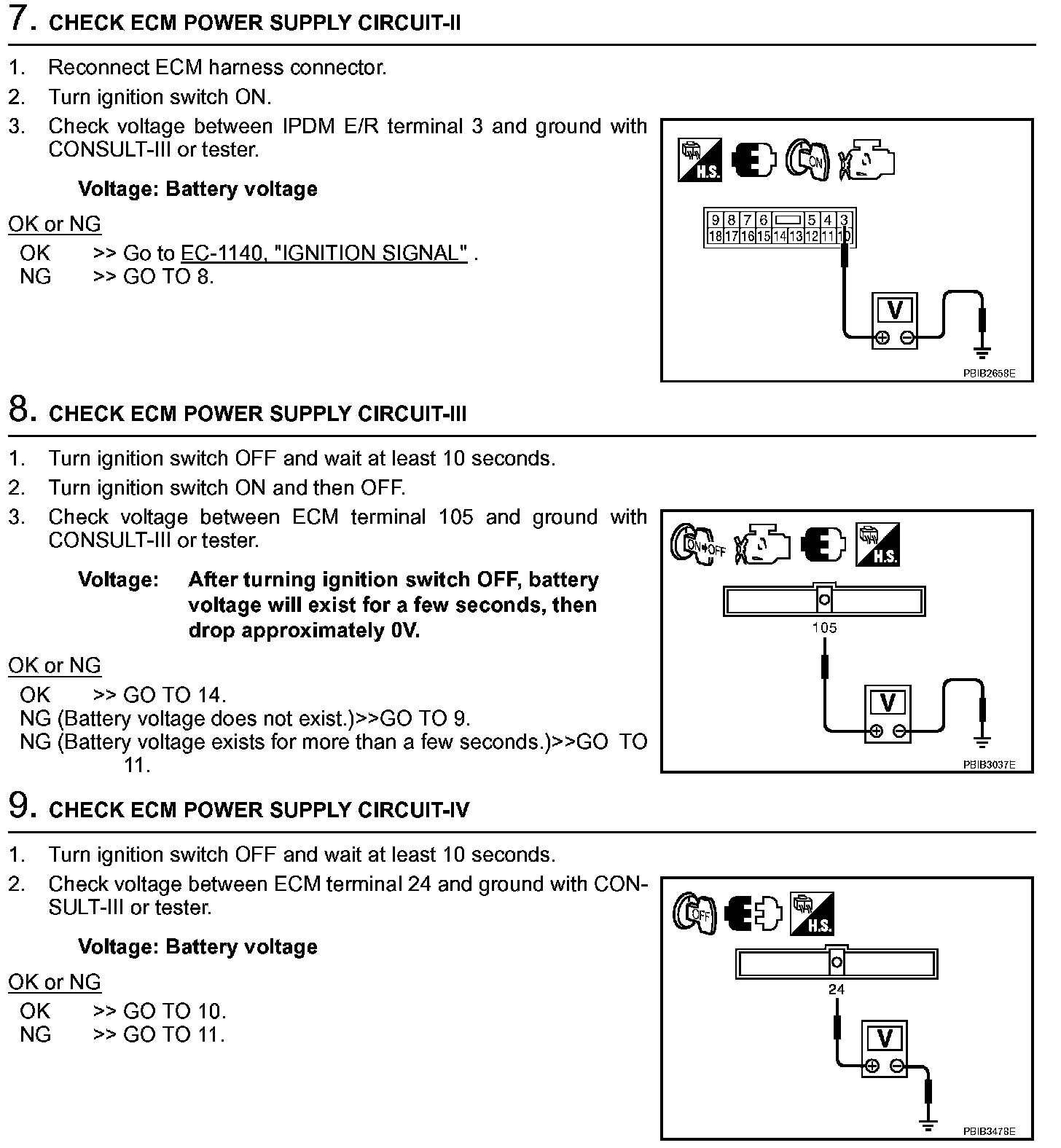

Step 7-9:

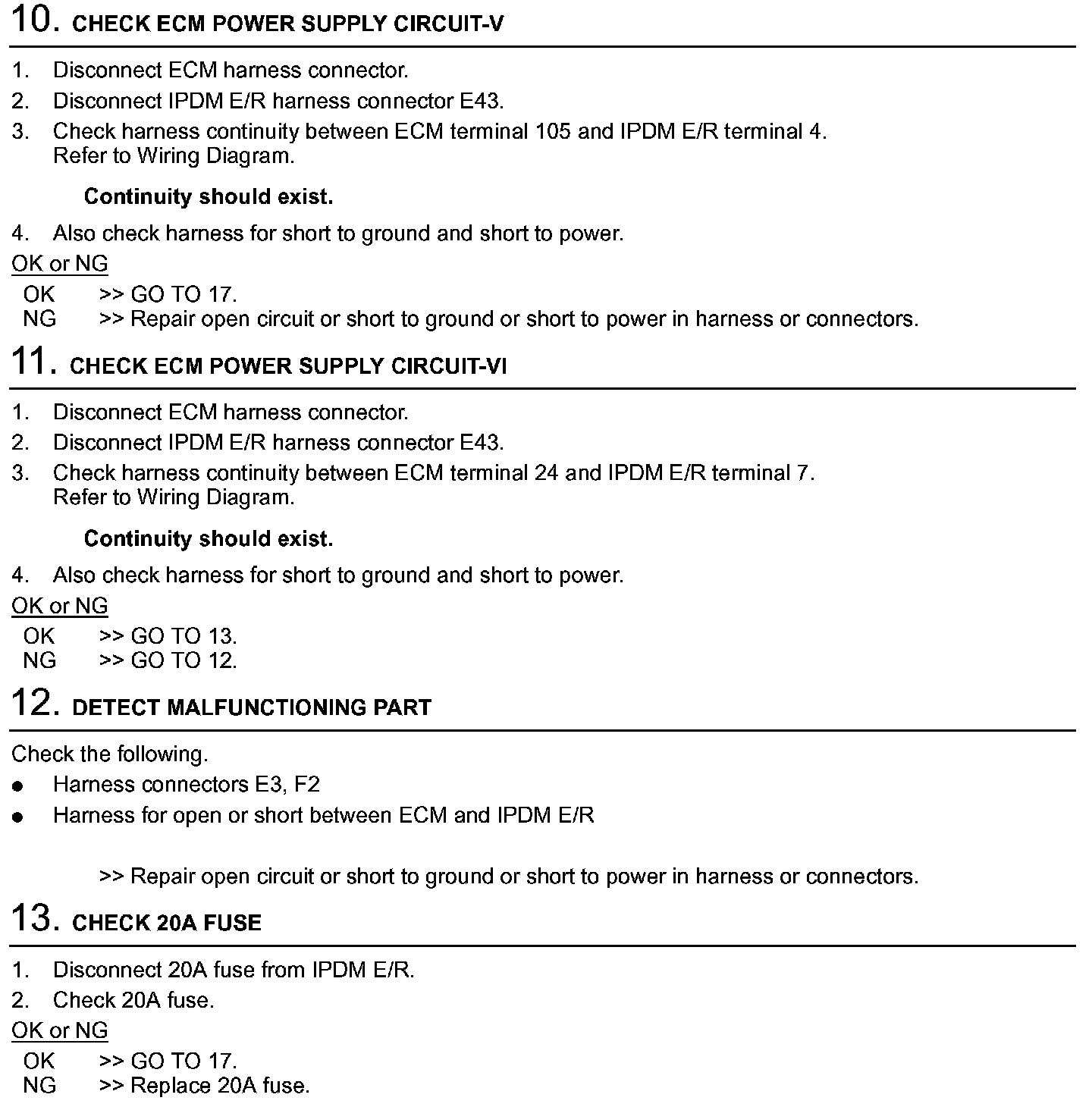

Step 10-13:

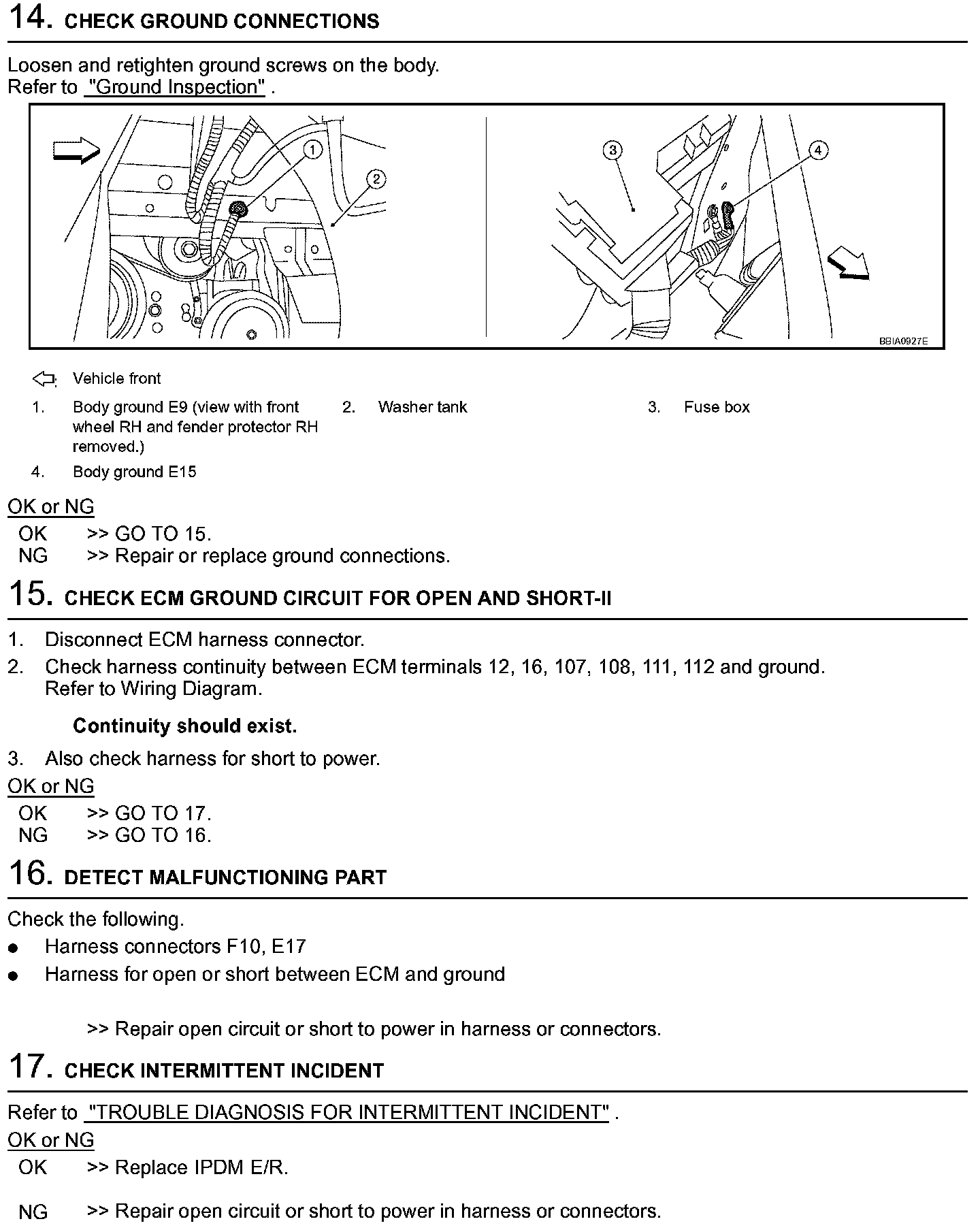

Step 14-17:




Diagnostic Procedure
