TCM Function

TCM Function
The function of the TCM is to:
^ Receive input signals sent from various switches and sensors.
^ Determine required line pressure, shifting point, and lock-up operation.
^ Send required output signals to the step motor and the respective solenoids.

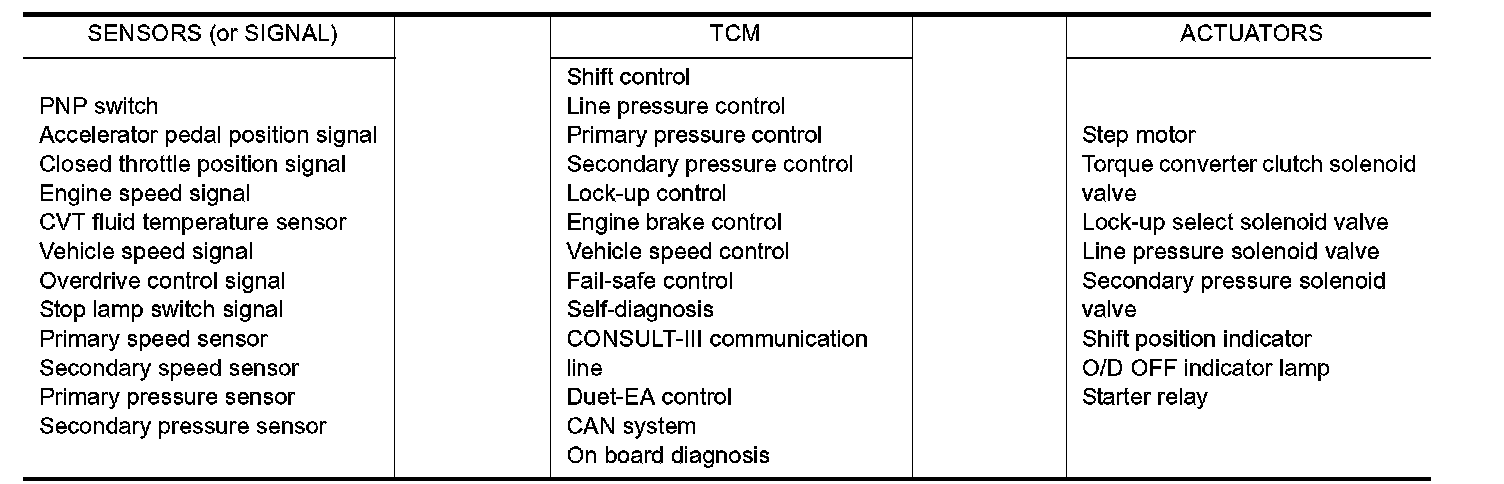

CONTROL SYSTEM OUTLINE

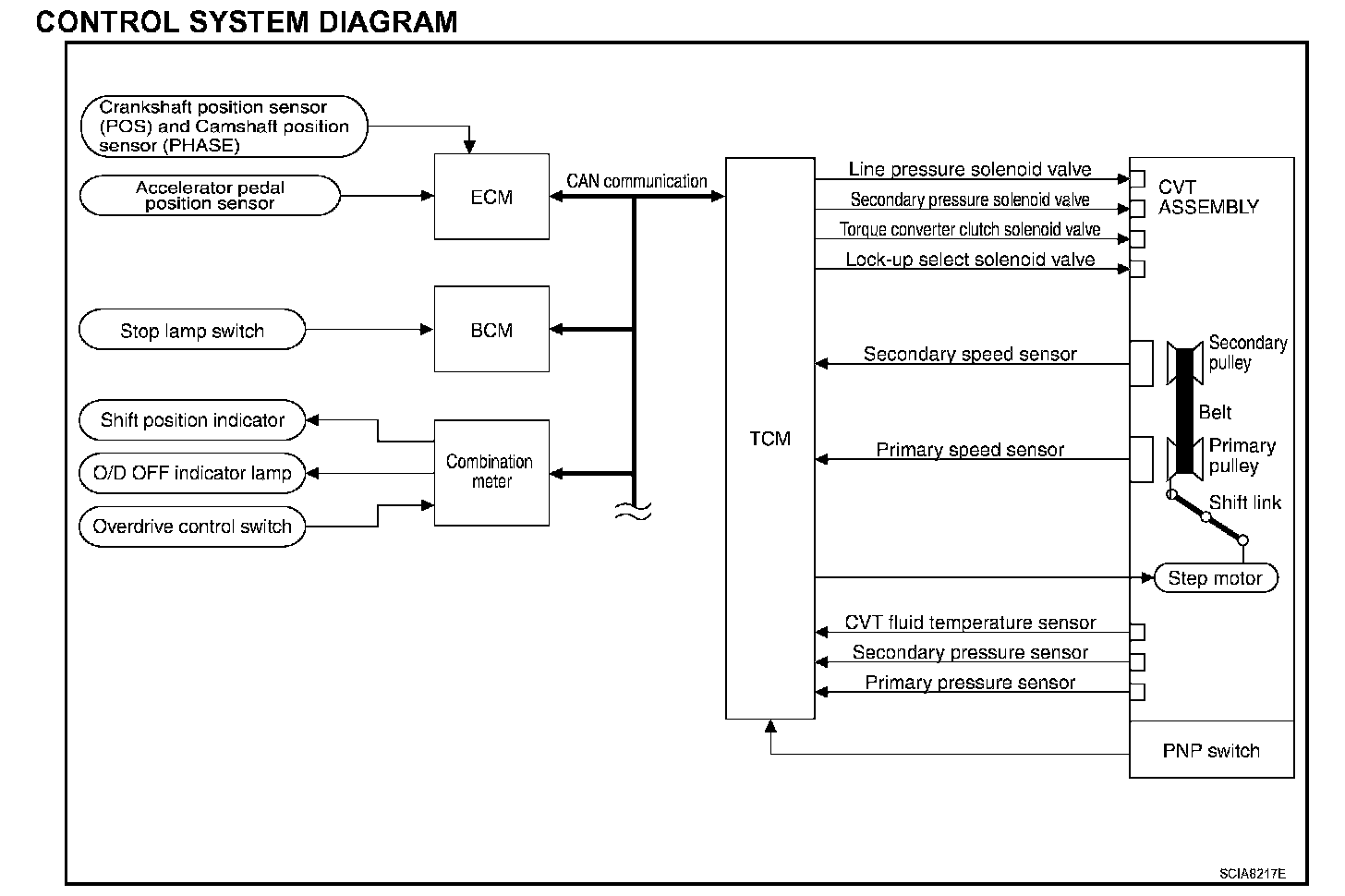

The CVT senses vehicle operating conditions through various sensors. It always controls the optimum shift position and reduces shifting and lock-up shocks.
