Work Support Mode

WORK SUPPORT MODE

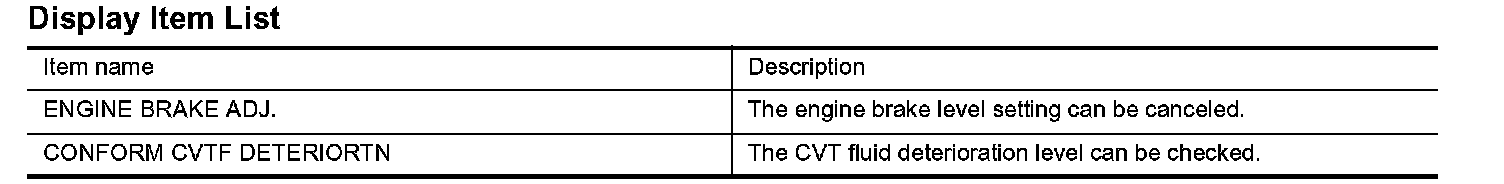

Display Item List:

Engine Brake Adjustment
ENGINE BRAKE LEVEL
0: Initial set value (Engine brake level control is activated)
OFF: Engine brake level control is deactivated.

CAUTION: Mode of +1, 0, -1, -2, OFF can be selected by pressing the UP DOWN on CONSULT-III screen. However, do not select mode other than 0 and OFF. If the +1 or -1 or -2 is selected, that might cause the irregular driveability.

Check CVT Fluid Deterioration Date
CVTF DETERIORATION DATE
More than 210000: It is necessary to change CVT fluid.
Less than 210000: It is not necessary to change CVT fluid.

CAUTION: Touch CLEAR after changing CVT fluid, and then erase CVTF DETERIORATION DATE.
