Control Module: Service and Repair

TRANSMISSION CONTROL MODULE

Removal and Installation

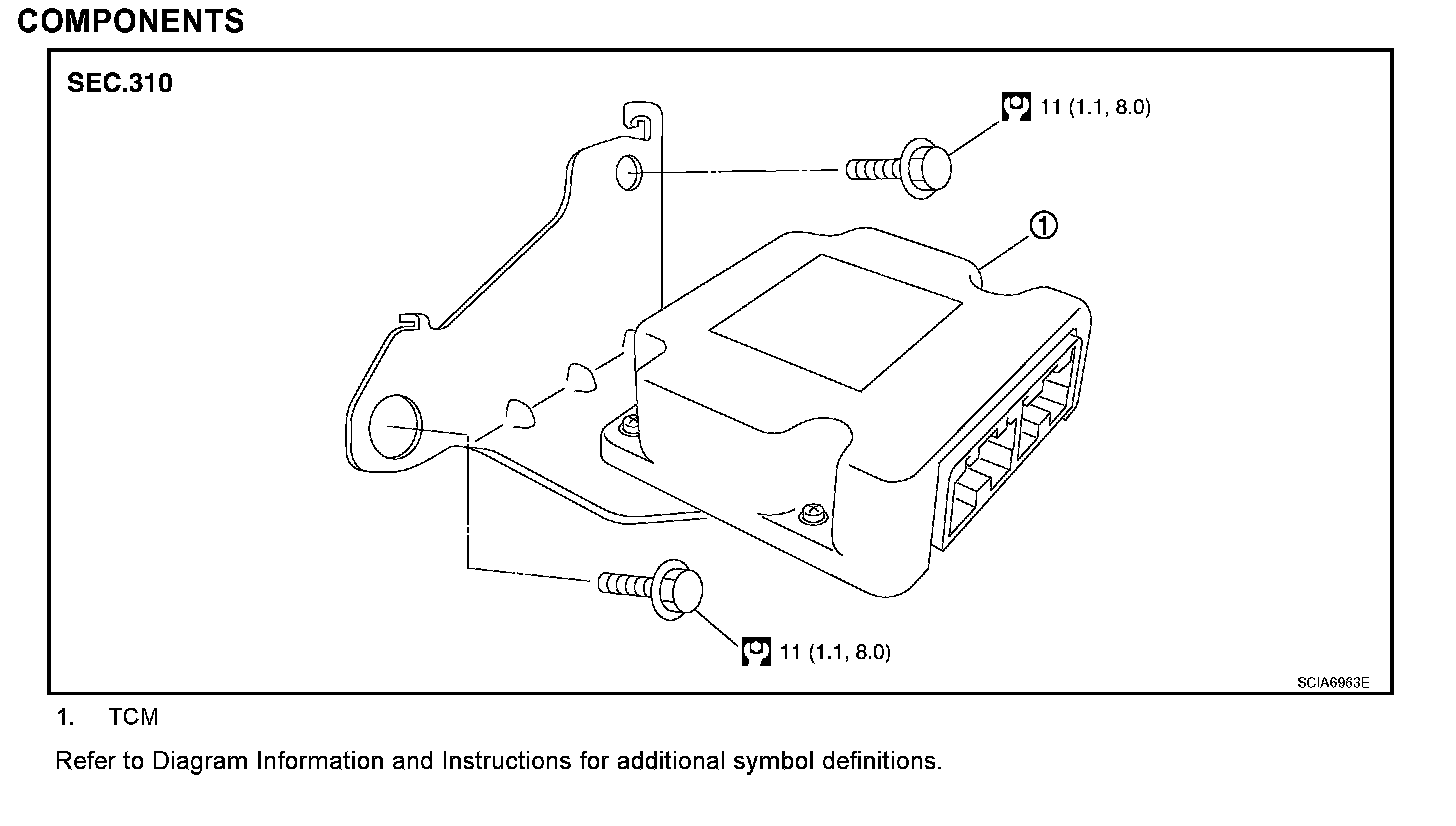

Exploded View CVT-180:

REMOVAL
1. Disconnect the battery negative terminal.
2. Remove the fresh air intake tube (upper).
3. Disconnect the TCM harness connector.





4. Remove the TCM (1).
^ <-: Front
^ Battery (2)

INSTALLATION
Installation is in the reverse order of removal.
