Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.5L (QR25DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> Valve Spring
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

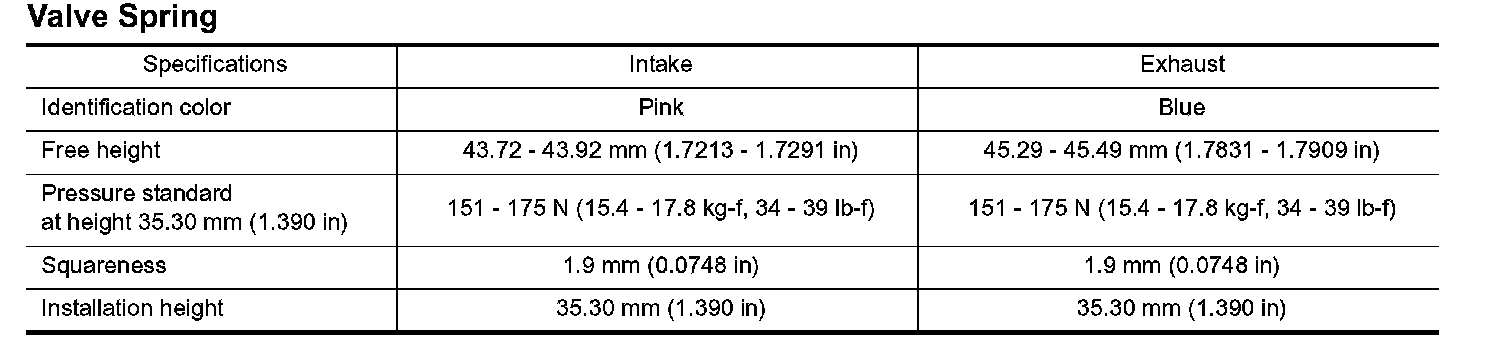

Valve Spring

Part 1:

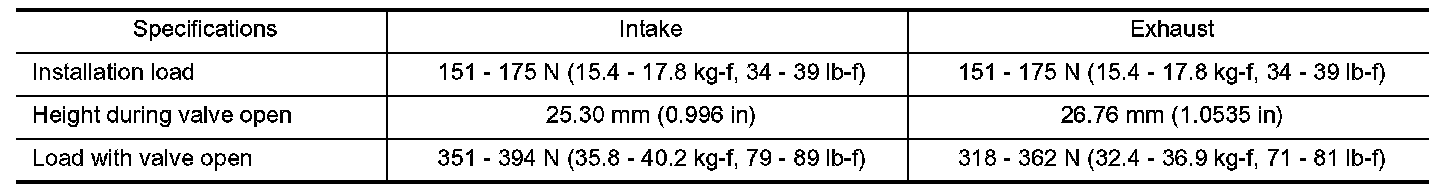

Part 2:
