Timing Cover

Timing Cover

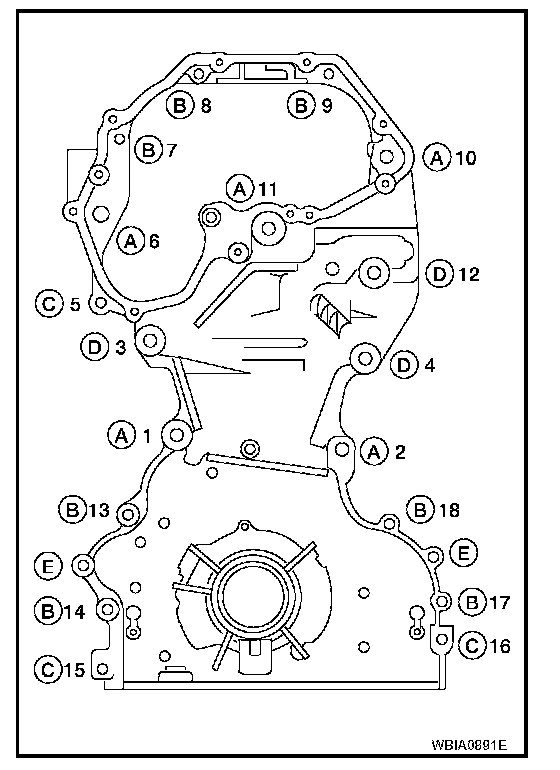

Tighten front cover bolts in the numerical order as shown.
After all bolts are tightened, retighten them to the specified torque.
Front cover bolt torque
Bolts A 49 Nm (5.0 kg-m, 36 ft-lb)
Bolts B 12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolts C 12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolts D 49 Nm (5.0 kg-m, 36 ft-lb)
E Dowel pins
