Wiring Diagram - CVT - POWER: Notes

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

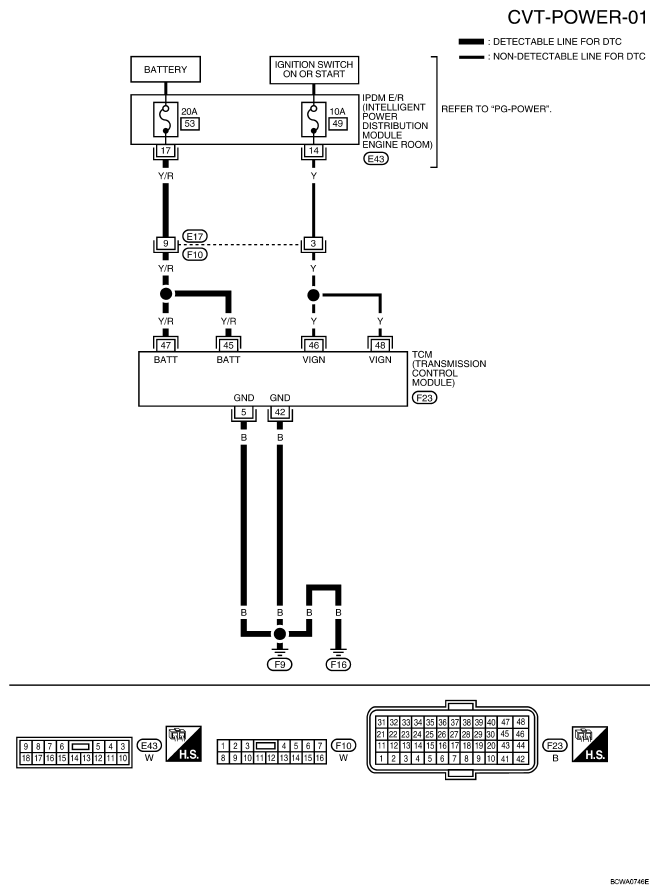

Fig 1: Wiring Diagram - CVT-POWER-01

G04927066
