Exploded View

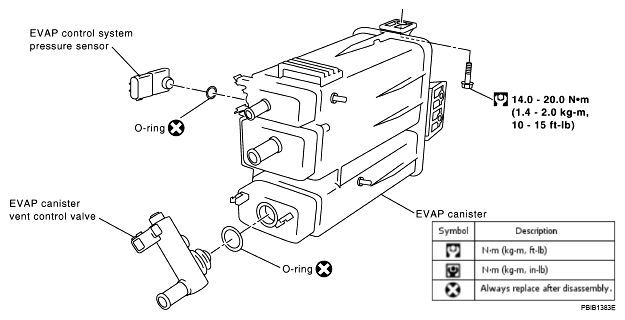

Fig 1: Exploded View Of EVAP Canister With Torque Specifications
G04920007Courtesy of NISSAN NORTH AMERICA, INC.
