Electronic Controlled Engine Mount Line Drawing

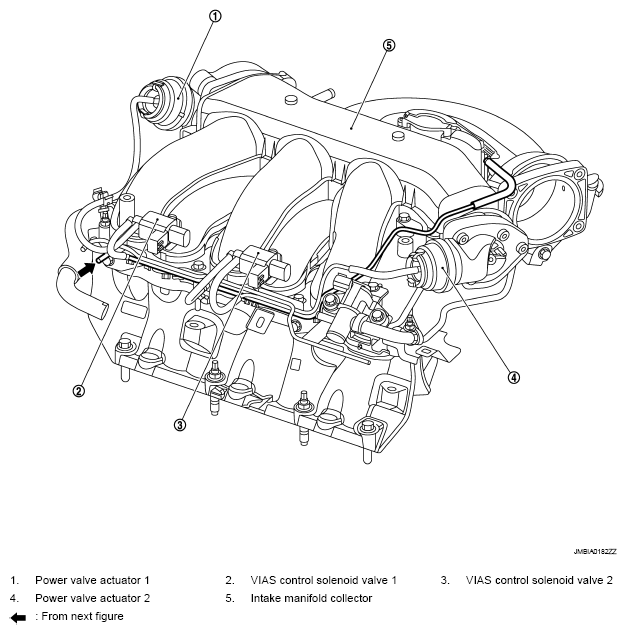

Fig 1: Electronic Controlled Engine Mount Line Drawing (1 Of 2)
G05869646Courtesy of NISSAN MOTOR CO., U.S.A.

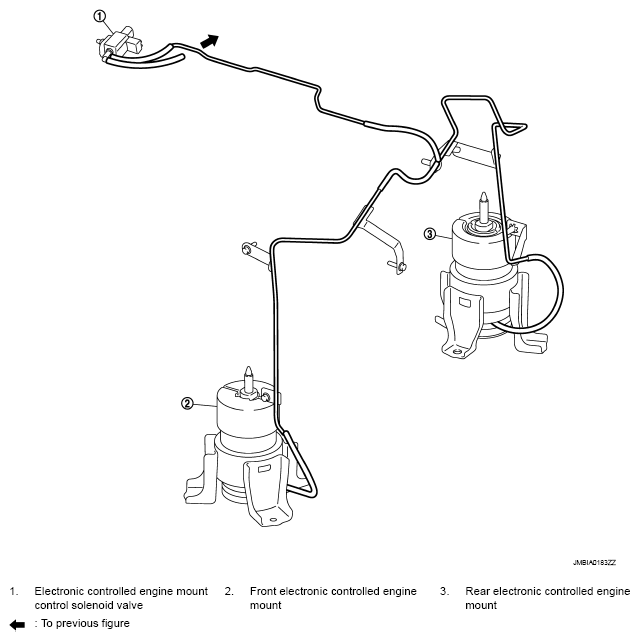

Fig 2: Electronic Controlled Engine Mount Line Drawing (2 Of 2)
G05869647Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose.
