Component Parts Location

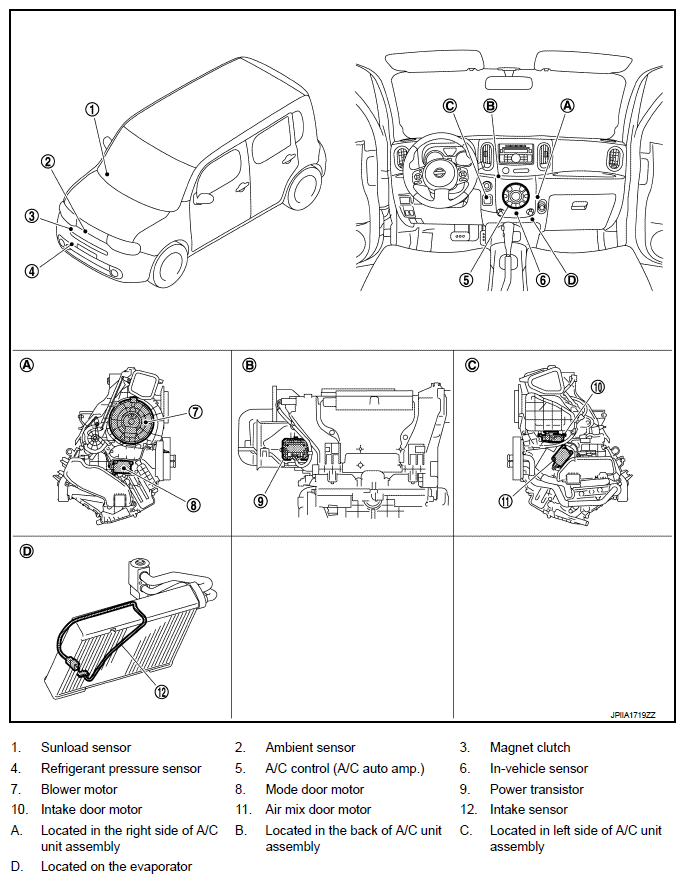

Fig 1: Identifying Compressor Control Function Component Parts Location
G07104937Courtesy of NISSAN MOTOR CO., U.S.A.
