Exploded View

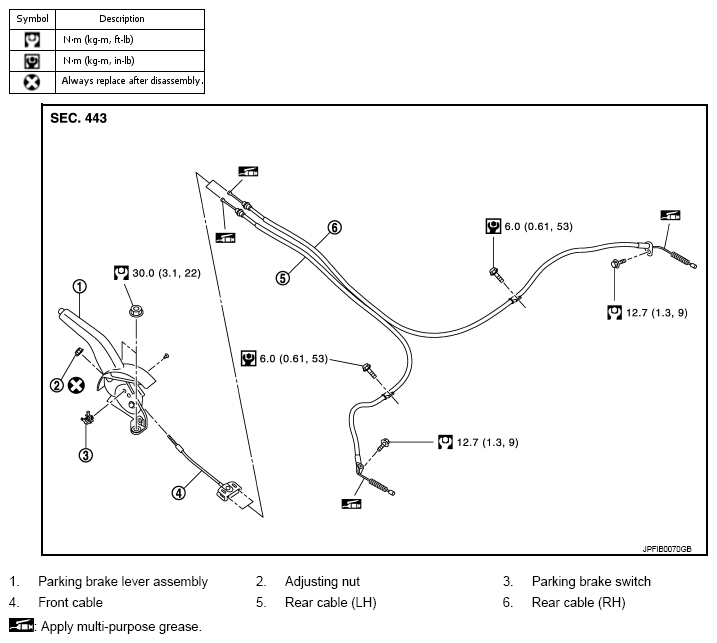

Fig 1: Exploded View Of Parking Brake Control With Torque Specifications
G07110776Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
