A/T Models

  1. CHECK OVERALL FUNCTION-I

    With CONSULT-III

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-III.
    3. Check "BRAKE SW1" indication under the following conditions.
      CONDITION REFERENCE CHART

      CONDITION INDICATION
      Brake pedal: Slightly depressed OFF
      Brake pedal: Fully released ON

    Without CONSULT-III

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions.
      VOLTAGE REFERENCE CHART

      CONDITION VOLTAGE
      Brake pedal: Slightly depressed Approximately 0V
      Brake pedal: Fully released Battery voltage
      Fig 1: Checking Voltage Between ECM Terminal 108 And Ground
      G07121441Courtesy of NISSAN MOTOR CO., U.S.A.

      OK or NG

      OK: Go to 2.

      NG: Go to  3.

  2. CHECK OVERALL FUNCTION-II

    With CONSULT-III

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

    CONDITION REFERENCE CHART

    CONDITION INDICATION
    Brake pedal: Fully released OFF
    Brake pedal: Slightly depressed ON

    Without CONSULT-III

    Check voltage between ECM terminal 101 and ground under the following conditions.

    VOLTAGE REFERENCE CHART

    CONDITION VOLTAGE
    Brake pedal: Fully released Approximately 0V
    Brake pedal: Slightly depressed Battery voltage
    Fig 2: Checking Voltage Between ECM Connector Terminal 101 And Ground
    G07121442Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: INSPECTION END

    NG: Go to  7.

  3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch (1) harness connector.
      • Stop lamp switch (2)
    3. Turn ignition switch ON.

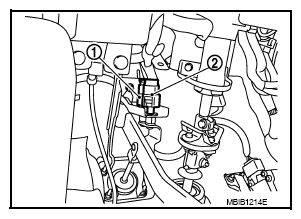

      Fig 3: Location Of ASCD Brake Switch & Stop Lamp Switch
      G07121443Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-III or tester.

      Voltage: Battery voltage

      Fig 4: Checking Voltage Between ASCD Switch Terminal 1 And Ground
      G07121444Courtesy of NISSAN MOTOR CO., U.S.A.

      OK or NG

      OK: Go to  5.

      NG: Go to 4.

  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E160
    • 10 A fuse (No. 12)
    • Harness for open or short between ASCD brake switch and fuse

      Repair open circuit or short to ground in harness or connectors.

  5. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

      OK or NG

      OK: Go to 6.

      NG: Repair open circuit or short to ground or short to power in harness or connectors.

  6. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: Go to  11.

    NG: Replace ASCD brake switch. Refer to "EXPLODED VIEW ".

  7. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch (2) harness connector.
      • ASCD brake switch (1)

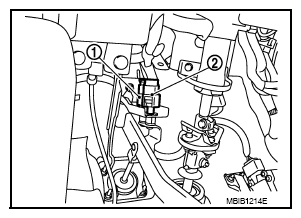

        Fig 5: Location Of ASCD Brake Switch & Stop Lamp Switch
        G07121445Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

      Fig 6: Checking Voltage Between Stop Lamp Switch Terminal 1 And Ground
      G07121446Courtesy of NISSAN MOTOR CO., U.S.A.

      OK or NG

      OK: Go to  9.

      NG: Go to 8.

  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E160
    • 10 A fuse (No. 20)
    • Harness for open or short between stop lamp switch and battery

      Repair open circuit or short to ground or short to power in harness or connectors.

  9. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

      OK or NG

      OK: Go to 10.

      NG: Repair open circuit or short to ground or short to power in harness or connectors.

  10. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: Go to 11.

    NG: Replace stop lamp switch. Refer to "EXPLODED VIEW ".

  11. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    INSPECTION END
