Component Parts Location

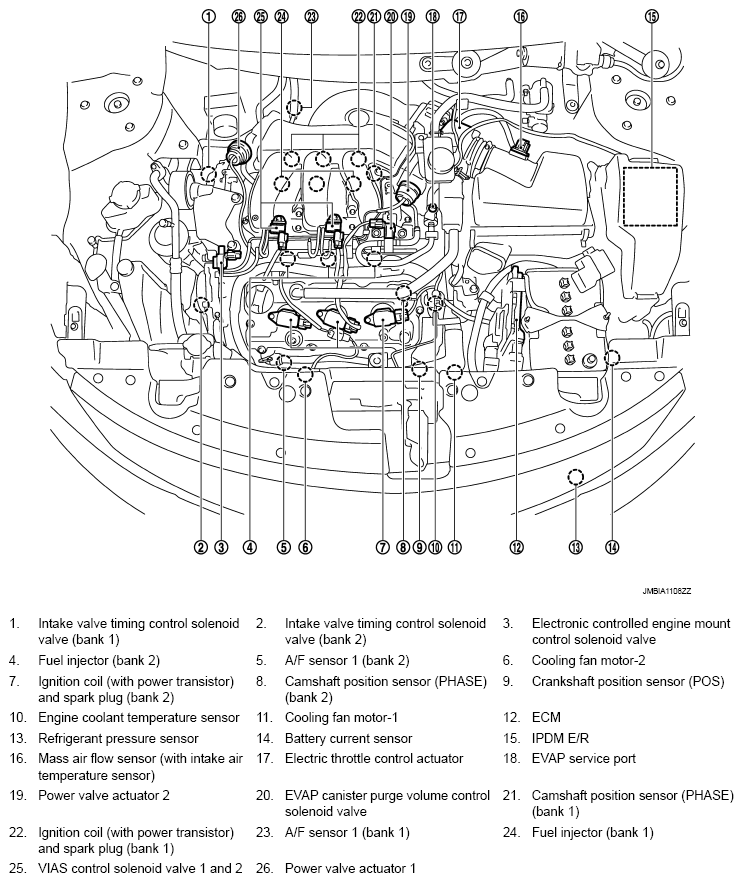

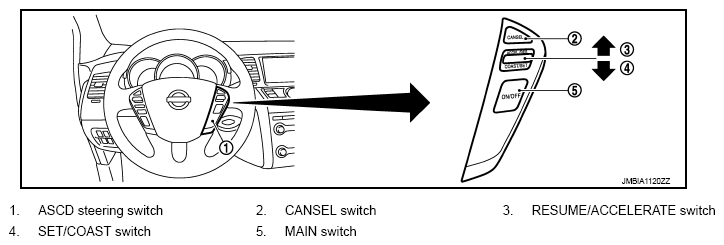

Fig 1: Location Of Variable Induction Air Components (1 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

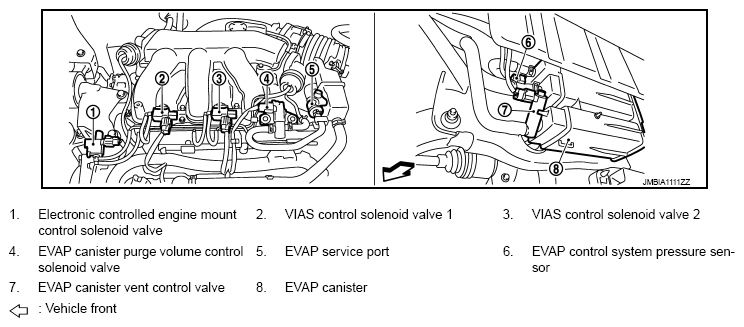

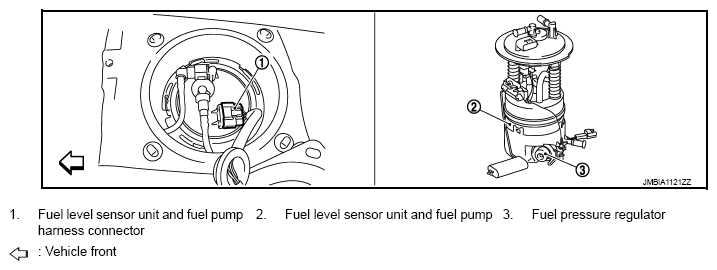

Fig 2: Location Of Variable Induction Air Components (2 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

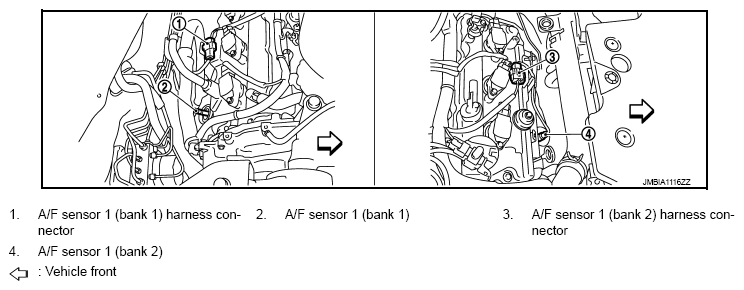

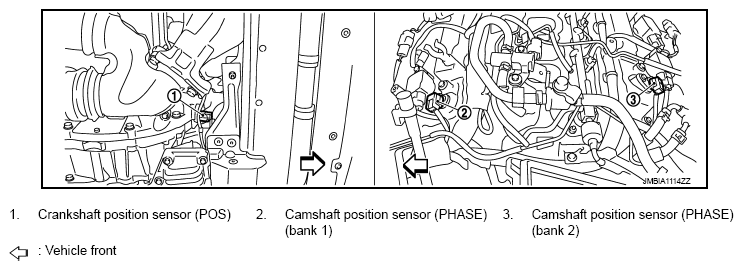

Fig 3: Location Of Variable Induction Air Components (3 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

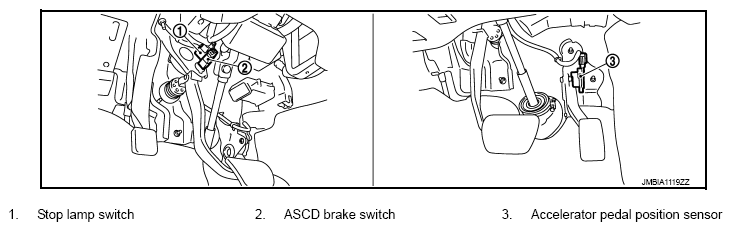

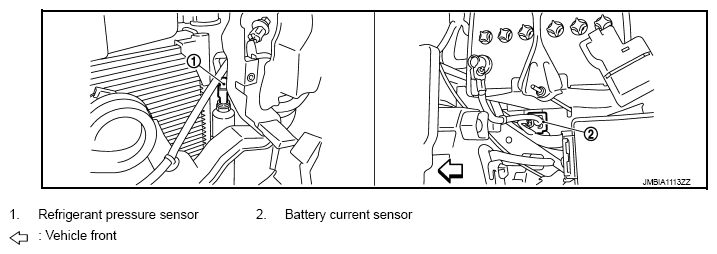

Fig 4: Location Of Variable Induction Air Components (4 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

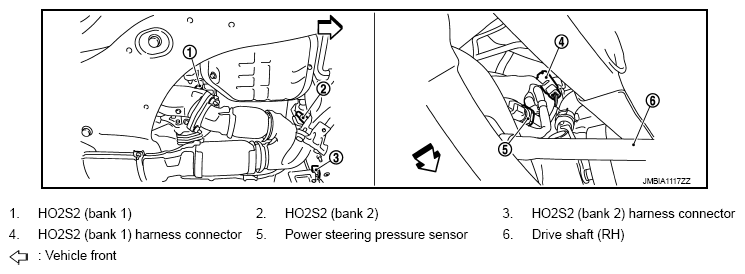

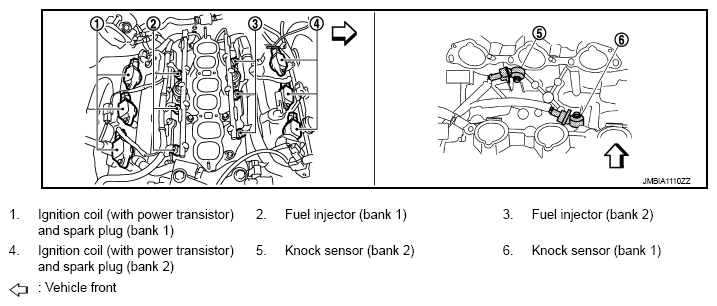

Fig 5: Location Of Variable Induction Air Components (5 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

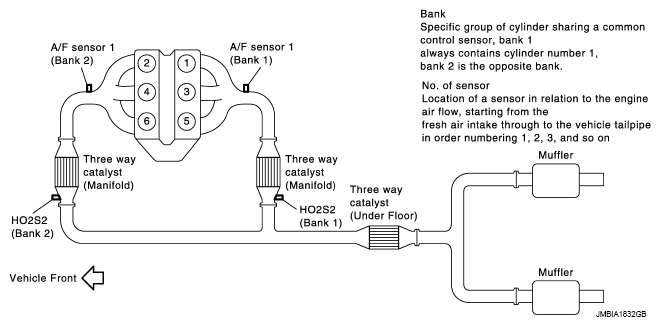

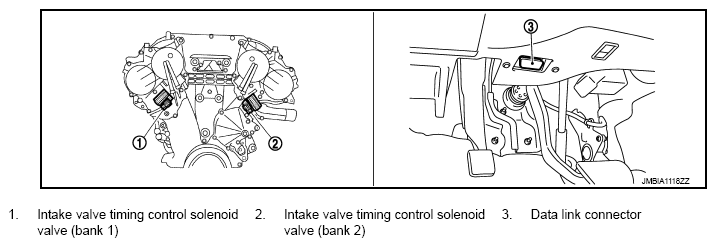

Fig 6: Location Of Variable Induction Air Components (6 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

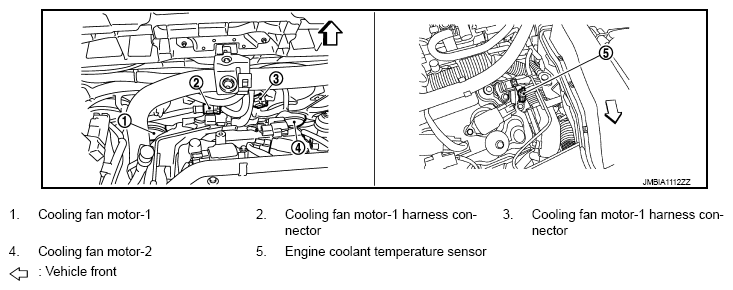

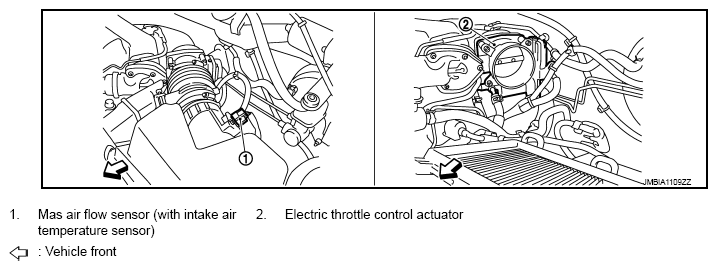

Fig 7: Location Of Variable Induction Air Components (7 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

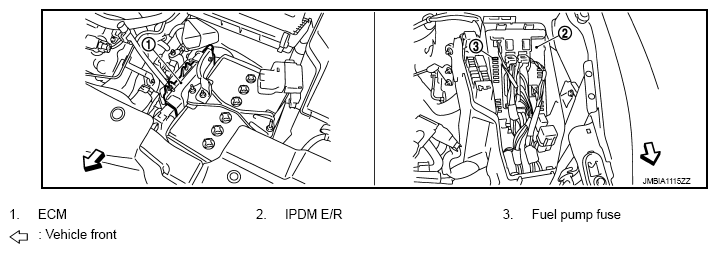

Fig 8: Location Of Variable Induction Air Components (8 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Location Of Variable Induction Air Components (9 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Location Of Variable Induction Air Components (10 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Location Of Variable Induction Air Components (11 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Location Of Variable Induction Air Components (12 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Location Of Variable Induction Air Components (13 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Location Of Variable Induction Air Components (14 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Location Of Variable Induction Air Components (15 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.
