Removal and Installation: Removal

  1. Remove instrument finisher A. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect NATS antenna amp. connector and push-button ignition switch connector.
  3. Disengage the push-button ignition switch fixing pawls by pushing them in the direction of the arrow (1) as shown in the figure.

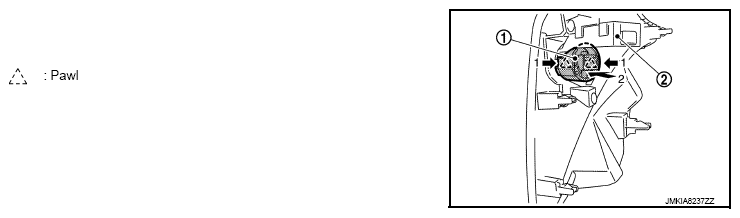

    Fig 1: Locating Push-Button Ignition Switch
    G07052428Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Push push-button ignition switch (1) in the direction of the arrow (2), as shown in the figure, and remove push-button ignition switch from NATS antenna amp (2).
