System - Engine Mechanical&Other

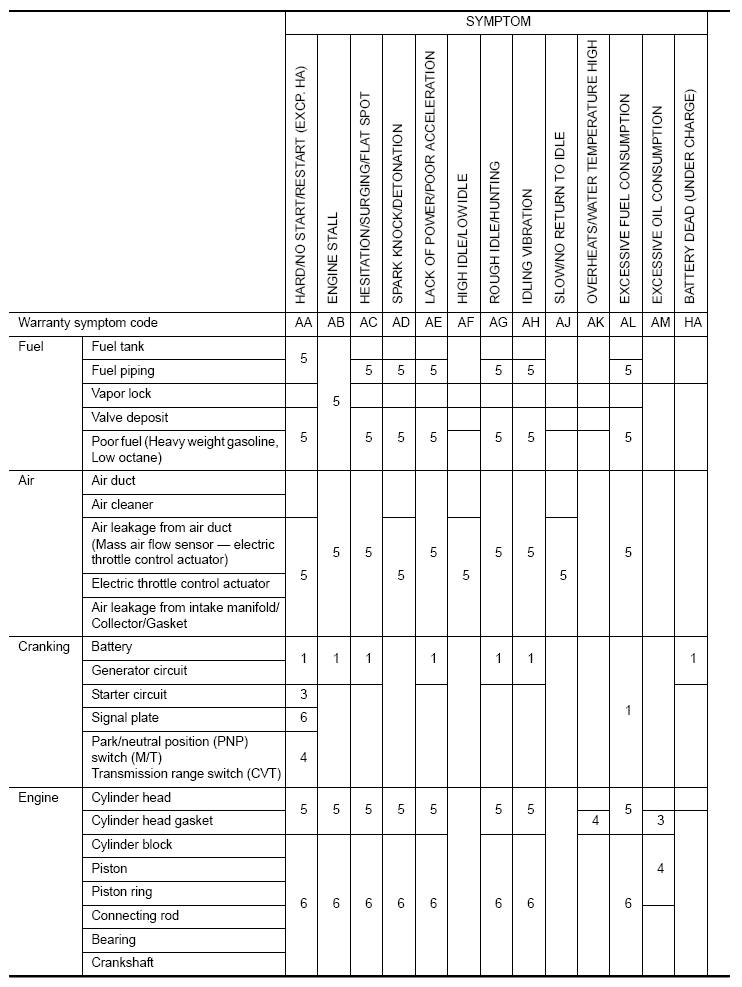

Fig 1: Engine Control System Symptom Matrix Chart - Engine Mechanical & Other (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

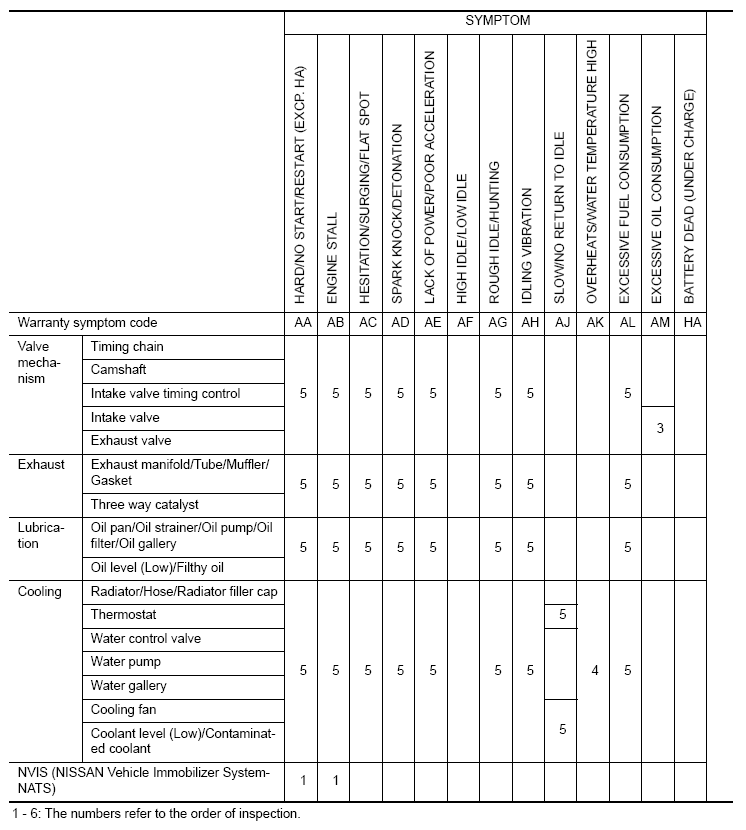

Fig 2: Engine Control System Symptom Matrix Chart - Engine Mechanical & Other (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
