Component Parts Location

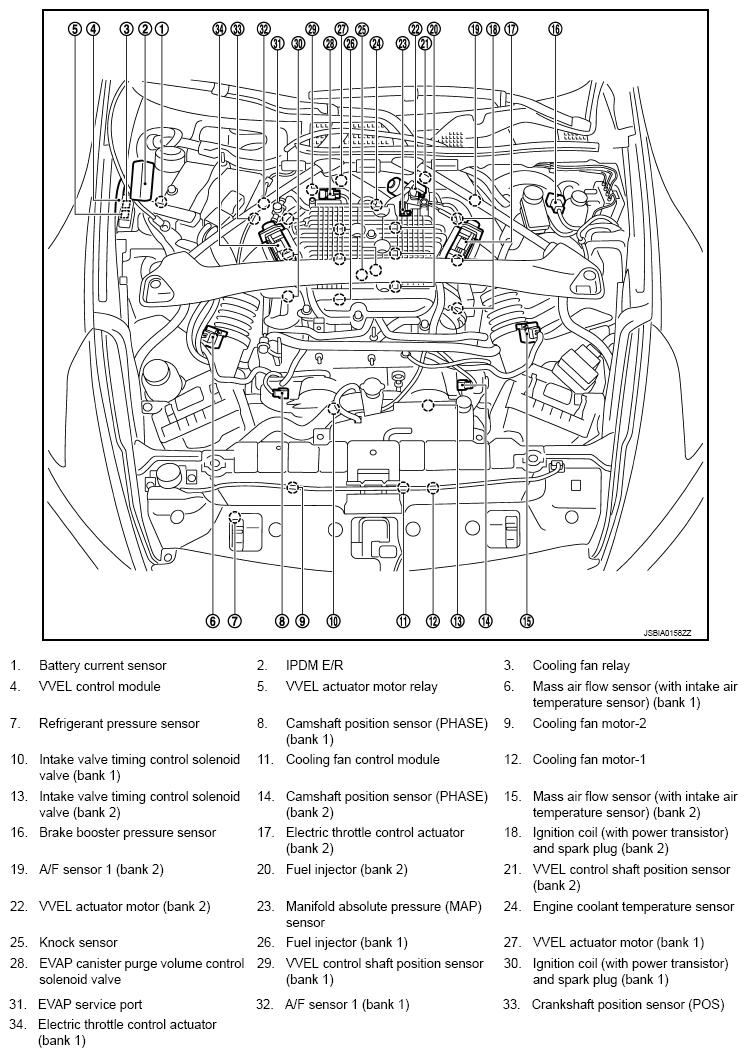

Fig 1: Engine Control System Component Parts Location

G08102532

Courtesy of NISSAN NORTH AMERICA, INC.

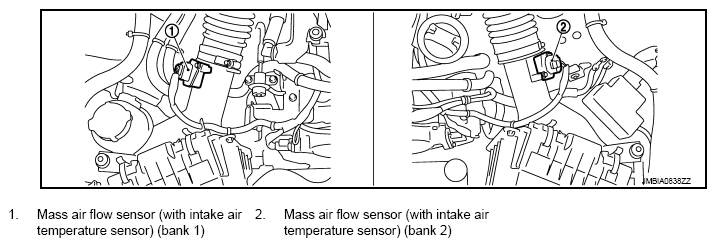

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)

G08102533

Courtesy of NISSAN NORTH AMERICA, INC.

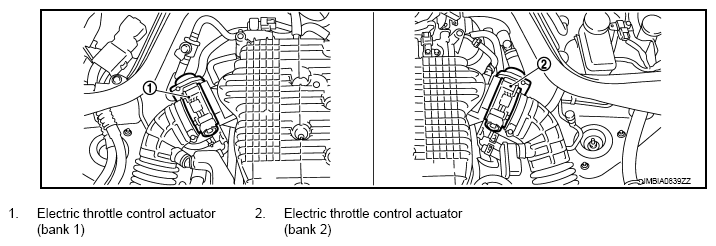

Fig 3: Identifying Electric Throttle Control Actuator On Both Banks

G08102534

Courtesy of NISSAN NORTH AMERICA, INC.

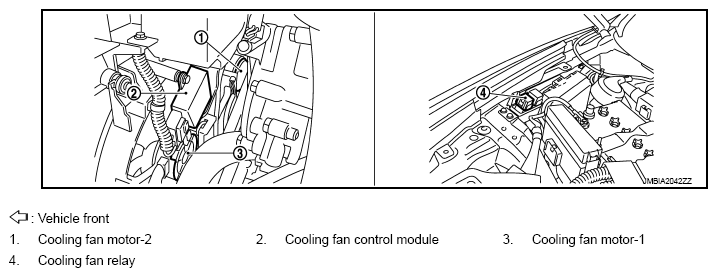

Fig 4: Identifying Cooling Fan Motor, Cooling Fan Control Module And Cooling Fan Relay

G08102535

Courtesy of NISSAN NORTH AMERICA, INC.

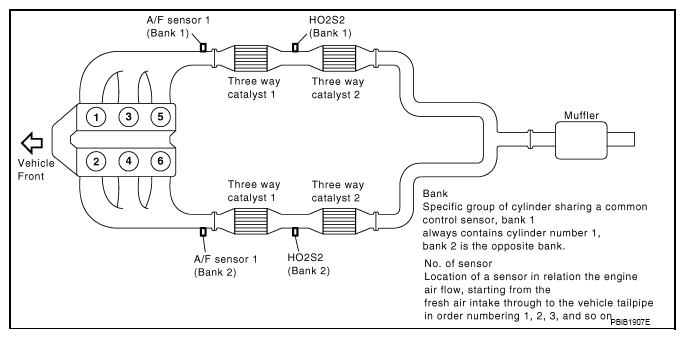

Fig 5: Engine Exhaust Control Component Location

G08102536

Courtesy of NISSAN NORTH AMERICA, INC.

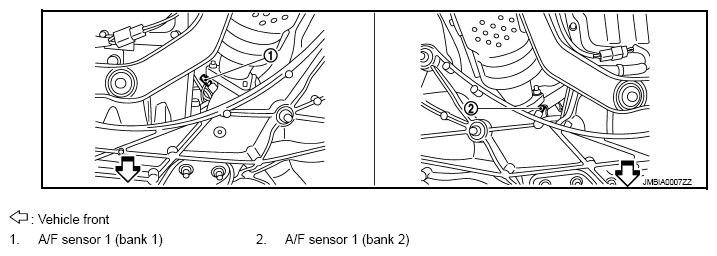

Fig 6: Identifying A/F Sensor On Both Banks

G08102537

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor Harness Connector On Both Banks

G08102538

Courtesy of NISSAN NORTH AMERICA, INC.

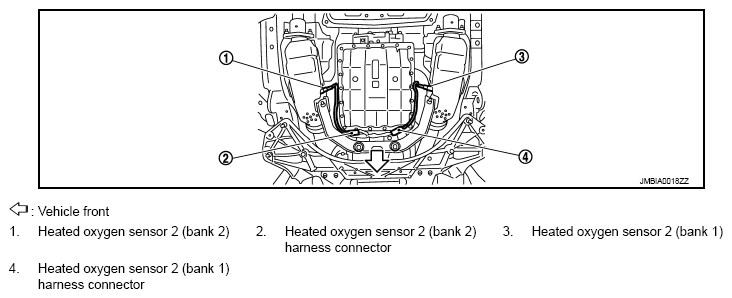

Fig 8: Identifying Heated Oxygen Sensor And Heated Oxygen Sensor Harness Connector On Both Banks

G08102539

Courtesy of NISSAN NORTH AMERICA, INC.

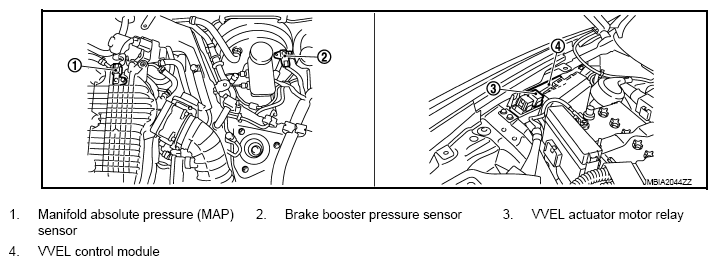

Fig 9: Identifying Manifold Absolute Pressure Sensor, Brake Booster Pressure Sensor And VVEL Control Module

G08102540

Courtesy of NISSAN NORTH AMERICA, INC.

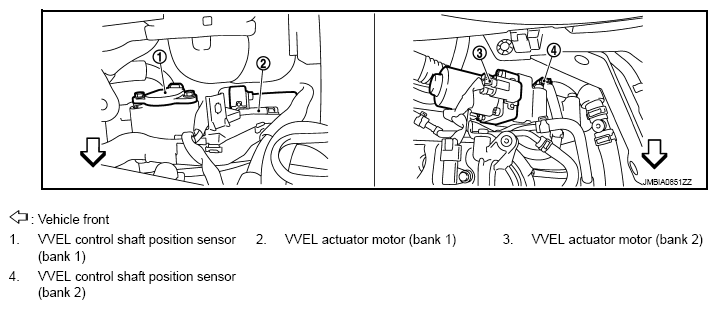

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor On Both Banks

G08102541

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector

G08102542

Courtesy of NISSAN NORTH AMERICA, INC.

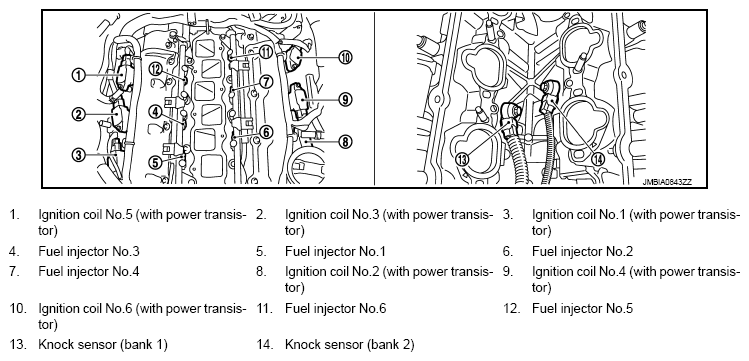

Fig 12: Identifying Ignition Coils And Fuel Injectors

G08102543

Courtesy of NISSAN NORTH AMERICA, INC.

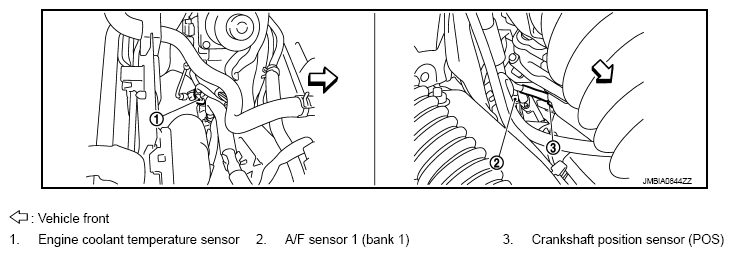

Fig 13: Identifying Engine Coolant Temperature Sensor, A/F Sensor And Crankshaft Position Sensor

G08102544

Courtesy of NISSAN NORTH AMERICA, INC.

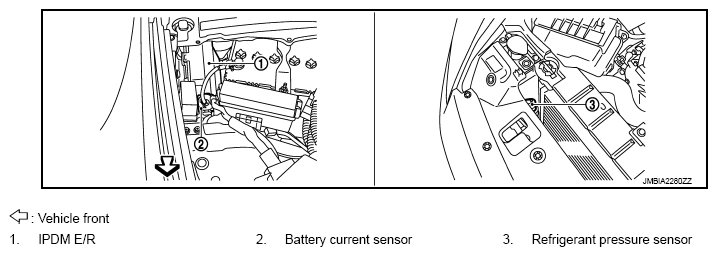

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

G08102545

Courtesy of NISSAN NORTH AMERICA, INC.

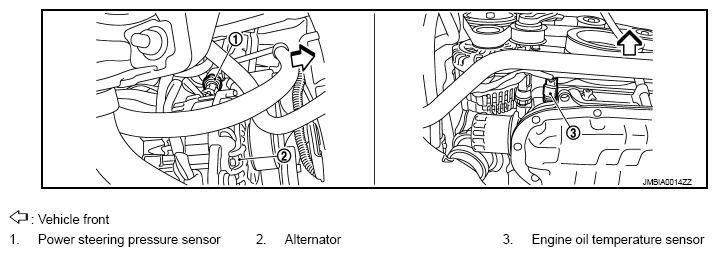

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

G08102546

Courtesy of NISSAN NORTH AMERICA, INC.

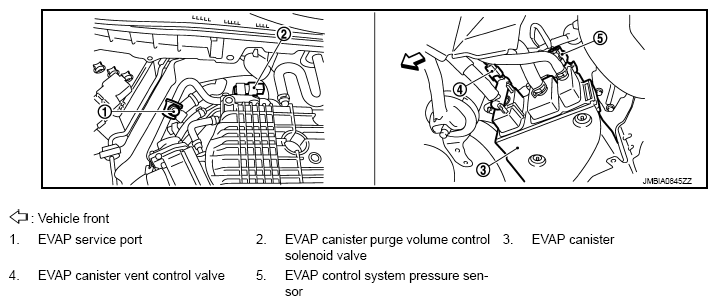

Fig 16: Identifying EVAP Service Port, EVAP Canister And EVAP Canister Vent Control Valve

G08102547

Courtesy of NISSAN NORTH AMERICA, INC.

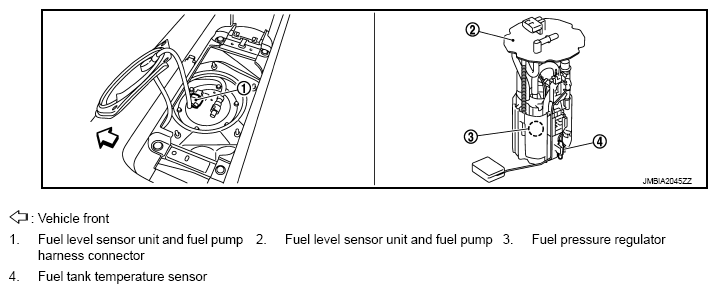

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump, Fuel Pressure Regulator And Fuel Tank Temperature Sensor

G08102548

Courtesy of NISSAN NORTH AMERICA, INC.

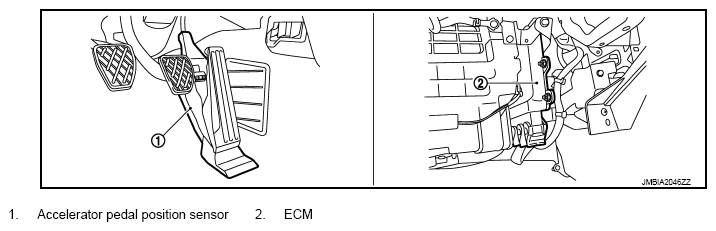

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM

G08102549

Courtesy of NISSAN NORTH AMERICA, INC.

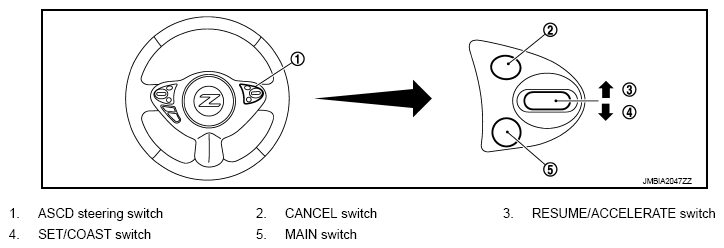

Fig 19: Identifying ASCD Steering Switch, Cancel Switch, Resume/Accelerate Switch And Main Switch

G08102550

Courtesy of NISSAN NORTH AMERICA, INC.

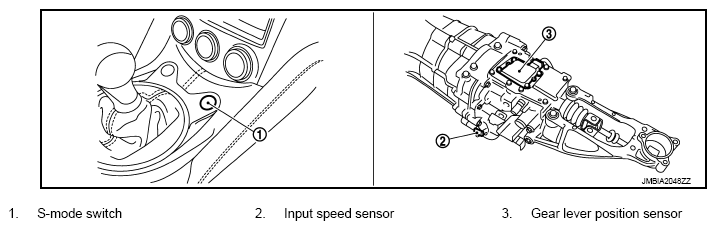

Fig 20: Identifying S-Mode Switch, Input Speed Sensor And Gear Lever Position Sensor

G08102551

Courtesy of NISSAN NORTH AMERICA, INC.

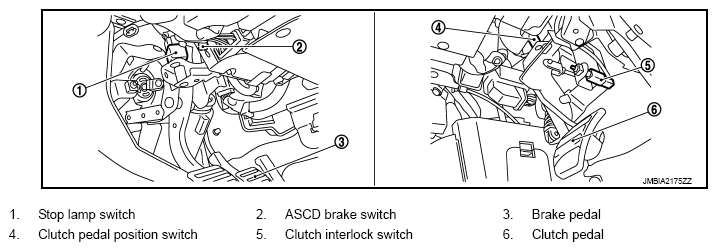

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch, Brake Pedal And Clutch Interlock Switch

G08102552

Courtesy of NISSAN NORTH AMERICA, INC.
