Wiring Diagram - BCM -

For connector terminal arrangements, harness layouts, and alphabets in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

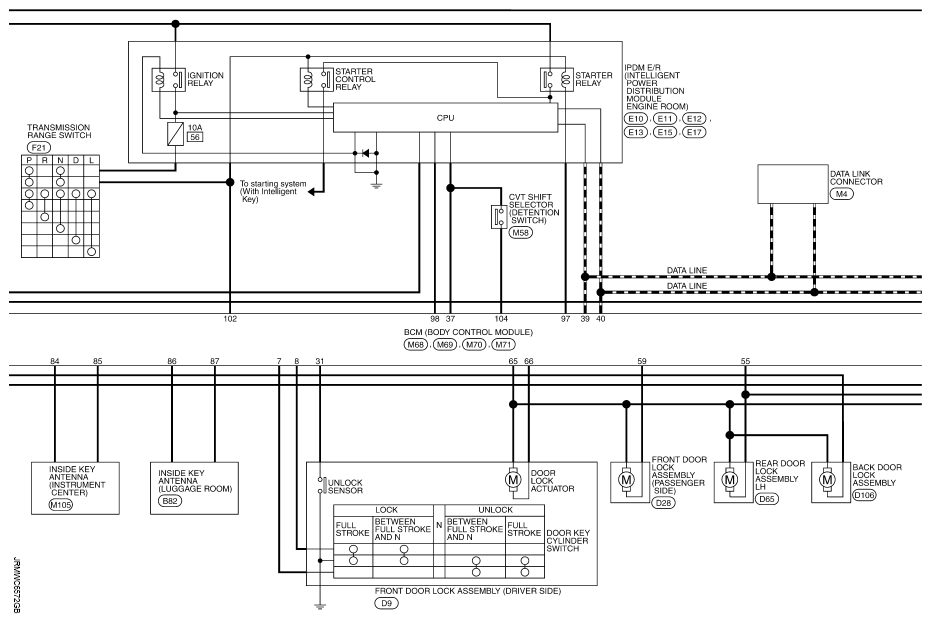

Fig 1: Identifying Body Control Module (With Intelligent Key) Wiring Diagram (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

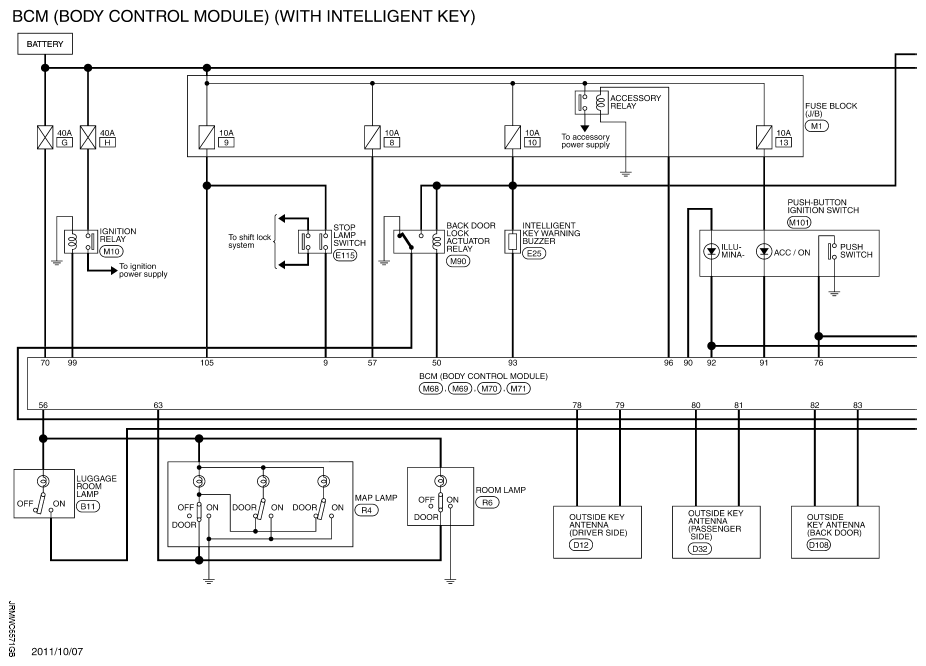

Fig 2: Identifying Body Control Module (With Intelligent Key) Wiring Diagram (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

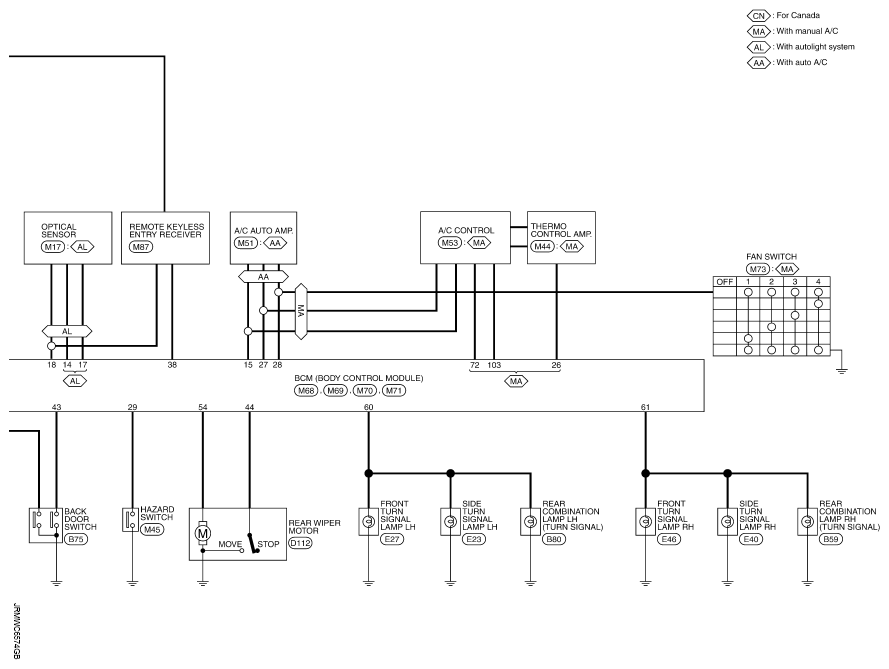

Fig 3: Identifying Body Control Module (With Intelligent Key) Wiring Diagram (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

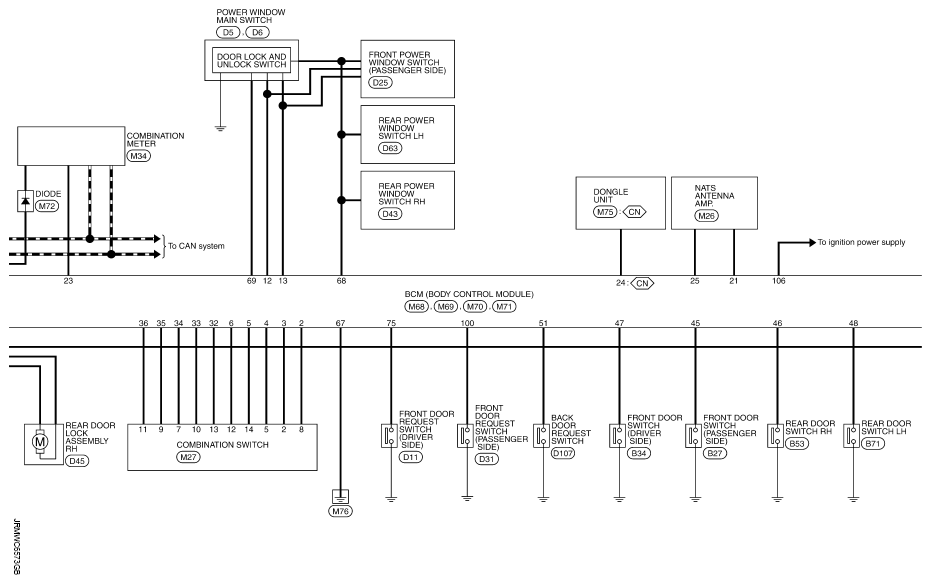

Fig 4: Identifying Body Control Module (With Intelligent Key) Wiring Diagram (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
