BCM (Body Control Module): Schematic

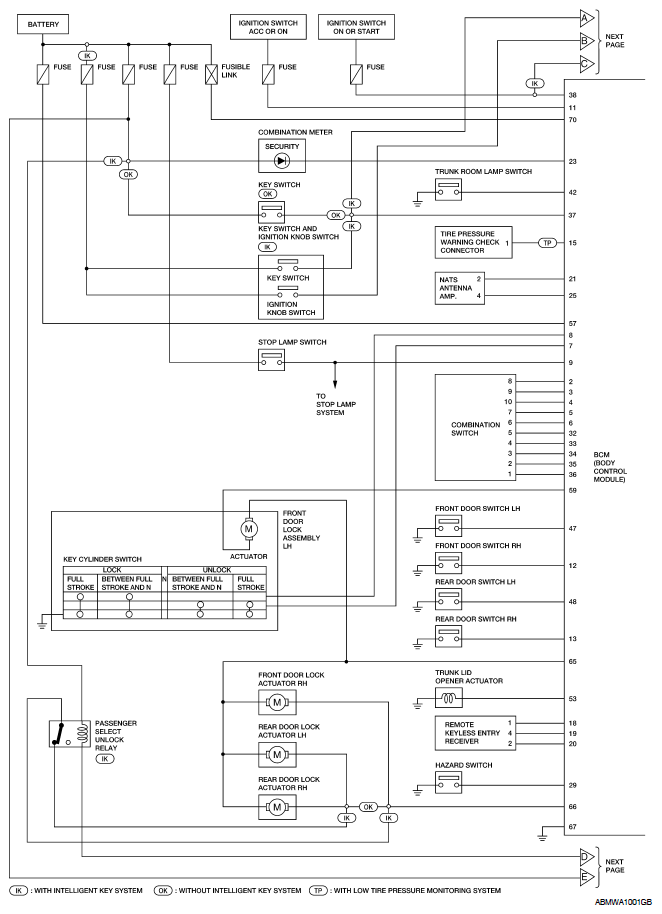

Fig 1: Body Control Module Schematic (1 Of 2)
G07143405Courtesy of NISSAN NORTH AMERICA, INC.

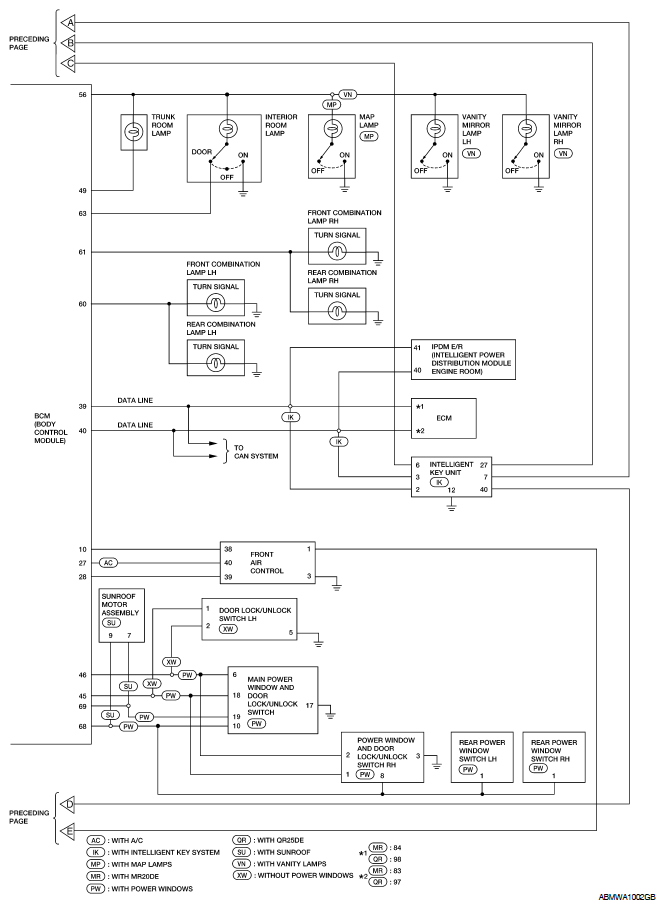

Fig 2: Body Control Module Schematic (2 Of 2)
G07143406Courtesy of NISSAN NORTH AMERICA, INC.
